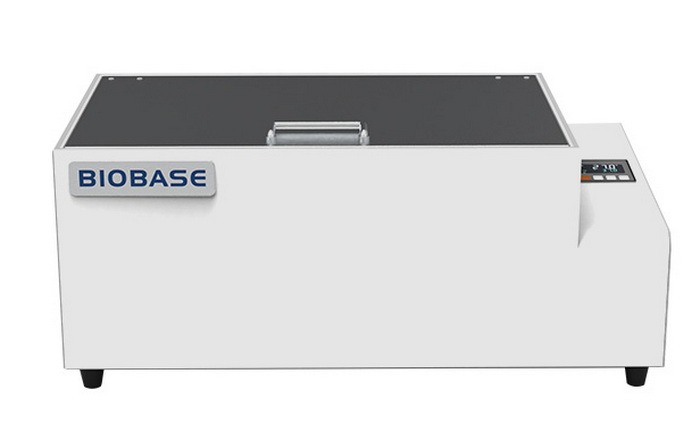

WT-26 | Constant Temperature Water Bath | 22.5L working volume

Key Features

• Precise PID temperature control
• 22.5L inner tank working volume
• Temperature control range from ambient plus 5°C - 100°C
• Durable powder-coated steel outer shell
• Stainless steel inner chamber that is easy to clean
• LCD display showing real-time operating parameters
• Timer range from 0 - 9999 minutes or continuous operation
• Temperature difference calibration
• Temperature deviation calibration function
• Over-temperature alarm function

Product Description

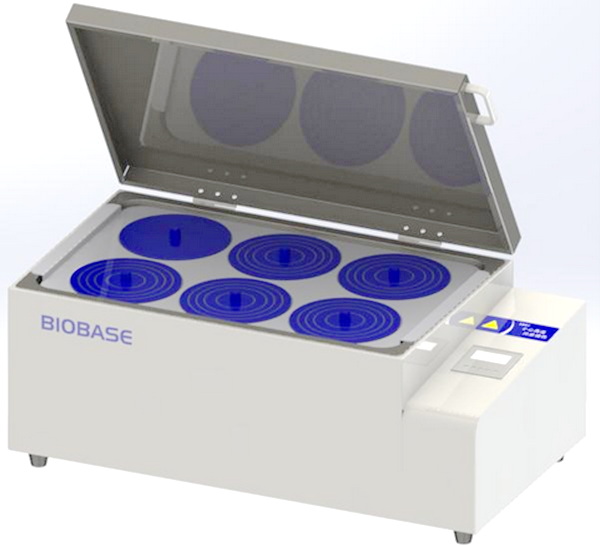

The WT-26 constant temperature water bath features a 22.5L inner tank working volume with precise PID temperature control. It has a durable powder-coated steel outer shell and a stainless steel inner tank that is easy to clean. The inner lid has six round ports with covers providing 37 mm, 58 mm, 79 mm, 100 mm and 120 mm openings.

The WT-26 has a timing range from 0 - 9999 minutes and an LCD display showing real-time operating parameters. It also features temperature difference and temperature deviation calibration and an over-temperature alarm function to prevent overheating.

Specifications

Model number	WT-26
Configuration	6 round ports in 2 rows
Circle dimensions	37 mm, 58 mm, 79 mm, 100 mm, 120 mm
Temperature range	Ambient plus 5°C - 100°C
Temperature fluctuation	±0.5°C
Temperature accuracy	0.1°C
Temperature homogeneity	±0.5°C
Working volume	22.5L
Timing range	0 - 9999 minutes or continuous operation
Timing error	<1%
Power consumption	1500W
Electrical requirements	220VAC±10% | 50 Hz
Lid sizes (ø)	37, 58, 79, 100, 120
Internal dimensions (W x D x H)	500 mm x 300 mm x 200 mm
External dimensions (W x D x H)	665 mm x  364 mm x 281 mm
Weight	15 Kg
