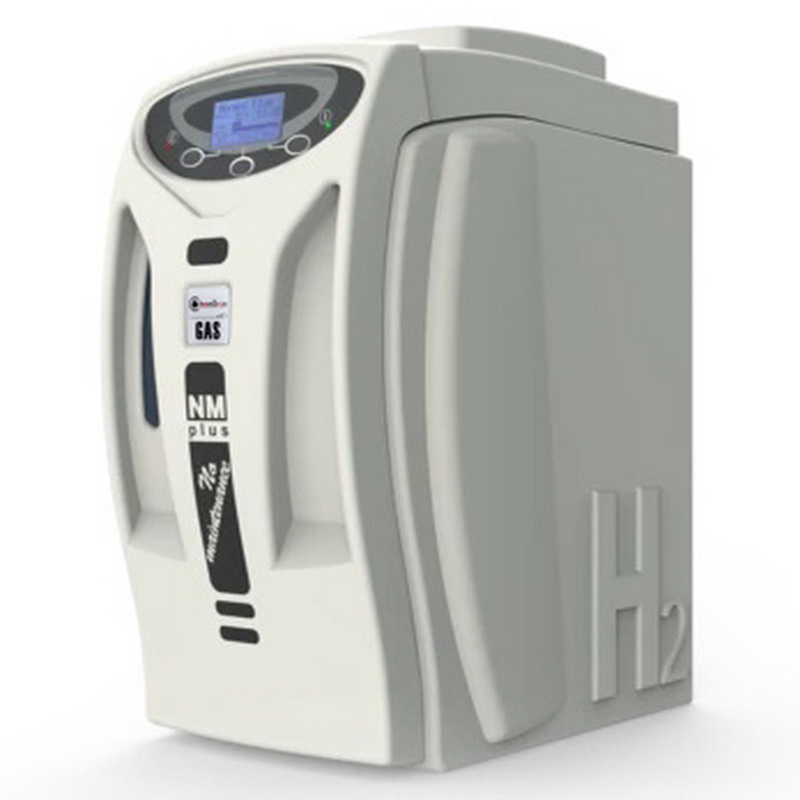

NM Plus | Ultrapure hydrogen gas generators with up to 99.99996% purity (NM Plus Series)

Key Features

• Maintenance-free purification system generates carrier grade hydrogen gas to 99.99996% purity
• Flow rate options from 100 mL/min - 1350 mL/min (please see below)
• No pipeline or bottle changing requirements
• No acid or alkaline solutions used in the hydrogen generation cycle
• Improved chromatographic results. Use of hydrogen as a carrier gas allows lower temperature elution and extended chromatograph column life.
• Advanced software control and safety alarm systems protect personnel. Limited internal volume (<50 mL) provides safer operating conditions compared to cylinders.
• Up to 32 units can be linked together for high volume output
• Automatic flow compensation
• Continuous operation for critical applications

Description

The NM Plus series of hydrogen gas generators produce carrier grade gas of 99.99996% purity for gas chromatography and other critical applications. The use of hydrogen as a carrier gas for gas chromatography provides more rapid separations than with other gases and with a minimum loss in chromatographic efficiency.

The NM Plus series produce hydrogen by forcing distilled or deionised water through an advanced Swiss-made titanium electrolytic cell. Electrolytic dissociation separates the water into its two main components: hydrogen ready for analytical use and oxygen that is released into the air. No acid or  alkaline solutions are used in the hydrogen generation cycle and the patented automatic drying system ensures the maximum level of hydrogen purity.

Safety is a major concern when using hydrogen so substituting the NM Plus for bottle or pipeline sources significantly increases the protection level. Advanced software control and safety alarm systems also protect personnel and a limited internal volume (<50 mL) provides safer operating conditions compared to gas cylinders.

The NM Plus series integrate systems for automatic flow compensation and continuous operation for critical applications. Up to 32 units can be linked together for facilities requiring high volume output.

Instrument Configurations

Model Number	Hydrogen Flow Rate	Hydrogen Purity (%)
NMH2-100 Plus	100 mL/min	99.99996
NMH2-160 Plus	160 mL/min	99.99996
NMH2-250 Plus	250 mL/min	99.99996
NMH2-300 Plus	300 mL/min	99.99996
NMH2-500 Plus	500 mL/min	99.99996
NMH2-600 Plus	600 mL/min	99.99996
NMH2-1000 Plus	1000 mL/min	99.99996
NMH2-1350 Plus	1350 mL/min	99.99996

Specifications

Manufacturer	ChemTron
Model series	NM Plus
Flow rate options	100 mL/min - 1350 ml/min
Purity	99.99996%
Display	Touch screen displaying operating parameters, system status and alarms
LED indicators	Power ON/OFF, system ready and errors
Membrane	Polymer electrolyte membrane
Dryer	Cold dual dynamic regeneration system
Maximum outlet pressure	11 bar (160 psig)
Internal volume	<50 mL at maximum pressure
Water quality	Deionised or demineralised (<10 uS)
Instrument integration	Up to 32 units can be connected in series for high volume gas output
Connections	1/8" Swagelok
Power requirements	220 - 240 V/ 50 Hz
Dimensions (W x D x H)	230 mm x 355 mm x 410 mm
Weight	20 Kg
Interface	RS232/RS485 and USB: PC control
Certifications	CE, CSA and FCC
