385 Series | Strike 385 rotary evaporator series with vertical glass, slanting glass or dry ice evaporation options
Key Features
- Up to 2 litre evaporating and collecting flask capacity
- Four different styles of condenser
- Choice of standard glass or plastic-coated glass evaporating and condensing flasks
- Two bath fluid modes | Up to 85°C with water: Up to 185°C with oil
- Removable safety shield
- Adjustable head angle from 0 - 15°
- Maintenance-free and chemically-resistant PTFE and carbon graphite seals create a vacuum-tight and anti-corrosive environment for solvent recovery
- Powered glassware lifting system with safety release. Can be lifted with or without protective shield in place.
- Monochromatic LCD touch screen providing real-time display of basic operating parameters such as bath temperature, rotation speed and working protocol
- 5 litre aluminium thermostatic heating tank with PTFE coating that can be removed for emptying
- Rotation speed from 20 rpm to 280 rpm
- Protocol saving and retrieving (up to 21 x 5 step methods)
- Timer with range from 1 - 999 minutes in 1 minute increments
Description
The Strike 385 rotary evaporator from ChemTron combines advanced functionality with safety to provide the ideal instrument for the small-scale recovery of solvents in a laboratory environment. Key safety features to protect end-users include:
- A safety shield over the 5 litre aluminium PTFE-coated heating tank
- Vacuum-tight and corrosion-resistant seals without gaskets to prevent solvent leakage
- Thermostatic heating bath with overheating and dry running protection
- Screw-on evaporation flasks to create a leak-proof linkage between the flask and the through pipe to the unit's condenser
- Powered glassware positioning system with safety release in case of power failure
- Adjustable safety temperature
All functions of the Strike 385 are controlled through an LCD touch screen that provides a real-time display of operating parameters such as bath temperature and rotation speed. Up to 21 frequently-used protocols can be stored and if one is selected its name will appear on the LCD display. The Strike 385 can also be controlled by monitoring the fume temperature with an optional PT100 probe.
Heating is provided by a 5 litre capacity aluminium thermostatic heating bath that is coated with PTFE. It can be removed for emptying and cleaning and has a planar heater on the bottom to protect the operator from electric shock. Solutions in the bath can be heated from ambient to 85°C with water and 185°C with oil.
The rotation speed for the Strike 385 can be set between 28 rpm and 280 rpm and the unit features a timer with a range from 1 minute to 999 minutes in 1 minute increments. Once the time is complete the instrument stops and the flask is lifted out of the heating tank. The rotating head has an adjustable low stop sensor that assists in positioning the evaporation flask at the desired level in the tank.

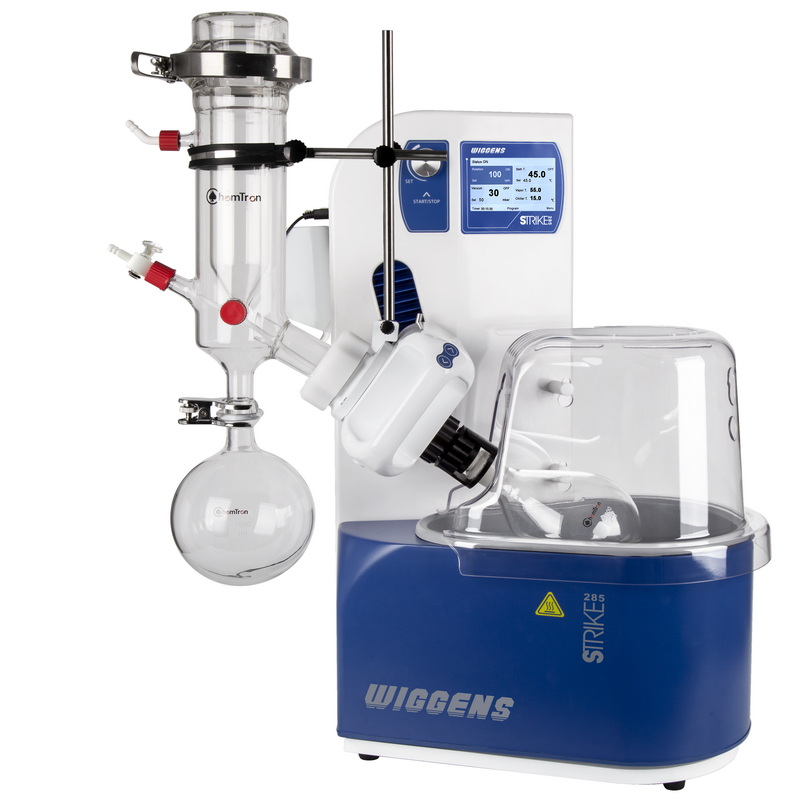

Feature differences between Strike 285 and 385 models
- Lockable touch screen
- Up to 21 frequently used methods can be stored. Each method can store five steps.
- Automatic multi-stage distillation process
- Timed distillation function
- High vapour temperature protection, low vapour temperature protection and vapour temperature range settings
Instrument Options
The following configurations of the Strike 385 are available:
Standard Glassware
Order Number | Model Number | Type |

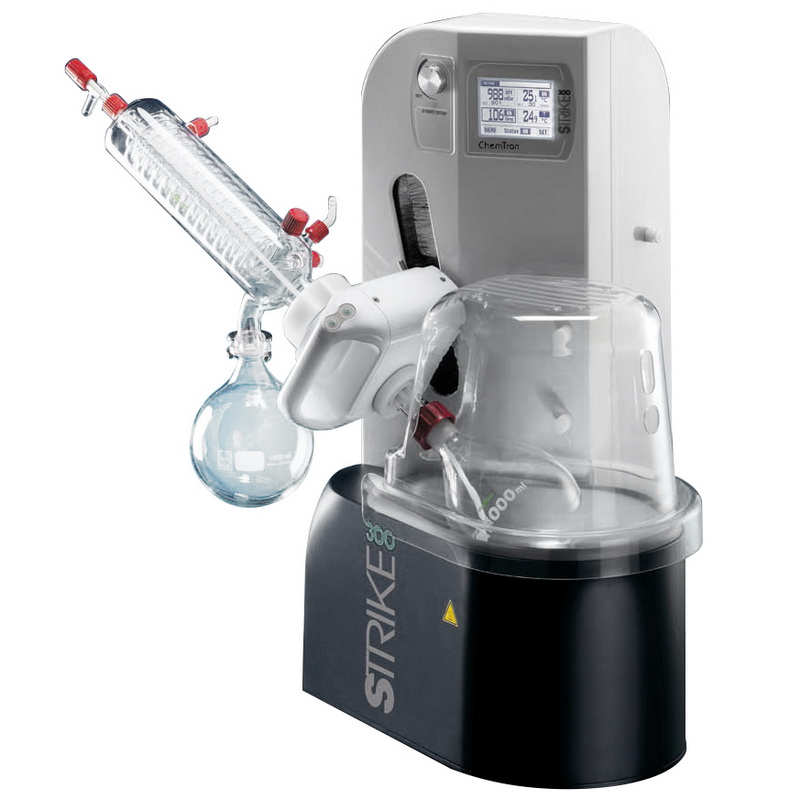

SQED160113 | STRIKE 385 M1 | Slanting glassware |
SQED160112 | STRIKE 385 M2 | Vertical glassware | vapour sinking |

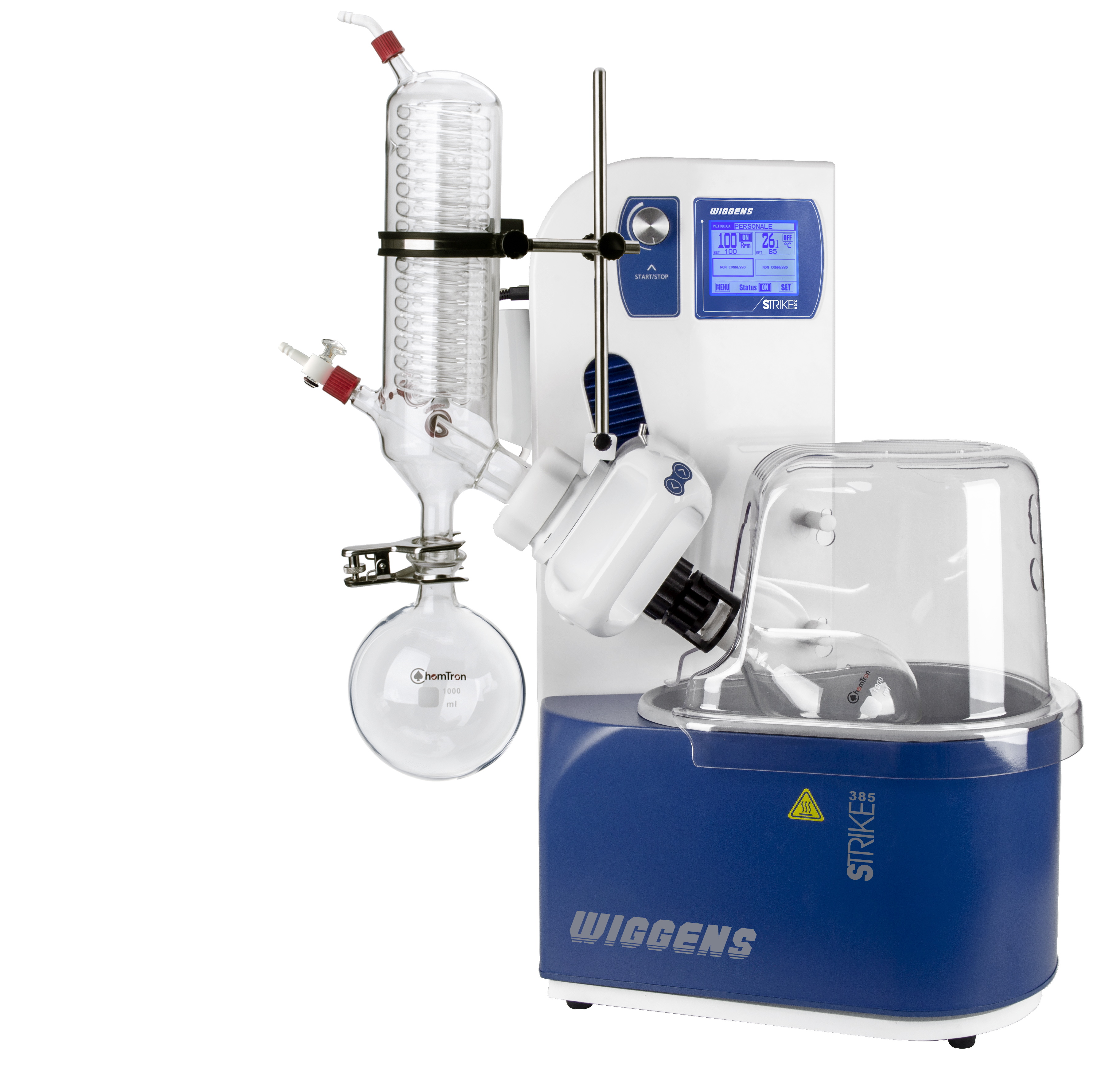

SQED160111 | STRIKE 385 M3 | Vertical glassware | vapour rising |
Plastic-coated safety glassware
Order Number | Model Number | Type |
SQED160419 | STRIKE 385 M4 | Slanting glassware |
SQED160418 | STRIKE 385 M5 | Vertical glassware | vapour sinking |
SQED160417 | STRIKE 385 M6 | Vertical glassware | vapour rising |
SQED160420 | STRIKE 385 M7 | Dry ice condensation type |
Condensing units
The following condensing units are available for the seven models of the Strike 385:
Part Number | Item Description |
SQEF059799 | Borosilicate glass condensing unit with internal coil, glass, slanting version |
SQEF059796 | Borosilicate glass condensing unit with internal coil, glass, vertical version, vapour sinking |
SQEF059794 | Borosilicate glass condensing unit with internal coil, glass, vertical version, vapour rising |
SQEF059798 | Borosilicate glass condensing unit with internal coil, plastic-coated glass, slanting version |
SQEF059797 | Borosilicate glass condensing unit with internal coil, plastic-coated glass, vertical version, vapour sinking |
SQEF059792 | Borosilicate glass condensing unit with internal coil, plastic-coated glass, vertical version, vapour rising |
SQEF059793 | Dry ice condensation type |
More Information
The following items are included with the purchase of a Strike 385 base model and condensing unit:
Aluminium heating tank | |
Cooling water tubing | |
Safety shield | |
Steam through pipe | |
Connectors | |
Power cable | |
SQFY015934 | Borosilicate glass evaporating flask, 29/32, 1000 mL capacity |
SQUA015796 | Round collecting flask with spherical joint, 1000 mL capacity |
FLMM016694 | Tightening clamp for collecting flask |
Optional Accessories
Part Number | Item Description |
Evaporating Flasks (Glass) | |
SQFY051171 | Pear-shaped borosilicate glass evaporating flask, NS29/32, 50 mL capacity |
SQFY015948 | Pear-shaped borosilicate glass evaporating flask, NS29/32, 100 mL capacity |
SQFY015949 | Pear-shaped borosilicate glass evaporating flask, NS29/32, 250 mL capacity |
SQFY015941 | Pear-shaped borosilicate glass evaporating flask, NS29/32, 500 mL capacity |
SQFY015937 | Pear-shaped borosilicate glass evaporating flask, NS29/32, 1000 mL capacity |
SQFY015946 | Pear-shaped borosilicate glass evaporating flask, NS29/32, 2000 mL capacity |
Evaporating Flasks (Plastic-coated glass) | |
SQFY051171S | Pear-shaped borosilicate glass evaporating flask, plastic-coated, NS29/32, 50 mL capacity |
SQFY015948S | Pear-shaped borosilicate glass evaporating flask, plastic-coated, NS29/32, 100 mL capacity |
SQFY015949S | Pear-shaped borosilicate glass evaporating flask, plastic-coated, NS29/32, 250 mL capacity |
SQFY015941S | Pear-shaped borosilicate glass evaporating flask, plastic-coated, NS29/32, 500 mL capacity |
SQFY015937S | Pear-shaped borosilicate glass evaporating flask, plastic-coated, NS29/32, 1000 mL capacity |
SQFY015946S | Pear-shaped borosilicate glass evaporating flask, plastic-coated, NS29/32, 2000 mL capacity |
Collecting Flasks | |
SQUA015797 | Round borosilicate glass collecting flask with spherical joint, 250 mL capacity |
SQUA015798 | Round borosilicate glass collecting flask with spherical joint, 500 mL capacity |
SQUA015796 | Round borosilicate glass collecting flask with spherical joint, 1000 mL capacity |
SQUA015792 | Round borosilicate glass collecting flask with spherical joint, 2000 mL capacity |
SQUA015788 | Round plastic-coated borosilicate glass collecting flask with spherical joint, 250 mL capacity |
SQUA015791 | Round plastic-coated borosilicate glass collecting flask with spherical joint, 500 mL capacity |
SQUA015789 | Round plastic-coated borosilicate glass collecting flask with spherical joint, 1000 mL capacity |
SQUA015790 | Round plastic-coated borosilicate glass collecting flask with spherical joint, 2000 mL capacity |
Specifications
Manufacturer | ChemTron |
Model number | Strike 385 (see configuration options below) |
Glassware | Standard glass or plastic-coated glass |
Rotation speed | 20 rpm - 280 rpm |
Display | 90 mm monochromatic LCD touch screen |
Sealing | PTFE and carbon graphite seals |
Connection | Coupling ring and evaporation flask ejector |
Bath temperature | 85°C with water | 180°C with oil |
Bath heater | 1400 W |
Bath capacity | 5 litres |
Temperature stability | ±2°C |
Timer | 0 to 99 hours and 59 minutes |
Operating range | 5°C - 40°C |
Relative humidity | 50% at 40°C
|
Bath material | Moulded aluminium tank with PTFE coating |
Left/right moving distance | 90 mm |
Draining | Removable bath for emptying |
Stroke displacement | 130 mm, adjustable and can be stopped in any position |
Head angle adjustment | 0 ~ 15° |
Cooling surface | 1500 cm² |
Evaporating flask capacity | Standard: 1000 mL | Optional: 50 mL to 2000 mL |
Collecting flask capacity | Standard: 1000 mL | Optional: 50 mL to 2000 mL |
Programmable | Up to 21 frequently used methods can be stored. Each method can store five steps. |
Weight | Vertical version: 26.5 Kg |
Slanting version: 26 Kg | |
Dimensions | Slanting version: 690 mm x 790 mm x 430 mm |
Vertical version: 690 mm x 700 mm x 430 mm | |
Power requirements | 230 VAC: 50 Hz |
