285 Series | Strike 285 rotary evaporator series with vertical glass, slanting glass or dry ice evaporation options

Key Features

• Up to 2 litre evaporating and collecting flask capacity
• Four different styles of condensers
• Choice of standard glass or plastic-coated glass condensing units and evaporating and condensing flasks
• Two bath fluid modes | Up to 85°C with water: Up to 185°C with oil
• Removable safety shield
• Adjustable head angle from 0 - 15°
• Maintenance-free and chemically-resistant PTFE and carbon graphite seals create a vacuum-tight and anti-corrosive environment for solvent recovery
• Powered glassware lifting system with safety release. Operate with or without the safety shield in place.
• Monochromatic LCD touch screen provides real-time display of basic operating parameters such as bath temperature, rotation speed, vacuum, vapor and condenser cooling water temperature
• 5 litre aluminium thermostatic heating bath with PTFE coating that can be removed for emptying
• Rotation speed from 20 rpm to 300 rpm
• Timer with range from 0 - 99 hours and 59 minutes in 1 minute increments

Description

The Strike 285 rotary evaporator series from ChemTron combines advanced functionality with safety to provide the ideal instrument for the small-scale recovery of solvents in a laboratory environment. Key safety features to protect end-users include:

• A safety shield over the 5 litre aluminium PTFE-coated heating tank
• Vacuum-tight and corrosion-resistant seals without gaskets to prevent solvent leakage
• Thermostatic heating bath with overheating and dry running protection
• Screw-on evaporation flasks to create a leak-proof linkage between the flask and the through pipe to the unit's condenser
• Powered glassware positioning system removes flask from the heating bath and is fitted with a safety release in case of power failure
• Adjustable safety temperature

All functions of the Strike 285 series are controlled through an LCD touch screen that provides a real-time display of operating parameters such as bath temperature and rotation speed. The Strike 285 series can also be controlled by monitoring the fume temperature with an optional PT100 probe.

Heating is provided by a 5 litre capacity aluminium thermostatic heating bath that is coated with PTFE. It can be removed for emptying and cleaning and has a planar heater on the bottom to protect the operator from electric shock. Solutions in the bath can be heated from ambient to 85°C with water and 185°C with oil.

The rotation speed for the Strike 285 series can be set between 20 rpm and 300 rpm and the unit features a timer with a range from 0 - 99 hours and 59 minutes in 1 minute increments. Once the time is complete the instrument stops and the flask is lifted out of the heating bath. The rotating head has an adjustable low stop sensor that assists in positioning the evaporation flask at the desired level in the thermostatic tank.

Instrument Options

The following configurations of the Strike 285 are available:

Standard Glassware

Order Number	Model Number	Type

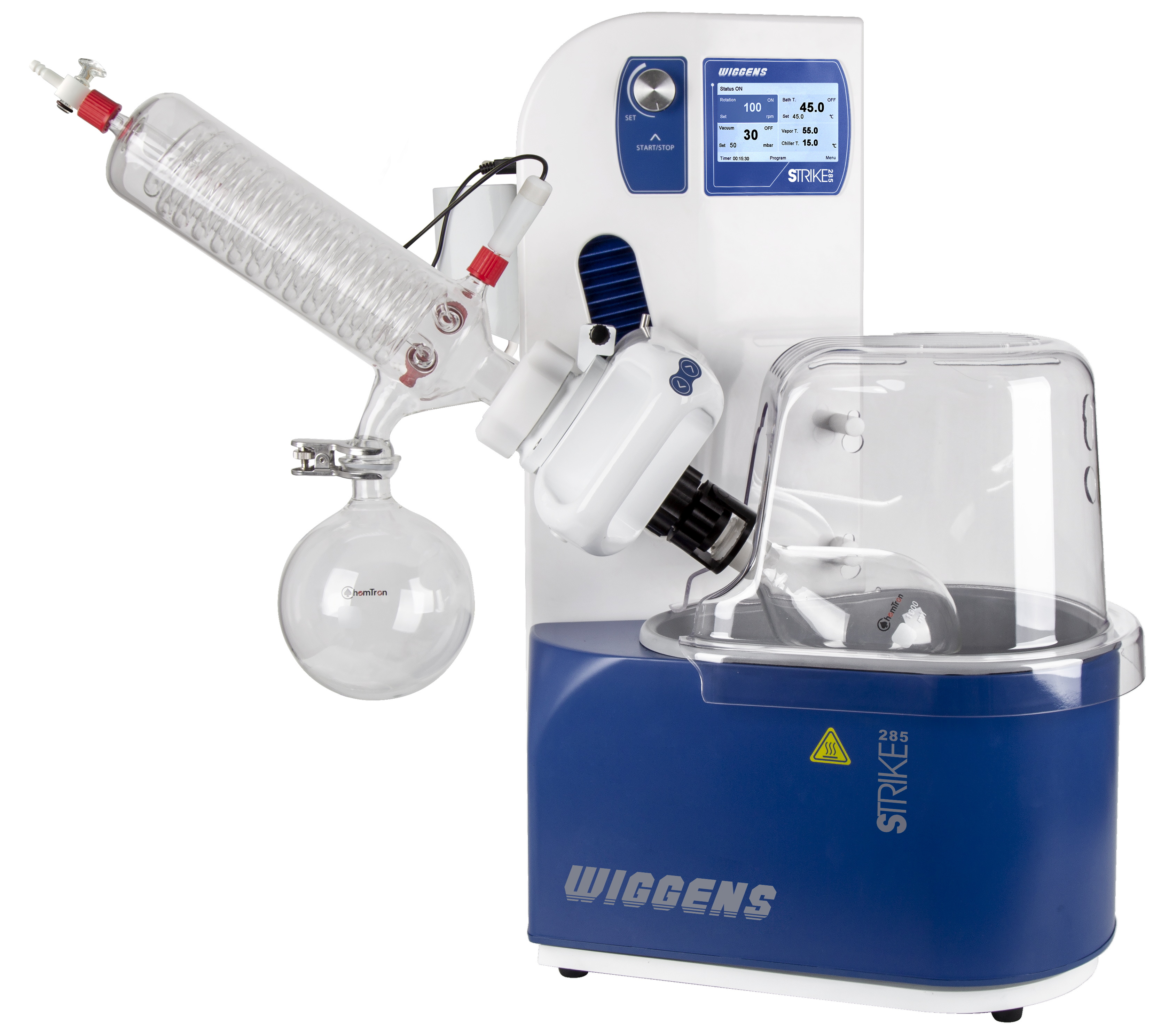

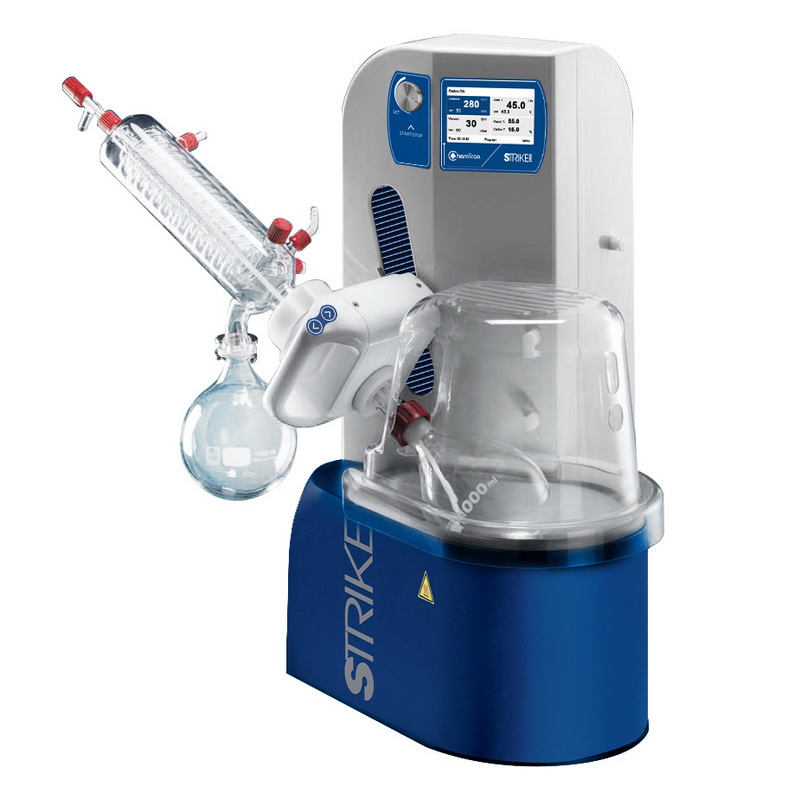

SQED158113	STRIKE 285 M1	Slanting glassware
SQED158112	STRIKE 285 M2	Vertical glassware | vapour sinking

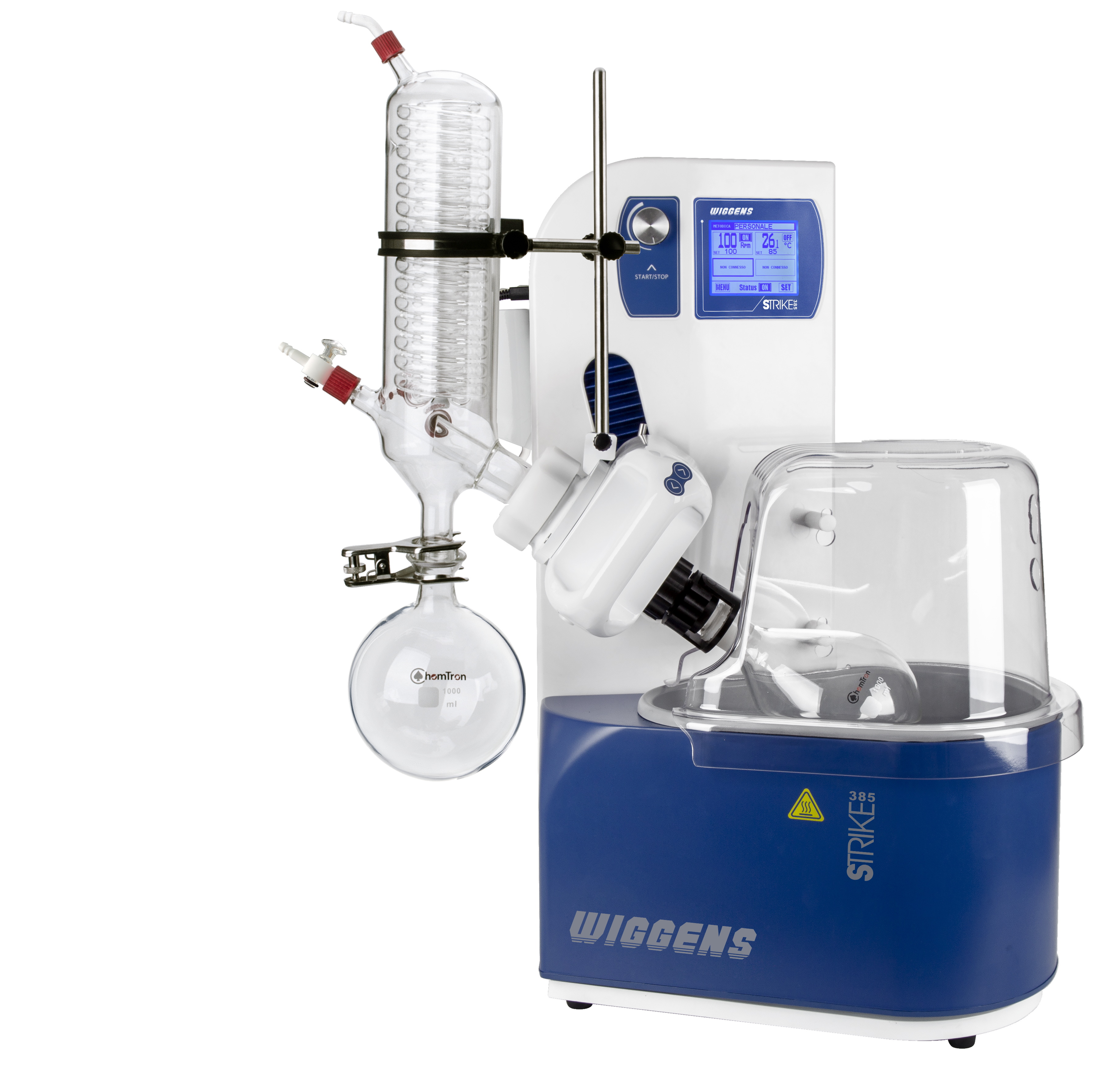

SQED158111	STRIKE 285 M3	Vertical glassware | vapour rising

Plastic-coated safety glassware

Order Number	Model Number	Type
SQED158419	STRIKE 285 M4	Slanting glassware
SQED158418	STRIKE 285 M5	Vertical glassware | vapour sinking
SQED158417	STRIKE 285 M6	Vertical glassware | vapour rising
SQED158420	STRIKE 285 M7	Dry ice condensation type

Condensing units

The following condensing units are available for the seven models of the Strike 285:

Part Number	Item Description
SQEF059799	Borosilicate glass condensing unit with internal coil, glass, slanting version
SQEF059796	Borosilicate glass condensing unit with internal coil, glass, vertical version, vapour sinking
SQEF059794	Borosilicate glass condensing unit with internal coil, glass, vertical version, vapour rising
SQEF059798	Borosilicate glass condensing unit with internal coil, plastic-coated glass, slanting version
SQEF059797	Borosilicate glass condensing unit with internal coil, plastic-coated glass, vertical version, vapour sinking
SQEF059792	Borosilicate glass condensing unit with internal coil, plastic-coated glass, vertical version, vapour rising
SQEF059793	Dry ice condensation type

More Information

The following items are included with the purchase of a Strike 285 base model and condensing unit:

Part Number	Item Description
	Aluminium heating tank
	Cooling water tubing
	Safety shield
	Steam through pipe
	Connectors
	Power cable
SQFY015934	Borosilicate glass evaporating flask, NS29/32, 1000 mL capacity
SQUA015796	Round collecting flask with spherical joint, 1000 mL capacity
FLMM016694	Tightening clamp for collecting flask

Optional Accessories

Part Number	Item Description
Evaporating Flasks (Glass)
SQFY051171	Pear-shaped borosilicate glass evaporating flask, NS29/32, 50 mL capacity
SQFY015948	Pear-shaped borosilicate glass evaporating flask, NS29/32, 100 mL capacity
SQFY015949	Pear-shaped borosilicate glass evaporating flask, NS29/32, 250 mL capacity
SQFY015941	Pear-shaped borosilicate glass evaporating flask, NS29/32, 500 mL capacity
SQFY015937	Pear-shaped borosilicate glass evaporating flask, NS29/32, 1000 mL capacity
SQFY015946	Pear-shaped borosilicate glass evaporating flask, NS29/32, 2000 mL capacity
Evaporating Flasks (Plastic-coated glass)
SQFY051171S	Pear-shaped borosilicate glass evaporating flask, plastic-coated, NS29/32, 50 mL capacity
SQFY015948S	Pear-shaped borosilicate glass evaporating flask, plastic-coated, NS29/32, 100 mL capacity
SQFY015949S	Pear-shaped borosilicate glass evaporating flask, plastic-coated, NS29/32, 250 mL capacity
SQFY015941S	Pear-shaped borosilicate glass evaporating flask, plastic-coated, NS29/32, 500 mL capacity
SQFY015937S	Pear-shaped borosilicate glass evaporating flask, plastic-coated, NS29/32, 1000 mL capacity
SQFY015946S	Pear-shaped borosilicate glass evaporating flask, plastic-coated, NS29/32, 2000 mL capacity
Collecting Flasks
SQUA015797	Round borosilicate glass collecting flask with spherical joint, 250 mL capacity
SQUA015798	Round borosilicate glass collecting flask with spherical joint, 500 mL capacity
SQUA015796	Round borosilicate glass collecting flask with spherical joint, 1000 mL capacity
SQUA015792	Round borosilicate glass collecting flask with spherical joint, 2000 mL capacity
SQUA015788	Round plastic-coated borosilicate glass collecting flask with spherical joint, 250 mL capacity
SQUA015791	Round plastic-coated borosilicate glass collecting flask with spherical joint, 500 mL capacity
SQUA015789	Round plastic-coated borosilicate glass collecting flask with spherical joint, 1000 mL capacity
SQUA015790	Round plastic-coated borosilicate glass collecting flask with spherical joint, 2000 mL capacity

Specifications

Manufacturer	ChemTron
Model number	Strike 285 (see configuration options below)
Glassware	Standard glass or plastic-coated glass
Rotation speed	20 rpm - 300 rpm
Display	110 mm monochromatic LCD touch screen
Sealing	PTFE and carbon graphite seals
Connection	Coupling ring and evaporation flask ejector
Bath temperature	85°C with water | 180°C with oil
Bath heater	1400 W
Bath capacity	5 litres
Temperature stability	±2°C
Timer Range	0 - 99 hours and 59 minutes
Operating range	5°C - 40°C
Relative humidity	50% at 40°C
Bath material	Moulded aluminium tank with PTFE coating
Left/right moving distance	90 mm
Draining	Removable bath for emptying
Stroke displacement	130 mm, adjustable and can be stopped in any position
Head angle adjustment	0 ~ 15°
Cooling surface	1500 cm²
Evaporating flasks	Standard: 1000 mL | Optional: 50 mL to 2000 mL
Collecting flasks	Standard: 1000 mL | Optional: 50 mL to 2000 mL
Programmable	1 x 9 step program
Weight	Vertical version: 26.5 Kg Slanting version: 26.0 Kg
Overall instrument dimensions (W x D x H)	Vertical version: 430 mm x 700 mm x 690 mm Slanting version: 430 mm x 790 mm x 690 mm
Power requirements	230 VAC: 50 Hz
