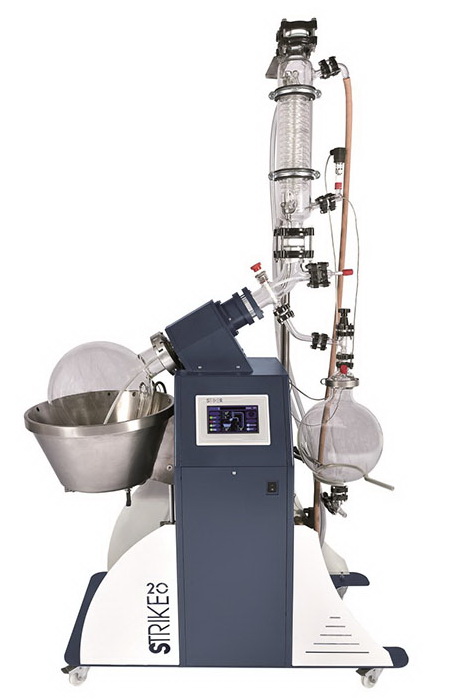

SQFU079738 | Strike 20 rotary evaporator with up to 20 litre evaporating capacity








Key Features

  • Up to 20 litre evaporating capacity with choice of 6L, 10L or 20L evaporating flasks
  • Can be operated under ambient pressure or vacuum (up to 5 mbar)
  • Removable safety shield for the evaporating flask and thermostatic tank provides protection from flask breakage or spray
  • Seals constructed from self-lubricating materials that require no maintenance and provide a vacuum-tight seal
  • Powered heating tank positioning system
  • 178 mm touch screen providing real-time control and display of the pre-set and actual thermostatic bath temperature, vapour temperature, rotation speed and vacuum level (vacuum controller included as standard)
  • Protocol saving and retrieving
  • Over-temperature protection
  • Soft start rotation
  • Rotation speed from 10 rpm to 150 rpm
  • Timer range from 0 - 1000 minutes
  • Thermostatic tank can be heated from ambient to 180°C with options for heating aqueous solutions or oil

Description

The Strike 20 rotary evaporator from ChemTron combines advanced functionality with safety to provide the ideal instrument for the medium-range recovery of solvents in an industrial or laboratory environment. The Strike 20 is ideal for separating low-boiling volatile compounds from high-boiling volatile compounds.

Key safety features to protect end-users include:

  • A safety shield over the evaporating flask and heating tank
  • Vacuum-tight and corrosion-resistant seals without gaskets to prevent solvent leakage
  • Over-temperature protection
  • Soft start rotation
  • Rupture disk on glassware
  • Powered and electronically-monitored heating tank positioning system with safety release in case of power failure

The Strike 20 can be operated at ambient pressure or under vacuum. The vacuum tight seals provide a vacuum level of 5 mbar that reduces processing time as a result of a lower evaporating temperature of the fluid in the evaporating flask.

All functions of the Strike 20 are controlled through a touch screen display that provides real-time data on operating parameters such as pre-set and actual thermostatic bath temperature, vapour temperature, rotation speed and vacuum level. A timer allows the time to be set between 0 and 1000 minutes. At the end of a timing period the heating tank is automatically lowered, the evaporating flask is removed from the tank, and all functions automatically stop.

Heating is provided by a 33 litre capacity stainless steel heating tank with a built-in 3 kW heating coil. Solutions in the bath can be heated from ambient to 180°C with options for heating aqueous solutions (to 85°C) or oil.

The rotation speed for the Strike 20 can be set between 10 rpm and 150 rpm with a soft start feature incorporated into the instrument.

More Information

System Configurations

Part NumberConfiguration
SQFU079737Strike 20 rotary evaporator, descending glassware, 20 L evaporating flask, 1 x 10 L collecting flask
SQFU079738Strike 20 rotary evaporator, descending glassware, 20 L evaporating flask, 2 x 6 L collecting flasks
SQFU079735Strike 20 rotary evaporator, reflux glassware, 20 L evaporating flask, 1 x 10 L collecting flask
SQFU079736Strike 20 rotary evaporator, reflux glassware, 20 L evaporating flask, 2 x 6 L collecting flasks

Accessories

Part NumberDescription
SQFW080270Aluminium trolley for evaporating flask handling
SQFY0809516 L evaporation vessel
SQFY08095210 L evaporation vessel
SQFY08095320 L evaporation vessel
SQFY0809546 L collecting vessel, plastic-coated
SQFY08095510 L collecting vessel, plastic-coated
169960-22Wiggens chemically-resistant diaphragm vacuum pump (C960T), maximum vacuum  2 mbar, maximum flow rate 60 L/min
9663040Julabo recirculation cooler (FL4003)
  • Temperature range: -20℃ +40℃ (0.5℃ stability)
  • Cooling capacity: 4 kW at +20℃ and 0.65 kW at -20℃
  • Flow rate (Pump): 40 L/min
  •  Pump capacity flow pressure 0.5 bar to 3 bar


Specifications

Manufacturer
ChemTron
Model number
Strike 20
Rotation speed | accuracy
10 rpm - 150 rpm in 1 rpm increments | ±2 rpm
Timer range
0 - 1000 minutes
Evaporating flask capacity
Up to 20 litres
Collecting flask capacity
Up to 12 L (2 x 6 litre flasks)
Maximum pressure (glass components)
0.5 bar
Maximum pressure (cooling coil)
3 bar
Maximum nitrogen pressure
0.4 bar
Glass components
3.3 ISO 4586 borosilicate glass
Structure and frame
Painted steel frame mounted on wheels
Panels
Painted anticorodal aluminium sheet
Display
178 mm touch screen
Heating tank material
Stainless steel with built-in 3 kW heating coil
Heating tank capacity
33 litres
Heating tank temperature range
Ambient to 150°C (1°C increments) with settings for water or oil
Heating tank accuracy
±2°C
Heating tank temperature resolution
0.1°C
Control method
PID
Temperature sensor
PT100
Interface
USB
Dimensions (W x D x H)
1240 mm x 580 mm x 2060 mm
Weight
150 Kg
Voltage
230 VAC: 50 Hz
