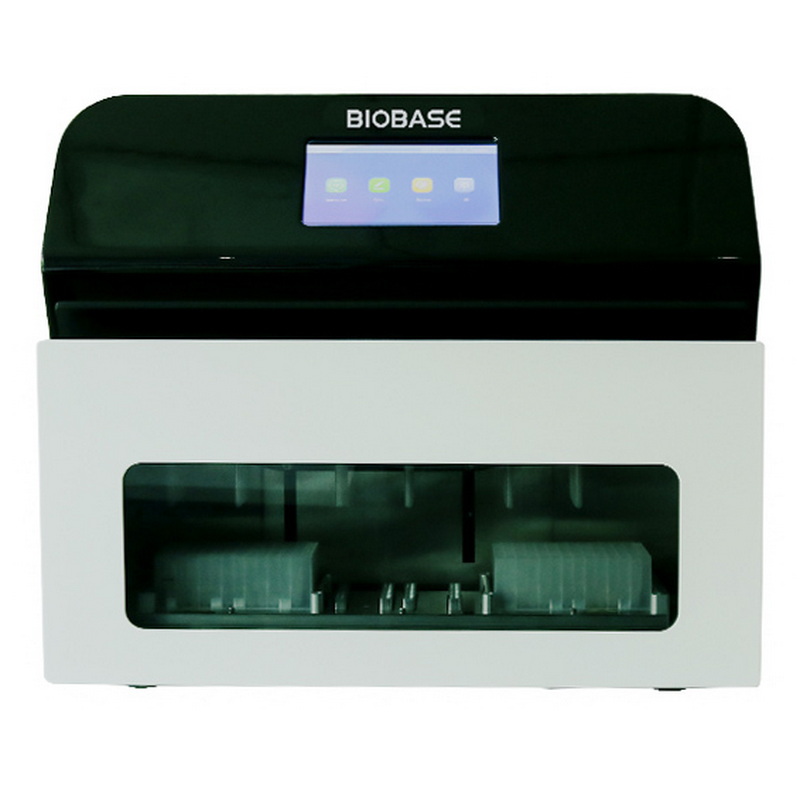

BNP48 | Automated nucleic acid extraction system with 48 sample capacity

Key Features

• Uses established and reliable magnetic bead technology
• Highly flexible protocols to meet the requirements of different reagents
• Process up to 48 samples per run
• Processing volume from 60 µL - 1000 µL
• Sample volume from 20 µL - 500 µL
• Extraction times from 8 min - 60 min depending on reagents used
• 180 mm intuitive and fast response touch screen
• Fully automated with no requirement for external control
• Opening the safety door stops the protocol until it is closed
• UV disinfection function with time range from 1 minute to 24 hours

Product Description

The BNP48 is an advanced nucleic acid extraction system that uses established and reliable magnetic bead technology to extract nucleic acids from up to 48 samples per run. The instrument is fully automated (needs no external computer control) and is operated through an 180 mm intuitive and fast response touch screen.

The unit has a sample volume from 20 µL - 500 µL and processing volume from 60 µL - 1000 µL and extraction times can be set from 8 min - 60 min depending upon the reagents used.

The unit features a safety door which stops the protocol if it is opened mid-run. The protocol will restart when the door is closed. The unit also features a UV disinfection function that can be set from 1 minute to 24 hours.

Specifications

Sample capacity	Up to 48
Processing volume	60 µL - 1000 µL
Sample volume	20 µL - 500 µL
Magnetic bead recovery	>98%
Extraction difference between sample wells	CV≤3%
Heating temperature	8 independent heating modules with customisable heating protocols.
Oscillating mixing	Low, medium and high options | Oscillating range adjustable to match reagent volume
Reagent type	Magnetic bead open platform
Extraction time	8 min - 60 min per protocol |Depends on reagent used
Internal programs	50000 groups
Program management	Powerful protocol editing capabilities | U disk program import and export
Safety door design	Opening safety door suspends protocol until it is closed. Protocol then restarts.
Built-in air duct	Yes
UV irradiation	Yes | 1 minute to 24 hours
Instrument dimensions (W x D x H)	700 mm x 520 mm x 750 mm
Instrument weight (Kg)	80 Kg
