BS-010221-A03 | Laboratory centrifuge for microplates, PCR plates, deep well plates, and tubes up to 50 mL capacity, maximum speed 6000 rpm (LMC-56)

Key Features

• Ideal for centrifuging microplates, PCR plates, deep well plates up to 45 mm in height, vacutainers, gel cards and centrifuge tubes up to 50 mL capacity
• Maximum speed of 2000 rpm for microplates and 6000 rpm for centrifuge tubes
• Automatic rotor recognition and maximum speed setting for that rotor
• Multiple acceleration and deceleration modes
• Rotor speed can be set in rpm or rcf
• Low noise operation
• Multiple safety features
• Timer sound signal
• Wide range of rotor options (please see below)

Description

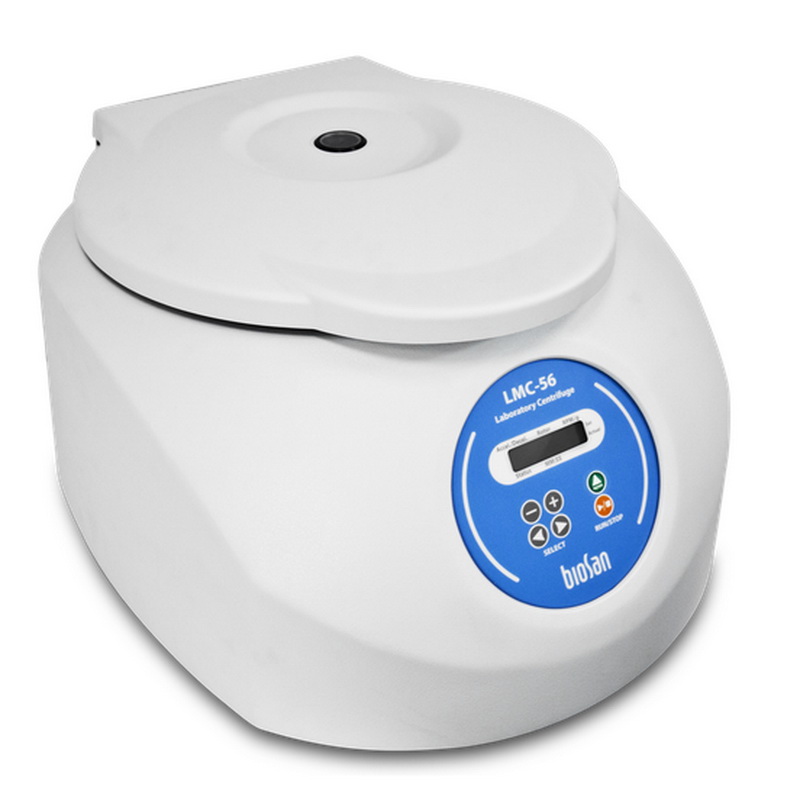

The LMC-56 bench top centrifuge can be used for a wide range of applications in medical, biochemical and industrial laboratories. The low noise motor is encased in a protective metal housing that is easy to clean and decontaminate.

The LMC-56 features multiple acceleration (slow, normal, fast) and deceleration (0, slow, normal, fast) modes and the rotor speed can be set in rpm or rcf.  The unit has a maximum speed of 2000 rpm for microplates and 6000 rpm for centrifuge tubes.

This compact instrument incorporates a number of safety features including metal protective inserts in the casing and lid, automatic imbalance switch-off, and lid lock.

A number of rotors for microplates and different tube sizes are available for the LMC-56. Rotors are purchased separately from the centrifuge.

Rotor Options

Part Number	Description
BS-010221-AK	BR-4U | Bucket rotor without bucket adapters
BS-010208-DK	R-6 | Swing out rotor for 6 x 50 mL conical bottom centrifuge tubes, aluminium buckets, maximum tube dimensions: 29 mm x 115 mm (Ø x length)
BS-010208-XK	R-6P | Swing out rotor for 6 x 50 mL conical bottom centrifuge tubes, Plastic (POM Kocetal) buckets, maximum tube dimensions: 29 mm x 115 mm (Ø x length)
BS-010208-BK	R-12/10 | Swing out rotor for 12 x 10 - 15 mL round bottom tubes, Plastic (POM Kocetal) buckets, maximum tube dimensions: 16 mm x 105 mm (Ø x length)
BS-010212-JK	R-24/10 | Swing out rotor for 24 x 10 - 15 mL round bottom tubes, Plastic (POM Kocetal) buckets, maximum tube dimensions: 16 mm x 105 mm (Ø x length)
BS-010208-EK	R-12/15 | Swing out rotor for 12 x 15 mL conical bottom tubes, Plastic (POM Kocetal) buckets, maximum tube dimensions: 17 mm x 120 mm (Ø x length)
BS-010208-AK	R-2 | Swing-out rotor for two standard 96-well microplates, skirted PCR plates, and deep well plates up to 45 mm in height, platform dimensions: 128 mm x 85.6 mm
BS-010208-VK	R-24GC | Rotor for 24 Gel Cards for blood group serology testing (Forward Group, Reverse Group, RhD Type and 3 cell antibody screen), card dimensions: 53 mm x 74 mm  (L x W)
BS-010208-PK	BN-13/75 | 12 inserts for R-12/10 and R-24/10 rotors, for vacutainers 2 mL - 5 mL
BS-010208-QK	BN-13/100 | 12 inserts for R-12/10 and R-24/10 rotors, for vacutainers 4 mL - 8 mL
BS-010208-RK	BN-16/100 | 12 inserts for R-12/10 and R-24/10 rotors, for vacutainers 8 mL - 10 mL
BS-010219-DK	AP-96 | 2 adapters for 96-well semi-skirted and non-skirted PCR plates
BS-010219-EK	AP-384 | 2 adapters for 384-well microplates
BS-010208-UK	RR-U | Rack for rotors

Specifications

Manufacturer	BioSan
Model number	LMC-56
Speed range (centrifuge tubes)	100 rpm - 6000 rpm in 100 rpm increments
Maximum rcf (centrifuge tubes)	3750 x g
Speed range (microplates)	100 rpm - 2000 rpm in 100 rpm increments
Maximum rcf (microplates)	560 x g
Display	LCD
Timer range	1 to 90 minutes in 1 minute increments
Chamber diameter	355 mm
Instrument dimensions  (W x D x H)	560 mm x 480 mm x 315 mm
Weight	16.5 Kg
Power consumption	320 W
Power requirements	230 VAC: 50/60 Hz
