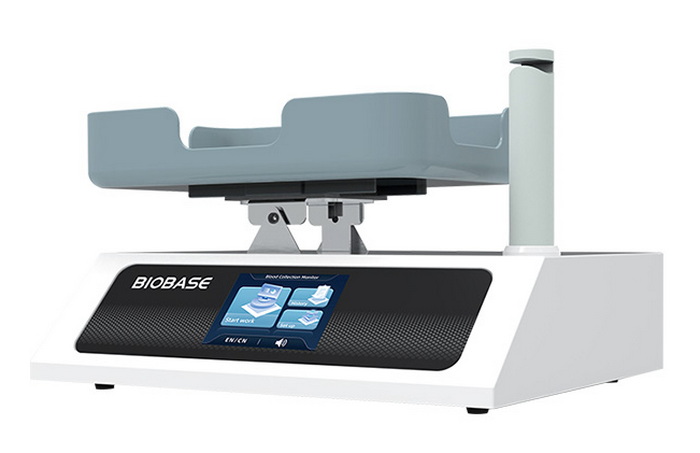

BCM-12Z | Blood collection monitor with gentle shaking motion and tube clamp function | 1000 mL capacity

Key Features

• Gentle shaking mode to ensure minimal cellular disruption
• Measuring range of 0 - 1200 mL
• 3.5" colour LCD touch screen
• Preset volume function for accurate blood collection
• Automatic audio and visual alarm when pre-set volume is reached | tubing obstruction alarm
• Taring and calibrating functions to ensure optimum measuring accuracy
• Tube clamping mechanism to prevent bag over-filling

Product Description

The BCM-12Z blood collection monitor has a measuring range of 0 - 1200 mL and a gentle shaking mode to ensure minimal cellular disruption. It features taring and calibrating function to ensure optimum measuring accuracy and a pre-set volume function for accurate blood collection. Automatic audio and visual alarms alert when pre-set volume is reached as well as a tubing obstruction alarm.

The BCM-12Z also features a tube clamping mechanism which clamps the collection bag tube once the bag has reached the set capacity. This helps to avoid over-filling.

More Information

Please click here to download a brochure for the BCM-12Z blood collection monitor.

Specifications

Model number	BCM-12Z
Measuring range	0 - 1200 mL
Display	3.5" colour LCD touch screen
Resolution	1 mL
Blood weight	1.05 g/mL
Collection speed	0.5 mL - 3 mL/second
Static error	±2 grams
Swing angle	13±2°
Swing rate	30 - 32 rpm
Display accuracy	1 mL
Blood weight	1.05 g/mL
Collection speed	0.5 - 3 mL/s
Swing rate	30 - 32 rpm
Swing angle	13° ± 2°
Alarm	Audio and visual collection finish | clamp obstruction
Tubing obstruction	OD: 3 mm - 6 mm | Wall thickness: 0.5 mm
Tubing resistance	≥14N
Power consumption	30W
Electrical requirements	110/220 VAC ± 10% | 50/60 Hz
Instrument dimensions (W x D x H)	285 mm x 240 mm x 190 mm
Weight	5.5 Kg
