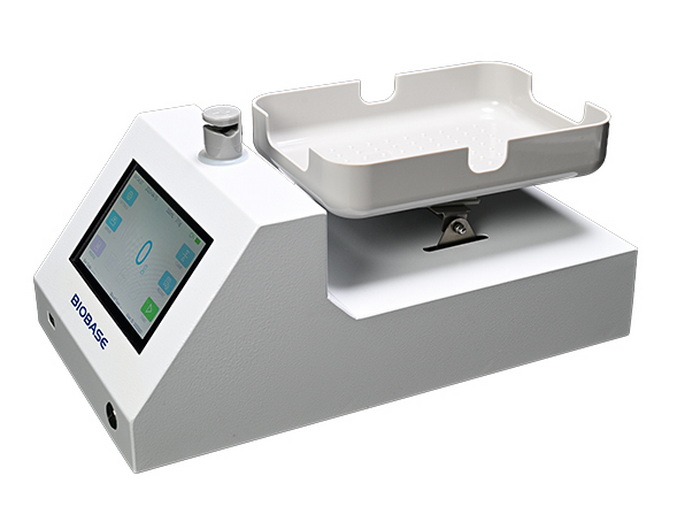

BCM-12C | Blood collection monitor with gentle shaking motion and selectable collection volume | 1200 mL maximum capacity

Key Features

• Gentle shaking motion to ensure minimal cellular disruption
• Collection range of 20 mL - 1200 mL
• 178 mm HD IPS touch screen displaying operational parameters and real-time display of blood collection weight and volume
• Selectable pre-set collection volumes of 100 mL: 200 mL: 300 mL: 400 mL
• Microcomputer programme control
• Automatic clamping line
• Audio alarm to alert end user if flow rate is too high or too low allowing for the flow rate range to be reset
• Taring and calibrating functions to ensure optimum measuring accuracy
• Storage of collected data that can also be exported to a computer

Product Description

The BCM-12C blood collection monitor has a collection range of 20 mL - 1200 mL and a gentle shaking motion to ensure minimal cellular disruption. It features taring and calibrating functions to ensure optimum measuring accuracy and a pre-set volume function for accurate blood collection.

The unit features a 178 mm HD IPS touch screen displaying operational parameters and real-time display of blood collection weight and volume. End users can choose from four selectable pre-set collection volumes (100 mL, 200 mL, 300 mL,  and 400mL).

The BCM-12C also incorporates an automatic clamping line to prevent overfilling and an audio alarm to alert the end-user if the flow rate is too high or too low.

More Information

Please click here to download a brochure for the BCM-12C blood collection monitor.

Specifications

Model number	BCM-12C
Collection range	20 mL - 1200 mL
Selectable pre-set collection volumes	100 mL: 200 mL: 300 mL: 400mL
Display	178 mm HD IPS touch screen
Resolution	1 mL
Blood weight	1.05 grams/mL
Collection speed	0.5 mL - 3 mL/sec.
Static error	±1%
Swing rate	30 - 32 rpm
Swing angle	13° ± 2°
Alarm	Buzzer alarm
Tubing diameter for clamping line	Outer Diameter: 3 mm - 6 mm Wall thickness: 0.5 mm
Ambient operating temperature range	0 to 40°C: Relative humidity less than 85%.
Power consumption	50 W
Electrical requirements	110/220 VAC ± 10% | 50/60 Hz
Instrument dimensions (W x D x H)	380 mm x 220 mm x 150 mm
Weight	5.2 Kg
