BNP96 | Automated nucleic acid extraction system with 96 sample capacity

Key Features

• Uses established and reliable magnetic bead technology
• Highly flexible protocols to meet the requirements of different reagents
• Process up to 96 samples per run
• Processing volume from 60 µL - 1000 µL
• Extraction time is reagent-dependent
• 260 mm intuitive and fast response touch screen
• Fully automated with no requirement for external control
• Opening the safety door stops the protocol until it is closed
• UV disinfection function

Product Description

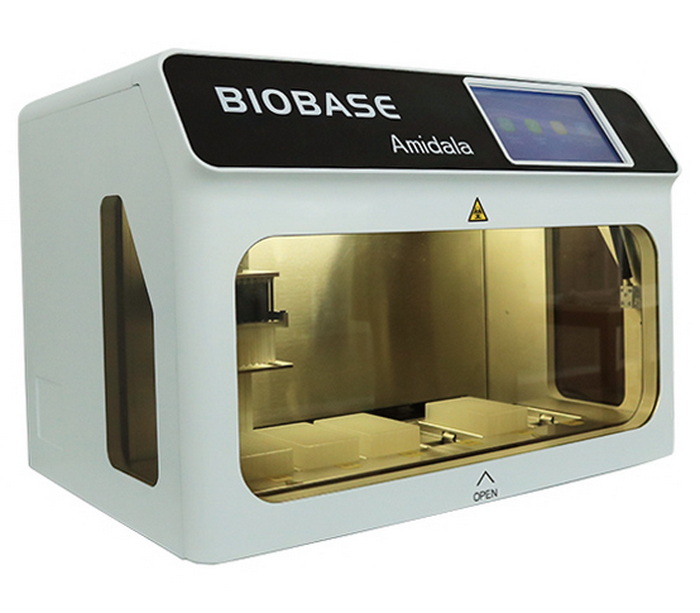

The BNP96 is an advanced nucleic acid extraction system that uses established and reliable magnetic bead technology to extract nucleic acids from up to 96 samples per run. The instrument is fully automated (needs no external computer control) and is operated through an 260 mm intuitive and fast response touch screen.

The processing volume of the BNP96 ranges from 60 µL - 1000 µL and extraction times depend upon the reagents used.

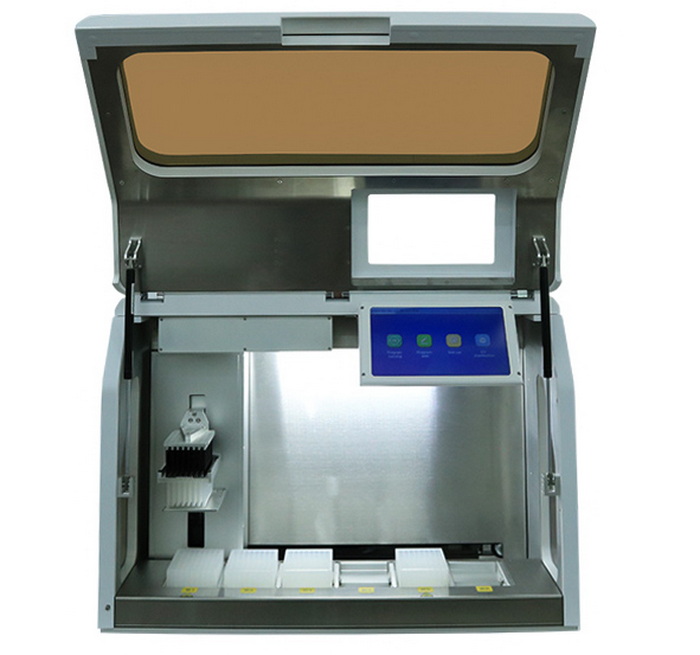

The unit features a safety door which stops the protocol if it is opened mid-run. The protocol will restart when the door is closed. The unit also features a UV disinfection function.

More Information

Please click here to download a brochure describing the BNP96 automated nucleic acid extraction system with 96 sample capacity.

Specifications

Model number	BNP96
Display	260 mm touch screen
Sample volume	60 μL - 1000μL
Sample capacity	1 - 96
Magnetic bead recovery	>98%
Extraction time	Reagent-dependent
Inter well extraction difference	CV≤3%
Consumption	500 W
Operating temperature	Ambient - 120℃
Product purity A260/A280	DNA>1.7 - 2.0 | RNA>1.8 - 2.1
Shock mixing	Adjustable speed
Reagent type	Open system for magnetic bead separation
Program storage	48 groups
Safety door design	Program operation automatically suspended if access door opened
Disinfection method	UV light | aerosol adsorption
Electrical requirements	100 VAC - 240 VAC | 50 Hz/ 60Hz
External dimensions (W x D x H)	770 mm x 530 mm x 540 mm
Weight	95 Kg
