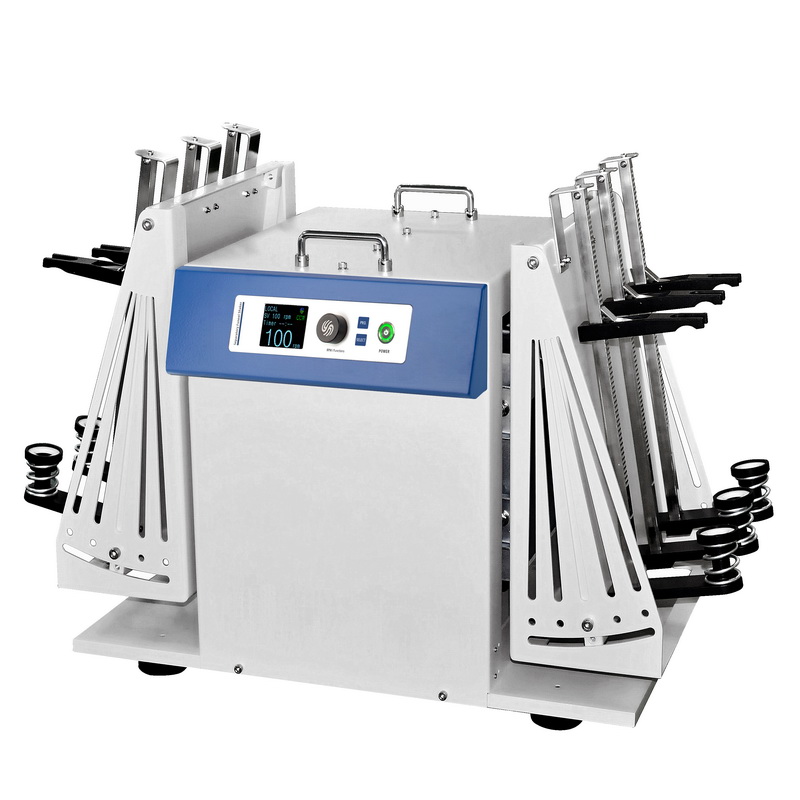

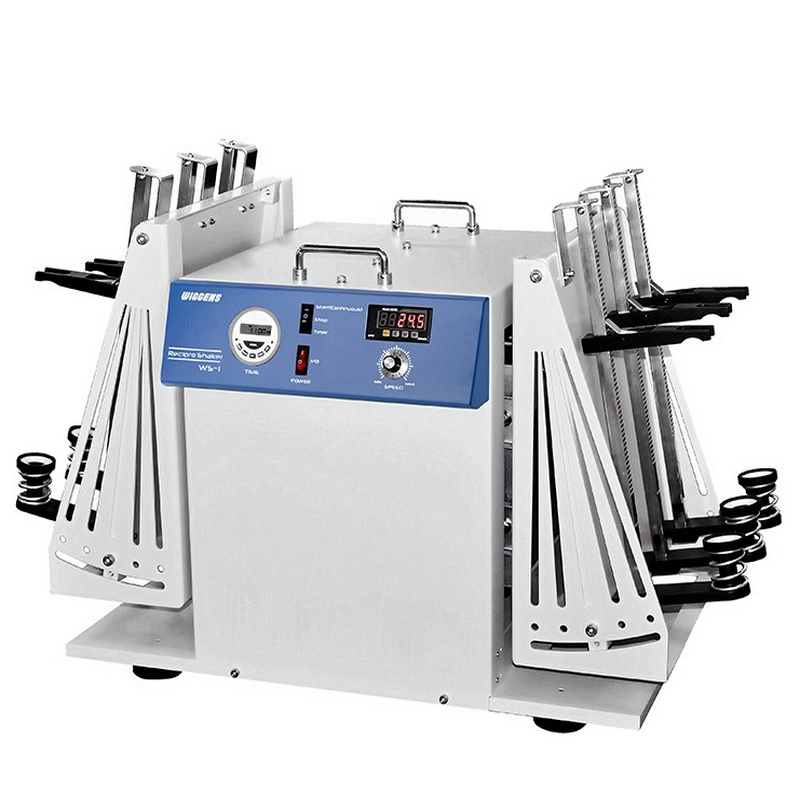

32012KB | Separatory funnel shaker with adjustable shaking angle for up to 6 separatory funnels (WS-1Plus)








Key Features

  • Designed to provide vertical and reciprocal shaking of up to six samples at a time
  • Adjustable holders for up to six 1 litre separatory funnels (three per side)
  • Adjustable shaking angle from 0 - 20°
  • Highly accurate shaking speed control over range of 50 rpm - 300 rpm
  • Bright LED display for convenient speed monitoring
  • Timer can be set between 1 minute and 99 hours and 59  minutes
  • Shaker stops automatically at end of timing cycle and an audible alarm sounds
  • A wide range of separatory funnels and other accessories are available (please see below)

Product Description

The WS-1Plus separatory funnel shaker provides vertical and reciprocal shaking for up to six separatory funnels at a time and is ideal for applications such as solvent extraction. The unit features adjustable holders that can hold up to three funnels per side. A bright LED displays shaking speed which can be set between 50 rpm and 300 rpm.

The WS-1Plus features an adjustable shaking angle that can be adjusted between 0 and 20°. It is fitted with a timer that can be set on continuous or between 1 minute and 99 hours and 59 and when the shaker stops automatically at the end of a timing cycle an audible alarm sounds.

More Information

Two holders for 3 flasks each are provided with the purchase of the WS-1Plus separatory funnel shaker.

Accessories

The following accessories are available for the WS-1Plus. Please contact Advance Scientific for further details and ordering information.

Item DescriptionOptions
Separatory funnels with PTFE
stopcock and glass stopper
Available in 50 ml, 60 mL, 100 mL, 125 mL, 250 mL, 500 mL and 1000 mL volumes
Separatory funnels with PTFE
stopcock and PTFE stopper
Available in 50 ml, 60 mL, 100 mL, 125 mL, 250 mL, 500 mL and 1000 mL volumes
Separatory funnels with glass
stopcock and glass stopper
Available in 60 mL, 125 mL, 250 mL, 500 mL and 1000 mL
Ventsep separatory funnels with
automatic pressure relief, Teflon
stopcock
Available in 1000 mL and 2000 mL volumes
Snorkel stoppersDesigned to fit standard stopper sizes 13,16, 22, 27 and 38
Pressure release valvesDesigned for Wiggens separatory funnels: spout OD 7.5 mm - 9.5 mm or OD 12.5 mm - 13 mm


Specifications

ManufacturerWiggens
Model numberWS-1Plus
Shaking methodVertical and reciprocating
Adjustable shaking angle0 - 20°
Speed range50 rpm - 300 rpm
Accuracy±1 rpm
Vertical stroke length40 mm
Timer1 minute - 99 hours and 59 minutes
Maximum number of flasksUp to 6 (3 on each side)
Maximum funnel size1 litre
Maximum load per side3 Kg
Power90 W
Dimensions (W x D x H)730 mm x 445 mm x 505 mm
Weight90 Kg
