167203B | Vacuum filtration system with FV2 filtration flask set, maximum vacuum 150 mbar, maximum flow rate 17 L/min (VF203B)
- Compact and portable design
- Combines all necessary items for filtration including oil-free vacuum pump and VF2 glass filtration set
- Easy maintenance
- Low noise level
- Vacuum gauge and manual vacuum pressure regulator

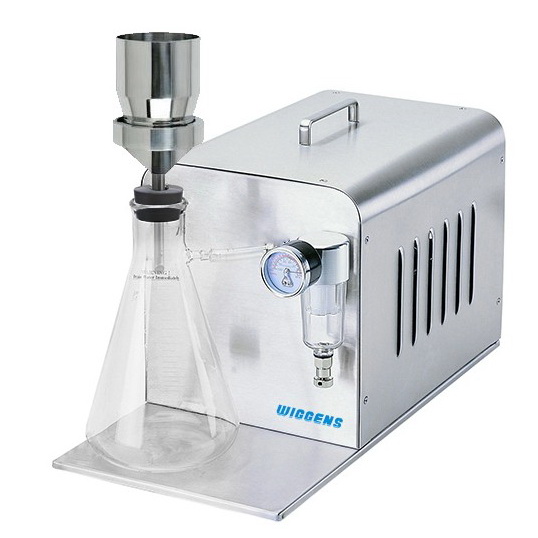

The compact and portable VF203B vacuum filtration system combines a low maintenance oil-free vacuum pump with the VF2 glass filtration set. It has a fibreglass filter membrane and includes the Dragon 100 lab burner to provide an all-in-one system for applications such as microorganism determination.
The low noise pump is fitted with a vacuum gauge and a manual regulator for vacuum pressure control.
Please note that this instrument is not chemically-resistant and should not be used with corrosive substances. If a chemically-resistant system is required then the VF204 and VF214 have been designed for this purpose.
The following components are included with the purchase of the VF203B filtration system:
- Oil-free vacuum pump with vacuum gauge and manual vacuum pressure regulator
- VF2 filtration flask set with fiberglass filter membrane (47 mm diameter: 0.1 μm pore size)*
- Dragon 100 lab burner
- High pressure-resistant tubing
- 0.2 μm water-blocking filter
* The VF2 filtration flask set consists of:
- 100 mL stainless steel filter holder
- 100 mL stainless steel funnel
- Stainless steel support screen
- Stainless steel support base
- Silicone stopper
- 1000 mL receiver flask with drain
- Weighted base
|Motor speed||1450 rpm|
|Maximum vacuum||150 mbar|
|Maximum flow rate||17 L/min|
|Ambient operating range||+5°C to +40°C|
|Humidity||Maximum relative humidity 80% for temperatures up to +31°C with linear decrease down to 50% relative humidity at a temperature of +40°C |
|Outlet connector||9 mm|
|Noise level||50 dB|
|Filtration glass set||VF2|
