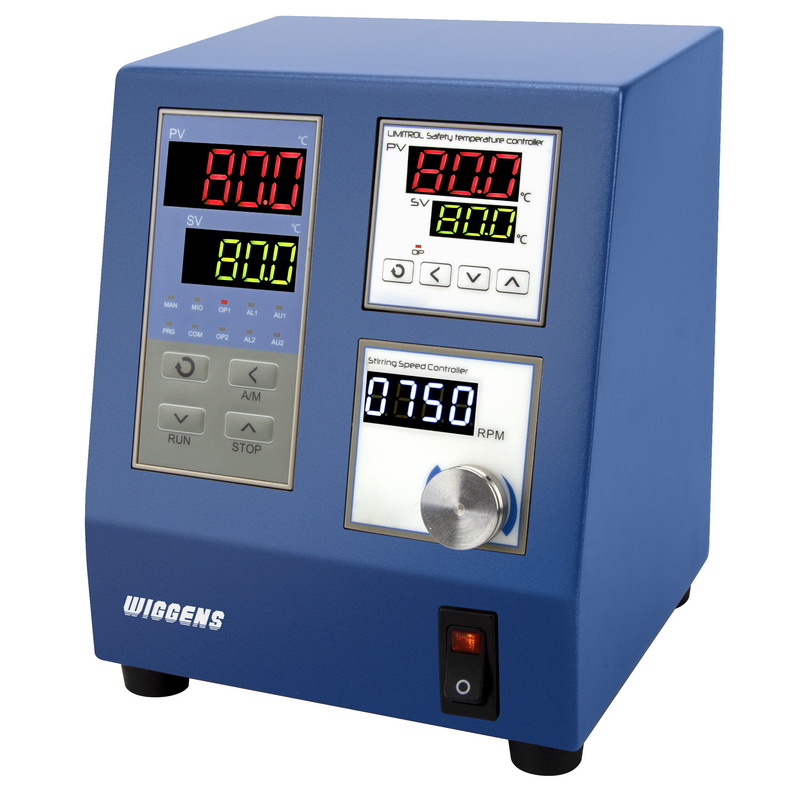

PL524 Pro-Stir | Temperature and stirring controller with adjustable safety temperature for mantles and other heat and stirring applications








Key Features

  • Independent control of temperature and stirring speed
  • Temperature control range from ambient to 550℃
  • Variable stir bar stirring speed from 50 rpm - 750 rpm
  • LED touch screen displaying actual and set temperatures
  • Adjustable safety temperature range with separate LED control panel
  • RS232 interface
  • Alarm signal

Description

The PL524 Pro-Stir is a high precision controller that uses an advanced PID algorithm to minimise variability and overshoot of the heating mantle temperature. The unit also includes a self-adjustment function to monitor product temperature with feedback being provided to the controller through a PT100 sensor or a K-type thermocouple.

The PL524 Pro-Stir uses electromagnetic functionality to provide a stir bar stirring speed range from 50 rpm - 750 rpm. Speed is adjusted by a single dial and the controller features "Synchrostart" that maintains linkage between the magnetic field and the stir bar. The mantle-controller connection cord allows the controller to be placed outside a fume hood to protect it from corrosive atmospheres.

The PL524 Pro-Stir also features an adjustable safety temperature range that can be set through a separate control panel.

Specifications

ManufacturerWiggens
Controller model numberPL524 Pro-Stir
Adjustable temperature rangeAmbient to 550ºC
Adjustable safety temperature rangeUp to 500ºC with 1ºC resolution
Temperature controlAutomatic PID algorithm control
Measurement and control sensor (standard)PT100: four lead method
Measurement and control sensor (optional)K-type thermocouple
InterfaceRS232
Display accuracy±0.1%
Temperature stability±0.03% or better
Resolution0.01ºC
Ambient temperature operating range (controller)-10ºC to +35ºC
Humidity operating range≤90%
Power supply100 VAC to 240 VAC | 50-60 Hz
Power consumption≤4.5 W
Maximum current10 A
Weight2.5 Kg
