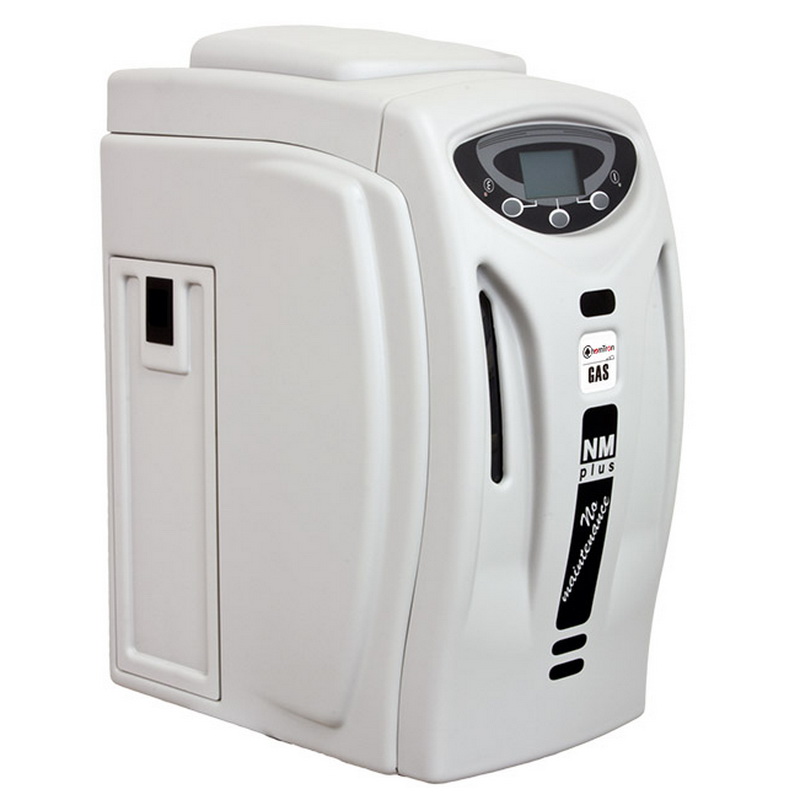

DB-FTNM250 | Ultrapure hydrogen gas generator, flow rate 250 mL/min, 99.99996% purity (NMH2-250 Plus)








Key Features

  • Maintenance-free purification system generates carrier grade hydrogen gas to 99.99996% purity
  • No pipeline or bottle changing requirements
  • No acid or alkaline solutions used in the hydrogen generation cycle
  • Improved chromatographic results. Use of hydrogen as a carrier gas allows lower temperature elution and extended chromatograph column life.
  • Advanced software control and safety alarm systems protect personnel. Limited internal volume (<50 mL) provides safer operating conditions compared to cylinders.
  • Up to 32 units can be linked together for high volume output
  • Automatic flow compensation
  • Continuous operation for critical applications

Description

The NMH2-250 Plus hydrogen gas generator produces carrier grade gas of 99.99996% purity for gas chromatography and other critical applications. The use of hydrogen as a carrier gas for gas chromatography provides more rapid separations than with other gases and with a minimum loss in chromatographic efficiency.

The NMH2-250 Plus produces hydrogen by forcing distilled or deionised water through an advanced Swiss-made titanium electrolytic cell. Electrolytic dissociation separates the water into its two main components: hydrogen ready for analytical use and oxygen that is released into the air. No acid no alkaline solutions are used in the hydrogen generation cycle and the patented automatic drying system ensures the maximum level of hydrogen purity.

Safety is a major concern when using hydrogen so substituting the NMH2-250 Plus for bottle or pipeline sources significantly increases the protection level. Advanced software control and safety alarm systems also protect personnel and a limited internal volume (<50 mL) provides safer operating conditions compared to gas cylinders.

The NMH2-250 Plus integrates systems for automatic flow compensation and continuous operation for critical applications. Up to 32 units can be linked together for facilities requiring high volume output.

Specifications

Manufacturer
Wiggens
Flow rate
250 mL/min
Purity
99.99996%
Display
Touch screen displaying operating parameters, system status and alarms
LED indicators
Power ON/OFF, system ready and errors
Membrane
Polymer electrolyte membrane
Dryer
Cold dual dynamic regeneration system
Maximum outlet pressure
11 bar (160 psig)
Internal volume
<50 mL at maximum pressure
Water quality
Deionised or demineralised (<10 uS)
Instrument integration
Up to 32 units can be connected in series for high volume gas output
Connections
1/8" Swagelok
Power requirements
220 - 240 V/ 50 Hz
Dimensions (W x D x H)
230 mm x 355 mm x 410 mm
Weight
20 Kg
Interface
RS232/RS485 and USB: PC control
Certifications
CE, CSA and FCC
