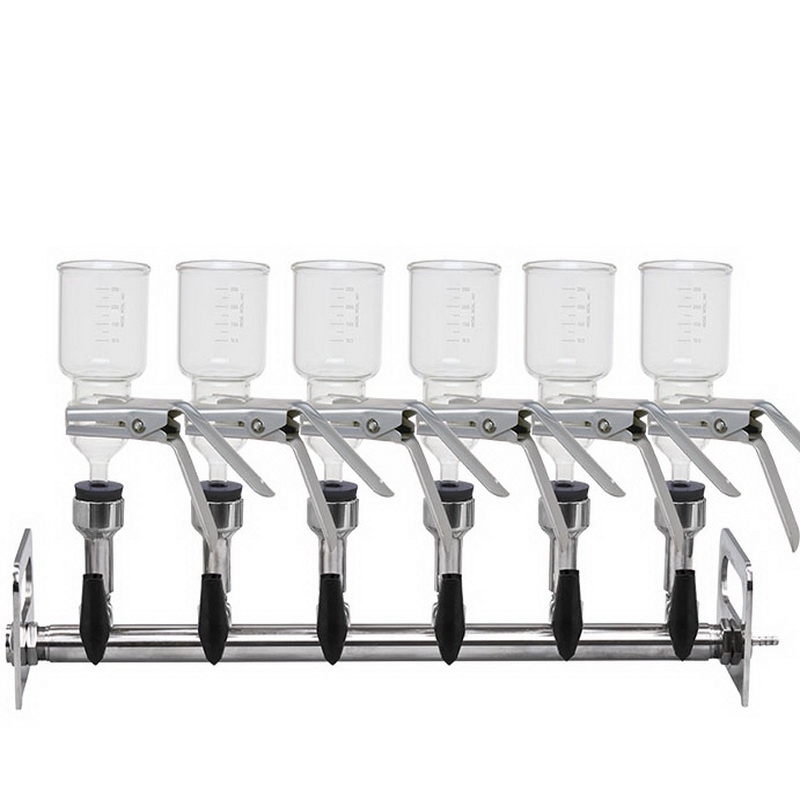

167113-63 | BioVac 6-position stainless steel filtration manifold (BioVac663)








Key Features

  • Constructed of high grade aluminium
  • Lightweight
  • Six filter positions each with individual control valve
  • Offered in two versions that combine the manifold with either six borosilicate glass funnels or six borosilicate glass funnels with a micro-strainer (please see below).
  • Filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).

Product Description

The six position BioVac663 filtration manifold is constructed from high grade aluminium for lightness. Each of the six filter positions on the manifold is fitted with a control valve to isolate the filter if not in use.

Two versions are available that combine the manifold with either six borosilicate glass funnels or six borosilicate glass funnels with a micro-strainer (please see below).

The BioVac663 filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).

Available Options

Model
Number
Part
Number
Dimensions
(W x D x H)
Filter Cup Capacity
BioVac663167113-63800 mm x 150 mm x 300 mm6 x 250 mL Borosilicate glass funnels*
BioVac664167113-64800 mm x 150 mm x 300 mm6 x 250 mL Borosilicate glass funnels with micro-strainer*


*Each filter funnel consists of a 250 mL Borosilicate glass filter cup, an aluminium clamp, a 47 mm glass filter base, and a silicon rubber manifold plug.

** Each filter funnel consists of a 250 mL Borosilicate glass filter cup, an aluminium clamp, a Stainless Steel support screen with PTFE gasket, a 47 mm glass filter base, and a silicon rubber manifold plug.


Options for Assembly of Complete Multi-position Filtration Systems

Model NumberProduct Description
Vacuum Pumps
167400V400 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 34 L/min
167600V600 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 60 L/min
167410V410 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 19 L/min
167610V610 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 40 L/min
Suction Bottles
167200-311 L suction bottle
167200-322 L suction bottle
167200-333 L suction bottle
Silicon Tubing
167021-01Silicon tubing: OD 14 mm: ID 8 mm: Length 1 m
Filter Membranes
167100-20Fiberglass filter membranes: Diameter 47 mm: Pore size 1 µm
167100-52Mixed cellulose ester (MCE) filter membranes: Diameter 47 mm: Pore size 0.45 µm

Specifications

ManufacturerWiggens
Model numbersBioVac663 | BioVac664
Number of filter positions6
Filter diameter47 mm/ 50 mm
Effective filtration area96 mm² per position
Outlet8 mm
Overall dimensionsPlease see Available Options above
Filter cup materialBorosilicate glass
Filter cup capacityPlease see Available Options above
Product configurationPlease see Available Options above
