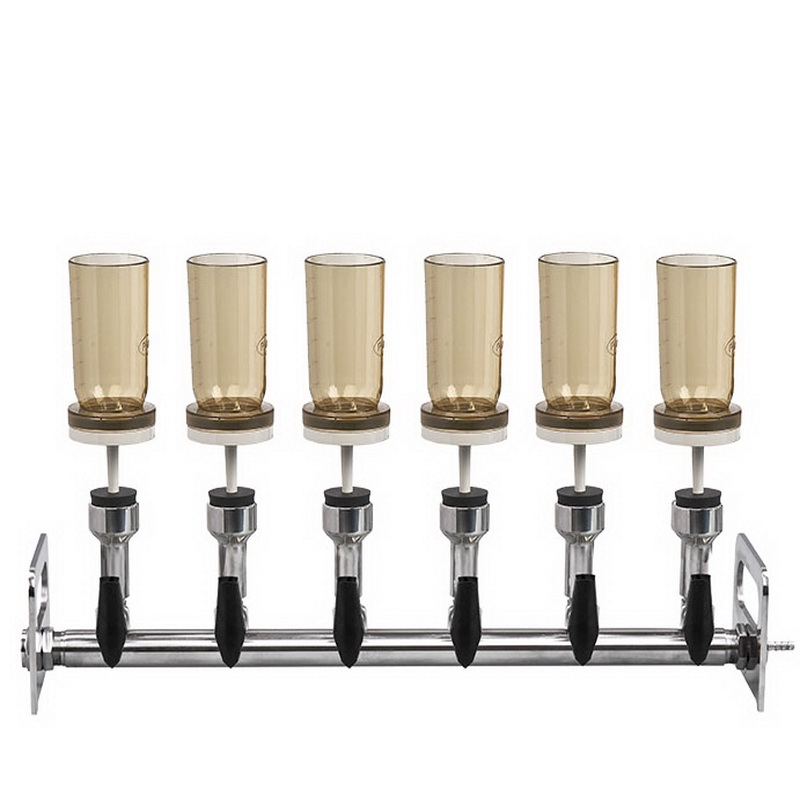

167112-61 | BioVac 6-position stainless steel filtration manifold (BioVac651)
Key Features
- Constructed of high grade stainless steel for chemical resistance
- Six filter positions each with individual control valve
- Offered in three versions that combine the manifold with a Polyethersulfone (PES) magnetic filter funnel of various sizes (please see below).
- Filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).
Product Description
The six position BioVac651 filtration manifold is constructed from high grade stainless steel for chemical resistance. Each of the six filter positions on the manifold is fitted with a control valve to isolate filters that are not in use.
Three versions are available that combine the manifold with a Polyethersulfone (PES) magnetic filter funnel of various sizes (please see below).
The BioVac651 filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).
Available Options
| Model Number | Part Number | Dimensions (W x D x H) | Filter Cup Capacity |
| BioVac651 | 167112-61 | 800 mm x 150 mm x 300 mm | 6 x 150 mL magnetic filter funnels* |
| BioVac653 | 167112-63 | 800 mm x 150 mm x 300 mm | 6 x 300 mL magnetic filter funnels* |
| BioVac655 | 167112-65 | 800 mm x 150 mm x 330 mm | 6 x 500 mL magnetic filter funnels* |
*Each filter funnel consists of a Polyethersulfone (PES) filter cup, a Polypropylene membrane support, a PES filter base, and a silicon rubber manifold plug.
Options for Assembly of Complete Multi-position Filtration Systems
| Model Number | Product Description |
| Vacuum Pumps | |
| 167400 | V400 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 34 L/min |
| 167600 | V600 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 60 L/min |
| 167410 | V410 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 19 L/min |
| 167610 | V610 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 40 L/min |
| Suction Bottles | |
| 167200-31 | 1 L suction bottle |
| 167200-32 | 2 L suction bottle |
| 167200-33 | 3 L suction bottle |
| Silicon Tubing | |
| 167021-01 | Silicon tubing: OD 14 mm: ID 8 mm: Length 1 m |
| Filter Membranes | |
| 167100-20 | Fiberglass filter membranes: Diameter 47 mm: Pore size 1 µm |
Specifications
| Manufacturer | Wiggens |
| Model Numbers | BioVac651 | BioVac653 | BioVac655 |
| Number of filter positions | 6 |
| Filter diameter | 47 mm/50 mm |
| Effective filtration area | 96 mm² per position |
| Outlet | 8 mm |
| Overall dimensions | Please see Available Options above
|
| Filter cup material | Polyethersulfone |
| Filter cup capacity | Please see Available Options above
|
| Product configuration | Please see Available Options above
|
