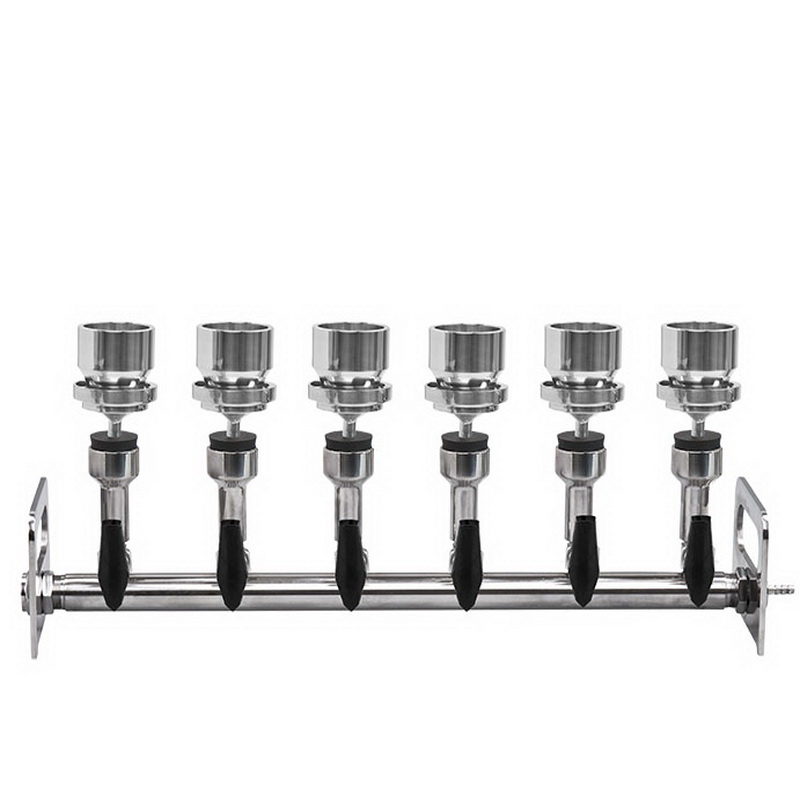

167111-61 | BioVac 6-position stainless steel filtration manifold (BioVac641)








Key Features

  • Constructed of high grade SS316 Stainless Steel for chemical resistance
  • Six filter positions each with individual control valve
  • Offered in three versions that combine the manifold with 100 mL, 300 mL or 500 mL Stainless Steel filter funnels (please see below).
  • Filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).

Product Description

The six position BioVac641 filtration manifold is constructed from high grade SS316 Stainless Steel for chemical resistance. The BioVac641 is offered in three versions that combine the manifold with 100 mL, 300 mL or 500 mL Stainless Steel filter funnels (please see below). Each filtration position has an individual control valve so that a position or positions can be isolated if not in use.

The BioVac641 filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).

Available Options

Model
Number
Part
Number
Dimensions
(W x D x H)
Filter Cup Capacity
BioVac641167111-61800 mm x 150 mm x 230mm6 x 100 mL stainless steel filter funnels*
BioVac643167111-63800 mm x 150 mm x 270 mm6 x 300 mL stainless steel filter funnels*
BioVac645167111-65800 mm x 150 mm x 300 mm6 x 500 mL stainless steel filter funnels*

* Each filter funnel consists of a Stainless Steel filter cup,  support screen and filter base, and a silicon rubber manifold plug.


Options for Assembly of Complete Multi-position Filtration Systems

Model NumberProduct Description
Vacuum Pumps
167400V400 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 34 L/min
167600V600 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 60 L/min
167410V410 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 19 L/min
167610V610 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 40 L/min
Suction Bottles
167200-311 L suction bottle
167200-322 L suction bottle
167200-333 L suction bottle
Silicon Tubing
167021-01Silicon tubing: OD 14 mm: ID 8 mm: Length 1 m
Filter Membranes
167100-20Fiberglass filter membranes: Diameter 47 mm: Pore size 1 µm
167100-52Mixed cellulose ester (MCE) filter membranes: Diameter 47 mm: Pore size 0.45 µm


Specifications

ManufacturerWiggens
Model numbersBioVac641 | BioVac643 | BioVac645
Number of filter positions6
Filter diameter47 mm/ 50 mm
Effective filtration area96 mm² per position
Outlet8 mm
Overall dimensionsPlease see Available Options above
Filter cup materialStainless Steel
Filter cup capacityPlease see Available Options above
Product configurationPlease see Available Options above
