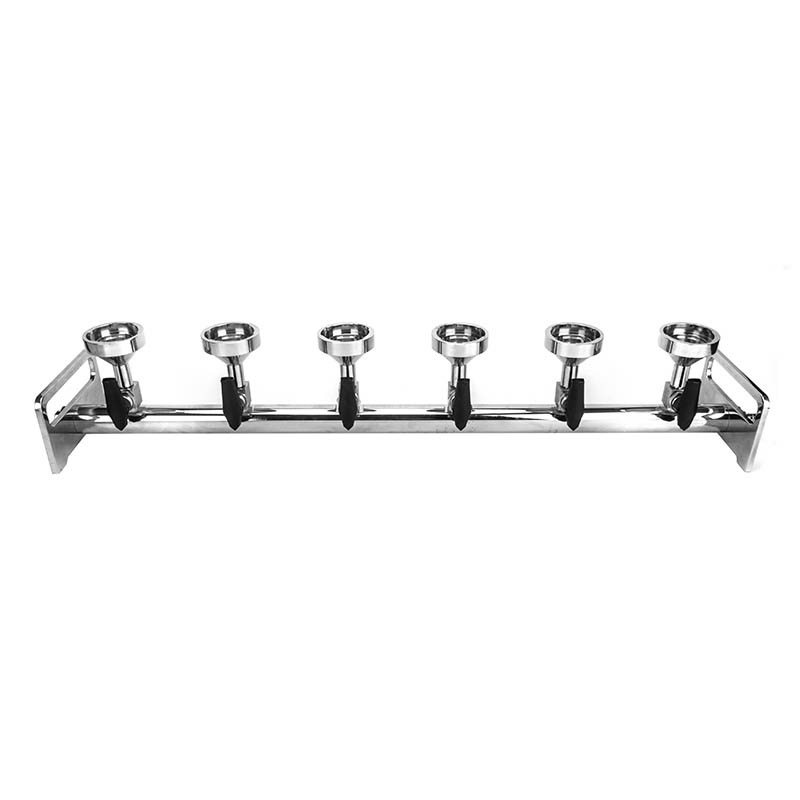

167103-26 | BioVac 6-position stainless steel filtration manifold (BioVac630)

Key Features

• Constructed of high grade stainless steel (SS316)
• Chemically-resistant
• Six filter positions each with individual control valve
• Offered as the filtration manifold only or as three other versions that combine the manifold with 100 mL, 300 mL or 500 mL cylinder type filter funnels (please see below).
• Filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).

Product Description

The six position BioVac630 filtration manifold is constructed from high grade SS316 Stainless Steel for high chemical resistance. The BioVac630 is offered as the filtration manifold only or as three other versions that combine the manifold with 100 mL, 300 mL or 500 mL Stainless Steel filter funnels (please see below). Each filtration position has an individual control valve so that a position or positions can be isolated if not in use.

The BioVac630 filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).

Available Options

Model Number	Part Number	Dimensions (W x D x H)	Filter Cup Capacity
BioVac630	167103-26	800 mm x 150 mm x 150 mm	Manifold only
BioVac631	167103-27	800 mm x 150 mm x 200 mm	Manifold and 6 x 100 mL stainless steel filter cups (cylinder type)
BioVac633	167101-26	800 mm x 150 mm x 230 mm	Manifold and 6 x 300 mL stainless steel filter cups (cylinder type)
BioVac635	167101-27	800 mm x 150 mm x 260 mm	Manifold and 6 x 500 mL stainless steel filter cups (cylinder type)

Filter Options

Part Number	Product Description
167103-61	Stainless Steel filter cup: cylinder type: 100 mL
167103-63	Stainless Steel filter cup: cylinder type: 300 mL
167103-65	Stainless Steel filter cup: cylinder type: 500 mL
167103-11	Stainless Steel filter cup lid: for 100 mL cylinder type filter cup
167103-13	Stainless Steel filter cup lid: for 300 mL cylinder type filter cup
167103-15	Stainless Steel filter cup lid: for 500 mL cylinder type filter cup

Options for Assembly of Complete Multi-position Filtration Systems

Model Number	Product Description
Vacuum Pumps
167400	V400 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 34 L/min
167600	V600 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 60 L/min
167410	V410 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 19 L/min
167610	V610 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 40 L/min
Suction Bottles
167200-31	1 L suction bottle
167200-32	2 L suction bottle
167200-33	3 L suction bottle
Silicon Tubing
167021-01	Silicon tubing: OD 14 mm: ID 8 mm: Length 1 m
Filter Membranes
167100-20	Fiberglass filter membranes: Diameter 47 mm: Pore size 1 µm:
167100-52	Mixed cellulose ester (MCE) filter membranes: Diameter 47 mm: Pore size 0.45 µm

Specifications

Manufacturer	Wiggens
Model numbers	BioVac630 | BioVac631 | BioVac633 | BioVac635
Number of filter positions	6
Filter diameter	47 mm/ 50 mm
Effective filtration area	96 mm² per position
Outlet	8 mm
Overall dimensions	Please see Available Options above
Filter cup material	Stainless Steel
Filter cup capacity	Please see Available Options above
Product configuration	Please see Available Options above
