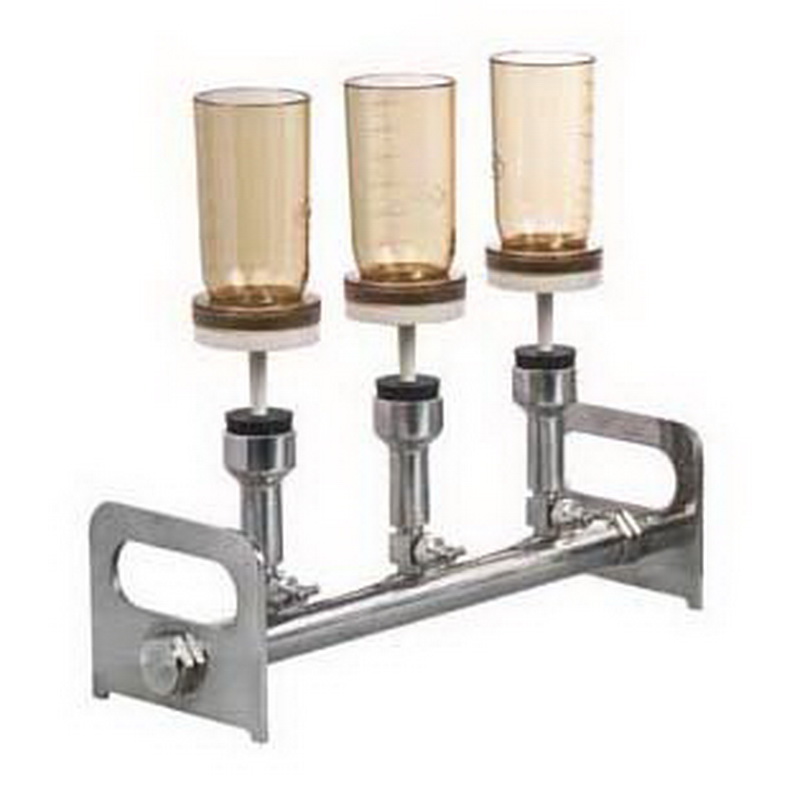

167112-31 | BioVac 3-position stainless steel filtration manifold (BioVac351)








Key Features

  • Constructed of high grade stainless steel for chemical resistance
  • Three filter positions each with individual control valve
  • Offered in three versions that combine the manifold with a Polyethersulfone (PES) magnetic filter funnel of various sizes (please see below).
  • Filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).

Product Description

The 3-position BioVac351 filtration manifold is constructed from high grade stainless steel for chemical resistance. Each of the three filter positions on the manifold is fitted with a control valve.

Three versions are available that combine the manifold with a Polyethersulfone (PES) magnetic filter funnel of various sizes (please see below).

The BioVac351 filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).

Available Options

Model
Number
Part
Number
Dimensions
(W x D x H)
Filter Cup Capacity
BioVac351167112-31500 mm x 150 mm x 300 mm3 x 150 mL magnetic filter funnels*
BioVac353167112-33500 mm x 150 mm x 300 mm3 x 300 mL magnetic filter funnels*
BioVac355167112-35500 mm x 150 mm x 330 mm3 x 500 mL magnetic filter funnels*

*Each filter funnel consists of a Polyethersulfone (PES) filter cup, a Polypropylene membrane support, a PES filter base, and a silicon rubber manifold plug.

Options for Assembly of Complete Multi-position Filtration Systems

Model NumberProduct Description
Vacuum Pumps
167400V400 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 34 L/min
167600V600 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 60 L/min
167410V410 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 19 L/min
167610V610 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 40 L/min
Suction Bottles
167200-311 L suction bottle
167200-322 L suction bottle
167200-333 L suction bottle
Silicon Tubing
167021-01Silicon tubing: OD 14 mm: ID 8 mm: Length 1 m
Filter Membranes
167100-20Fiberglass filter membranes: Diameter 47 mm: Pore size 1 µm

Specifications

ManufacturerWiggens
Model numbersBioVac351 | BioVac 353 | BioVac 355
Number of filter positions3
Filter diameter47 mm/ 50 mm
Effective filtration area96 mm²
Outlet8 mm
Overall dimensionsPlease see Available Options above
Filter cup materialPolyethersulfone (PES)
Filter cup capacityPlease see Available Options above
Product configurationPlease see Available Options above
