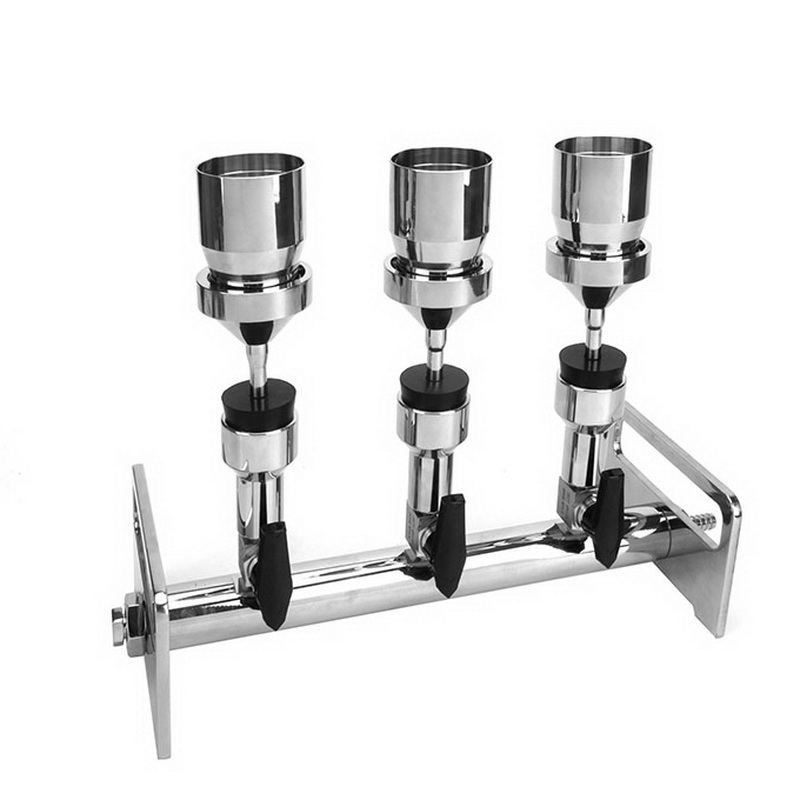

167111-31 | BioVac 3-position stainless steel filtration manifold (BioVac341)








Key Features

  • Constructed of high grade SS316 Stainless Steel for chemical resistance
  • Three filter positions each with individual control valve
  • Offered in three versions that combine the manifold with 100 mL, 300 mL or 500 mL Stainless Steel filter funnels (please see below).
  • Filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).

Product Description

The 3-position BioVac341 filtration manifold is constructed from high grade SS316 Stainless Steel for chemical resistance. The BioVac341 is offered in three  versions that combine the manifold with 100 mL, 300 mL or 500 mL Stainless Steel filter funnels (please see below). Each filtration position has an individual control valve so that a position or positions can be isolated if not in use.

The BioVac341 filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).

Available Versions

Model
Number
Part
Number
Dimensions
(W x D x H)
Filter Funnels
BioVac341167111-31500 mm x 150 mm x 230mm3 x 100 mL stainless steel filter funnels*
BioVac343167111-33500 mm x 150 mm x 270 mm3 x 300 mL stainless steel filter funnels*
BioVac345167111-35500 mm x 150 mm x 300 mm3 x 500 mL stainless steel filter funnels*

* Each filter funnel consists of a Stainless Steel filter cup, support screen and filter base, and a silicon rubber manifold plug.

Options for Assembly of Complete Multi-position Filtration Systems

Model NumberProduct Description
Vacuum Pumps
167400V400 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 34 L/min
167600V600 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 60 L/min
167410V410 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 19 L/min
167610V610 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 40 L/min
Suction Bottles
167200-311 L suction bottle
167200-322 L suction bottle
167200-333 L suction bottle
Silicon Tubing
167021-01Silicon tubing: OD 14 mm: ID 8 mm: Length 1 m
Filter Membranes
167100-20Fiberglass filter membranes: Diameter 47 mm: Pore size 1 µm
167100-52Mixed cellulose ester (MCE) filter membranes: Diameter 47 mm: Pore size 0.45 µm

Specifications

ManufacturerWiggens
Model numberBioVac341 | BioVac343 | BioVac345
Number of filtration positions3
Filter diameter47 mm
Effective filtration area96 mm²
Outlet8 mm
Overall dimensionsPlease see Available Options above
Filter cup materialStainless Steel
Filter cup capacityPlease see Available Options above
Product configurationPlease see Available Options above
