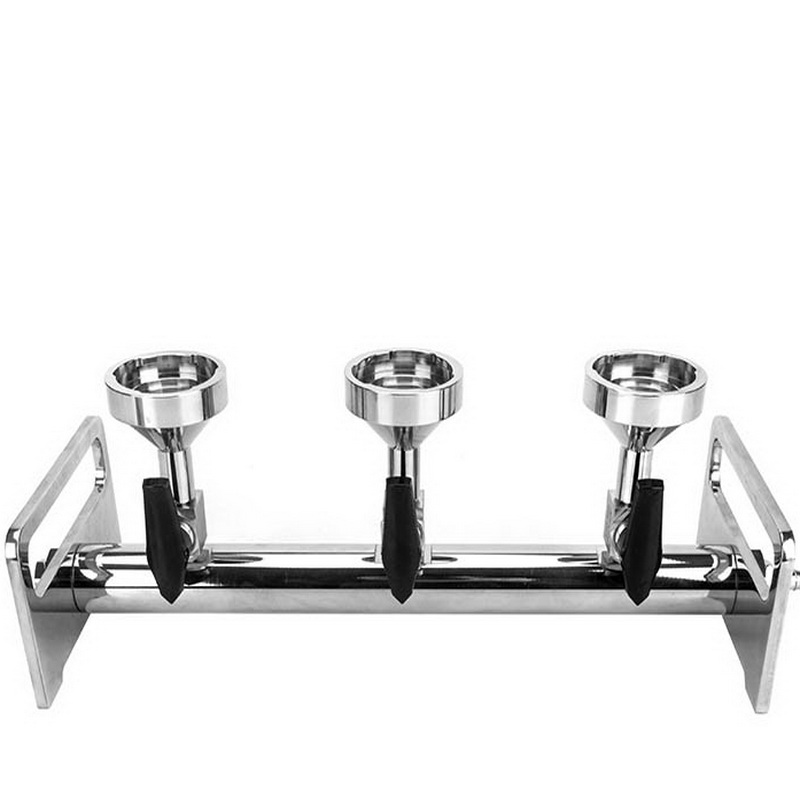

167103-23 | BioVac 3-position stainless steel filtration manifold (BioVac330)








Key Features

  • Constructed of high grade stainless steel (SS316)
  • Chemically-resistant
  • Three filter positions each with individual control valve
  • Offered as the filtration manifold only or as three other versions that combine the manifold with 100 mL, 300 mL or 500 mL filter funnels (please see below).
  • Filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).

    Product Description

    The 3-position BioVac330 filtration manifold is constructed from high grade SS316 Stainless Steel for high chemical resistance. The BioVac330 is offered as the filtration manifold only or as three other versions that combine the manifold  with 100 mL, 300 mL or 500 mL Stainless Steel filter funnels (please see below). Each filtration position has an individual control valve so that a position or positions can be isolated if not in use.

    The BioVac330 filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).

    Available Options

    Model
    Number
    Part
    Number
    Dimensions
    (W x D x H)
    Filter Funnel
    BioVac330167103-23500 mm x 150 mm x 140 mmNone. Manifold only.
    BioVac331167103-24500 mm x 150 mm x 200 mm3 x 100 mL stainless steel filter funnels
    BioVac333167101-23500 mm x 150 mm x 230 mm3 x 300 mL stainless steel filter funnels
    BioVac335167101-24500 mm x 150 mm x 260 mm3 x 500 mL stainless steel filter funnels

    Filter Options

    Part NumberProduct Description
    167103-61Stainless Steel filter cup: cylinder type: 100 mL
    167103-63Stainless Steel filter cup: cylinder type: 300 mL
    167103-65Stainless Steel filter cup: cylinder type: 500 mL
    167103-11Stainless Steel filter cup lid: for 100 mL cylinder type filter cup
    167103-13Stainless Steel filter cup lid: for 300 mL cylinder type filter cup
    167103-15Stainless Steel filter cup lid: for 500 mL cylinder type filter cup


    Options for Assembly of Complete Multi-position Filtration Systems

    Model NumberProduct Description
    Vacuum Pumps
    167400V400 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 34 L/min
    167600V600 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 60 L/min
    167410V410 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 19 L/min
    167610V610 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 40 L/min
    Suction Bottles
    167200-311 L suction bottle
    167200-322 L suction bottle
    167200-333 L suction bottle
    Silicon Tubing
    167021-01Silicon tubing: OD 14 mm: ID 8 mm: Length 1 m
    Filter Membranes
    167100-20Fiberglass filter membranes: Diameter 47 mm: Pore size 1 µm:
    167100-52Mixed cellulose ester (MCE) filter membranes: Diameter 47 mm: Pore size 0.45 µm

    Specifications

    ManufacturerWiggens
    Model numbersBioVac 330 | BioVac 331 | BioVac 333 | BioVac335
    Number of filter positions3
    Filter diameter47 mm
    Effective filtration area96 mm²
    Outlet8 mm
    Overall dimensionsPlease see Available Options above
    Filter cup materialStainless Steel
    Filter cup capacityPlease see Available Options above
    Product configurationPlease see Available Options above
