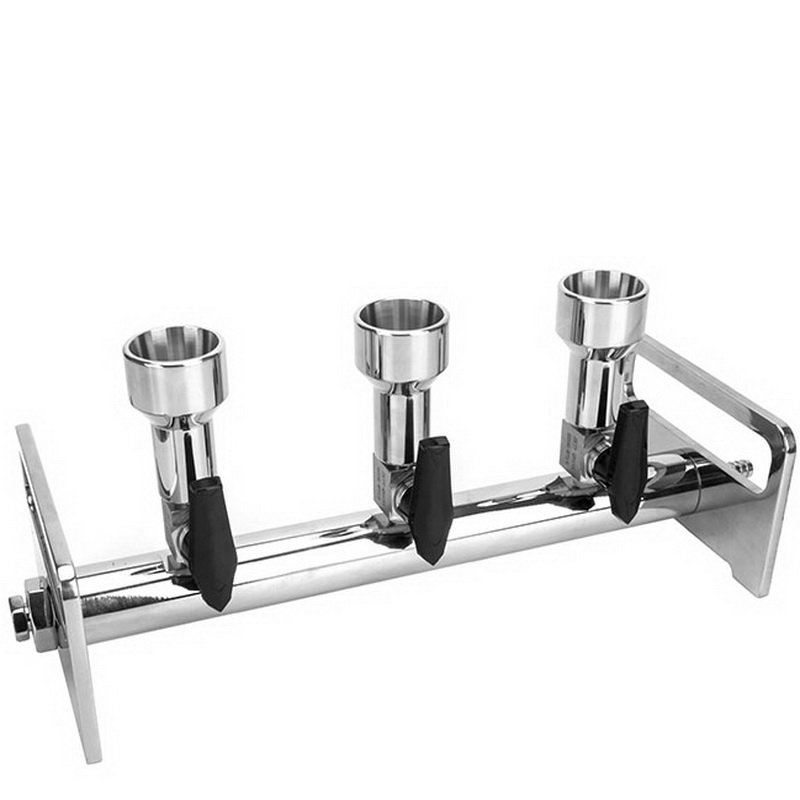

167110-23 | BioVac 3-position stainless steel filtration manifold (BioVac320)








Key Features

  • Constructed of high grade stainless steel (SS316)
  • Chemically-resistant
  • Three filter positions each with individual control valve
  • Supplied as filtration manifold only. A range of Polyethersulfone, Borosilicate glass and Stainless Steel filter funnel options are available (please see below).
  • Filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).

Product Description

The 3-position BioVac320 filtration manifold is constructed from high grade SS316 Stainless Steel for high chemical resistance. The three filter positions can hold a range of Polyethersulfone (PES), Borosilicate glass, or Stainless Steel filter funnel options with various liquid capacities (please see below). Each filtration position has an individual control valve so that a position or positions can be isolated if not in use.

The BioVac320 filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).

Filter Funnel Options

Part NumberProduct Description
167130-15PES filter funnel with magnetic base (Pall 4247 funnel): 150 mL
167100-18PES filter funnel with magnetic base (Pall 4242 funnel): 300 mL
167130-50PES filter funnel with magnetic base (Pall 4238 funnel): 500 mL
167120-31Borosilicate glass filter funnel, 250 mL: consists of 250 mL glass filter cup, aluminium clamp, 47 mm glass filter base and silicon rubber stopper connection to manifold
167120-33Borosilicate glass filter funnel with micro-strainer, 250 mL: consists of 250 mL glass filter cup, aluminium clamp, stainless steel support screen, PTFE gasket, 47 mm glass filter base and silicon rubber stopper connection to manifold
167103-10Stainless Steel filter funnel, 100 mL: consists of 100 mL Stainless Steel funnel, support screen and 47 mm filter base, and silicon rubber stopper connection to manifold
167103-30Stainless Steel funnel, 300 mL: consists of 300 mL Stainless Steel funnel, support screen and  47 mm filter base, and silicon rubber stopper connection to manifold
167103-50Stainless Steel funnel, 500 mL: consists of 500 mL Stainless Steel funnel, support screen and  47 mm filter base, and silicon rubber stopper connection to manifold


Options for Assembly of Complete Multi-position Filtration Systems

Model NumberProduct Description
Vacuum Pumps
167400V400 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 34 L/min
167600V600 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 60 L/min
167410V410 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 19 L/min
167610V610 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 40 L/min
Suction Bottles
167200-311 L suction bottle
167200-322 L suction bottle
167200-333 L suction bottle
Silicon Tubing
167021-01Silicon tubing: OD 14 mm: ID 8 mm: Length 1 m
Filter Membranes
167100-20Fiberglass filter membranes: Diameter 47 mm: Pore size 1 µm:
167100-52Mixed cellulose ester (MCE) filter membranes: Diameter 47 mm: Pore size 0.45 µm

Specifications

ManufacturerWiggens
Model numberBioVac320
Number of filter positions3
Filter diameter47 mm
Effective filtration area96 mm²
Outlet8 mm
Overall dimensions500 mm x 150 mm x 120 mm
Filter cup materialPlease see Filter Options above
Filter cup capacityPlease see Filter Options above
Product configurationFiltration manifold only (filter funnels sold separately)
