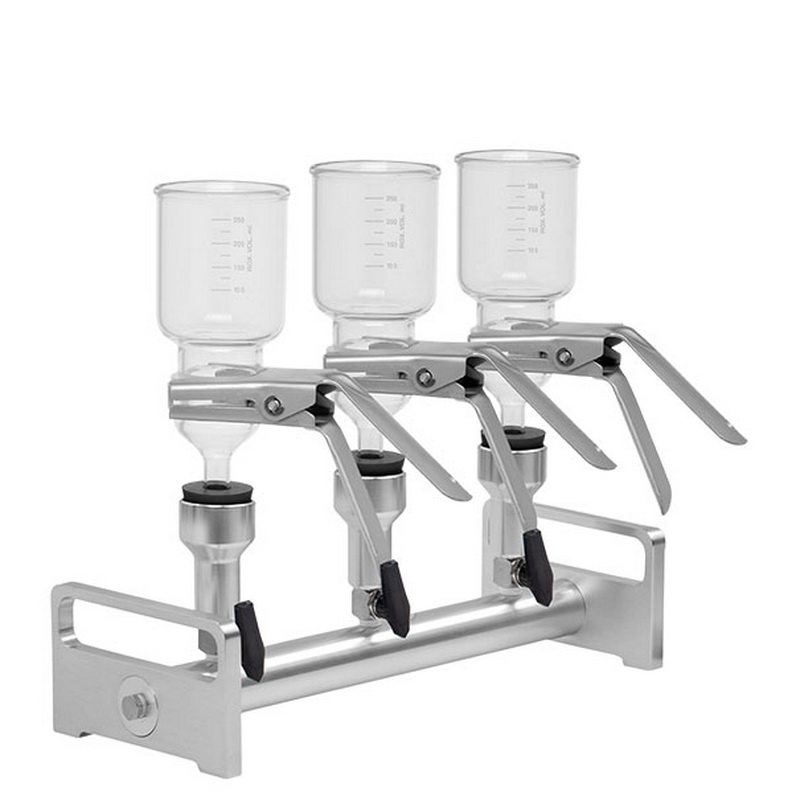

167203-23 | BioVac 3-position aluminium filtration manifold (BioVac323)
Key Features
- Constructed of high grade aluminium
- Lightweight
- Three filter positions each with individual control valve
- Offered in two versions that combine the manifold with either three borosilicate glass funnels or three borosilicate glass funnels with a micro-strainer (please see below).
- Filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).
Product Description
The 3-position BioVac323 filtration manifold is constructed from high grade aluminium for lightness. Each of the three filter positions on the manifold is fitted with a control valve.
Two versions are available that combine the manifold with either three borosilicate glass funnels or three borosilicate glass funnels with a micro-strainer (please see below).
The BioVac323 filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).
Available Versions
| Model Number | Part Number | Dimensions (W x D x H) | Filter Cup Capacity |
| BioVac323 | 167203-23 | 500 mm x 150 mm x 300 mm | 3 x 250 mL borosilicate glass funnel* |
| BioVac324 | 167203-24 | 500 mm x 150 mm x 300 mm | 3 x 250 mL borosilicate glass funnel with micro-strainer** |
*Each filter funnel consists of a 250 mL glass filter cup, an aluminium clamp, a 47 mm glass filter base, and a silicon rubber manifold plug.
** Each filter funnel consists of a 250 mL glass filter cup, an aluminium clamp, a Stainless Steel support screen with PTFE gasket, a 47 mm glass filter base, and a silicon rubber manifold plug.
Options for Assembly of Complete Multi-position Filtration Systems
| Model Number | Product Description |
| Vacuum Pumps | |
| 167400 | V400 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 34 L/min |
| 167600 | V600 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 60 L/min |
| 167410 | V410 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 19 L/min |
| 167610 | V610 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 40 L/min |
| Suction Bottles | |
| 167200-31 | 1 L suction bottle |
| 167200-32 | 2 L suction bottle |
| 167200-33 | 3 L suction bottle |
| Silicon Tubing | |
| 167021-01 | Silicon tubing: OD 14 mm: ID 8 mm: Length 1 m |
| Filter Membranes | |
| 167100-20 | Fiberglass filter membranes: Diameter 47 mm: Pore size 1 µm |
| 167100-52 | Mixed cellulose ester (MCE) filter membranes: Diameter 47 mm: Pore size 0.45 µm |
Specifications
| Manufacturer | Wiggens |
| Model number | BioVac323 | BioVac324 |
| Number of filter positions | 3 |
| Filter diameter | 47 mm/ 50 mm |
| Effective filtration area | 96 mm² |
| Outlet | 8 mm |
| Overall dimensions | Please see Available Options above
|
| Filter cup material | Borosilicate glass |
| Filter cup capacity | 250 mL |
| Product configuration | Please see Available Options above
|
