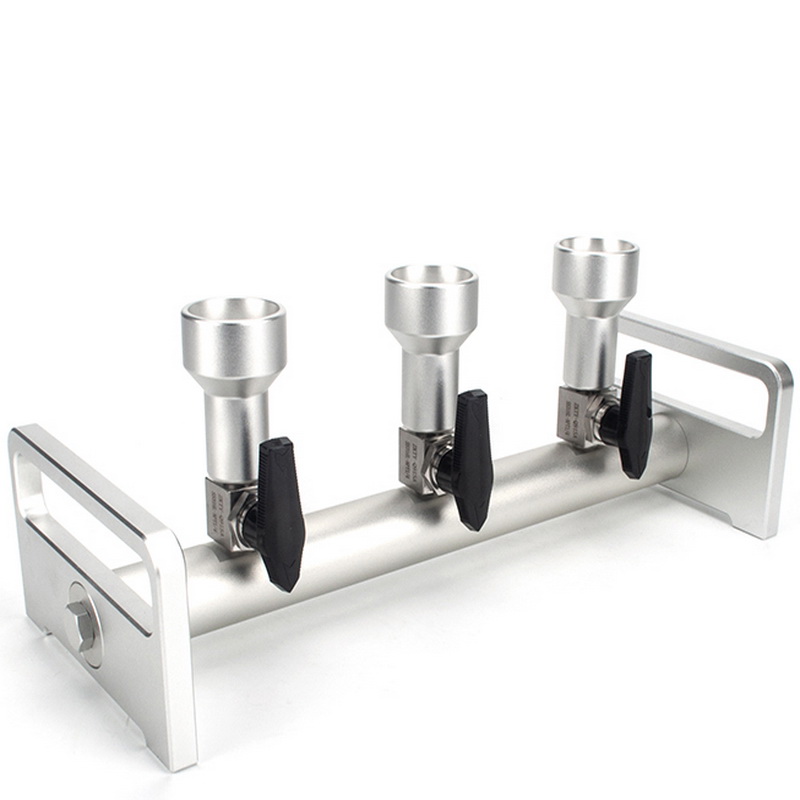

167200-43 | BioVac 3-position aluminium filtration manifold (BioVac321)

Key Features

• Constructed of high grade anodised aluminium
• Lightweight
• Three filter positions each with individual control valve
• Supplied as filtration manifold only. A range of Polyethersulfone, Borosilicate glass and Stainless Steel filter funnel options are available (please see below).
• Filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).

Product Description

The 3-position BioVac321 filtration manifold is constructed from high grade aluminium for lightness. The three filter positions can hold a range of Polyethersulfone (PES), Borosilicate glass, or Stainless Steel filter funnel options with various liquid capacities (please see below). Each filtration position has an individual control valve so that a position or positions can be isolated if not in use.

The BioVac321 filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).

Filter Funnel Options

Part Number	Product Description
167130-15	PES filter funnel with magnetic base (Pall 4247 funnel): 150 mL
167100-18	PES filter funnel with magnetic base (Pall 4242 funnel): 300 mL
167130-50	PES filter funnel with magnetic base (Pall 4238 funnel): 500 mL
167120-31	Borosilicate glass filter funnel, 250 mL: consists of 250 mL glass filter cup, aluminium clamp, 47 mm glass filter base and silicon rubber stopper connection to manifold
167120-33	Borosilicate glass filter funnel with micro-strainer, 250 mL: consists of 250 mL glass filter cup, aluminium clamp, stainless steel support screen, PTFE gasket, 47 mm glass filter base and silicon rubber stopper connection to manifold
167103-10	Stainless steel filter funnel, 100 mL: consists of 100 mL stainless steel funnel, stainless steel support screen, 47 mm stainless steel filter base and silicon rubber stopper connection to manifold
167103-30	Stainless steel filter funnel, 300 mL: consists of 300 mL stainless steel funnel, stainless steel support screen, 47 mm stainless steel filter base and silicon rubber stopper connection to manifold
167103-50	Stainless steel filter funnel, 500 mL: consists of 500 mL stainless steel funnel, stainless steel support screen, 47 mm stainless steel filter base and silicon rubber stopper connection to manifold

Options for Assembly of Complete Multi-position Filtration Systems

Model Number	Product Description
Vacuum Pumps
167400	V400 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 34 L/min
167600	V600 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 60 L/min
167410	V410 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 19 L/min
167610	V610 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 40 L/min
Suction Bottles
167200-31	1 L suction bottle
167200-32	2 L suction bottle
167200-33	3 L suction bottle
Silicon Tubing
167021-01	Silicon tubing: OD 14 mm: ID 8 mm: Length 1 m
Filter Membranes
167100-20	Fiberglass filter membranes: Diameter 47 mm: Pore size 1 µm:
167100-52	Mixed cellulose ester (MCE) filter membranes: Diameter 47 mm: Pore size 0.45 µm

Specifications

Manufacturer	Wiggens
Model number	BioVac321
Number of filter positions	3
Filter diameter	47 mm
Effective filtration area	96 mm²
Outlet	8 mm
Overall dimensions	500 mm x 150 mm x 120 mm
Filter cup material	Please see Filter Options above
Filter cup capacity	Please see Filter Options above
Product configuration	Filtration manifold only (filter funnels sold separately)
