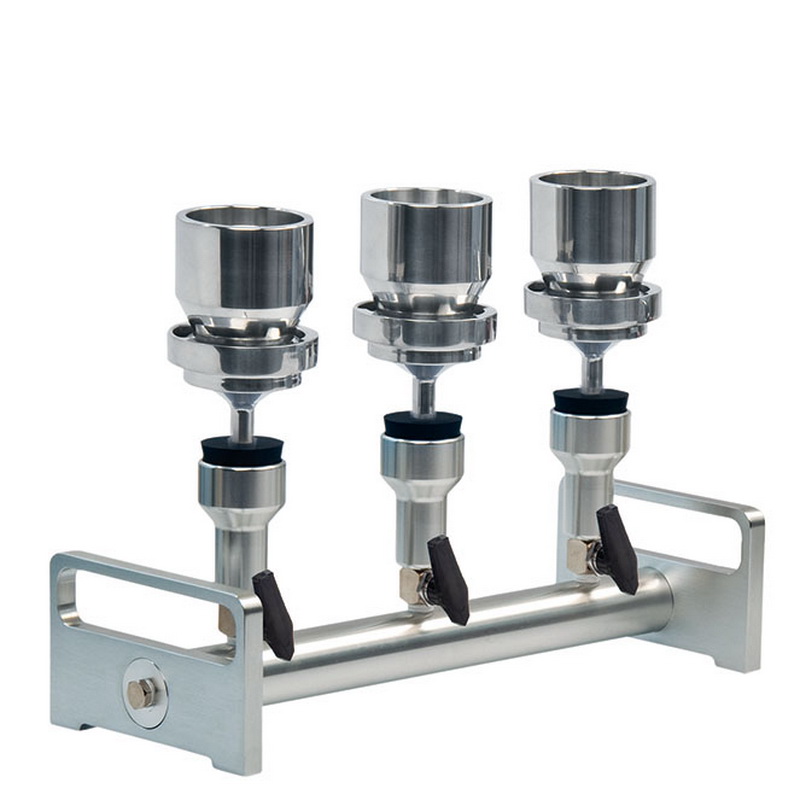

167201-31 | BioVac 3-position aluminium filtration manifold (BioVac311)
Key Features
- Constructed of high grade anodised aluminium
- Lightweight
- Three filter positions each with individual control valve
- Offered in three versions that combine the manifold with 100 mL, 300 mL or 500 mL Stainless Steel filter funnels (please see below).
- Filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).
Product Description
The 3-position BioVac311 filtration manifold is constructed from high grade aluminium for lightness. The BioVac311 is offered in three other versions that combine the manifold with 100 mL, 300 mL or 500 mL Stainless Steel filter funnels (please see below). Each filtration position has an individual control valve so that a position or positions can be isolated if not in use.
The BioVac311 filtration manifold can be combined with vacuum pumps, filter funnels, suction bottles and a range of filter membranes to assemble complete filtration systems for a wide range of laboratory and industrial applications (please see below).
Available Options
| Model Number | Part Number | Dimensions (W x D x H) | Filter Funnels |
| BioVac311 | 167201-31 | 500 mm x 150 mm x 230mm | 3 x 100 mL stainless steel filter funnels |
| BioVac313 | 167201-33 | 500 mm x 150 mm x 270 mm | 3 x 300 mL stainless steel filter funnels |
| BioVac315 | 167201-35 | 500 mm x 150 mm x 300 mm | 3 x 500 mL stainless steel filter funnels |
Options for Assembly of Complete Multi-position Filtration Systems
| Model Number | Product Description |
| Vacuum Pumps | |
| 167400 | V400 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 34 L/min |
| 167600 | V600 oil-free piston vacuum pump, maximum vacuum 100 mbar, maximum flow rate 60 L/min |
| 167410 | V410 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 19 L/min |
| 167610 | V610 oil-free piston vacuum pump, maximum vacuum 30 mbar, maximum flow rate 40 L/min |
| Suction Bottles | |
| 167200-31 | 1 L suction bottle |
| 167200-32 | 2 L suction bottle |
| 167200-33 | 3 L suction bottle |
| Silicon Tubing | |
| 167021-01 | Silicon tubing: OD 14 mm: ID 8 mm: Length 1 m |
| Filter Membranes | |
| 167100-20 | Fiberglass filter membranes: Diameter 47 mm: Pore size 1 µm |
| 167100-52 | Mixed cellulose ester (MCE) filter membranes: Diameter 47 mm: Pore size 0.45 µm |
Specifications
| Manufacturer | Wiggens |
| Model number | BioVac311 | BioVac 313 | BioVac 315 |
| Number of filter positions | 3 |
| Filter diameter | 47 mm |
| Effective filtration area | 96 mm² |
| Outlet | 8 mm |
| Overall dimensions | Please see Available Options above
|
| Filter cup material | Stainless Steel |
| Filter cup capacity | Please see Available Options above
|
| Product configuration | Please see Available Options above
|
