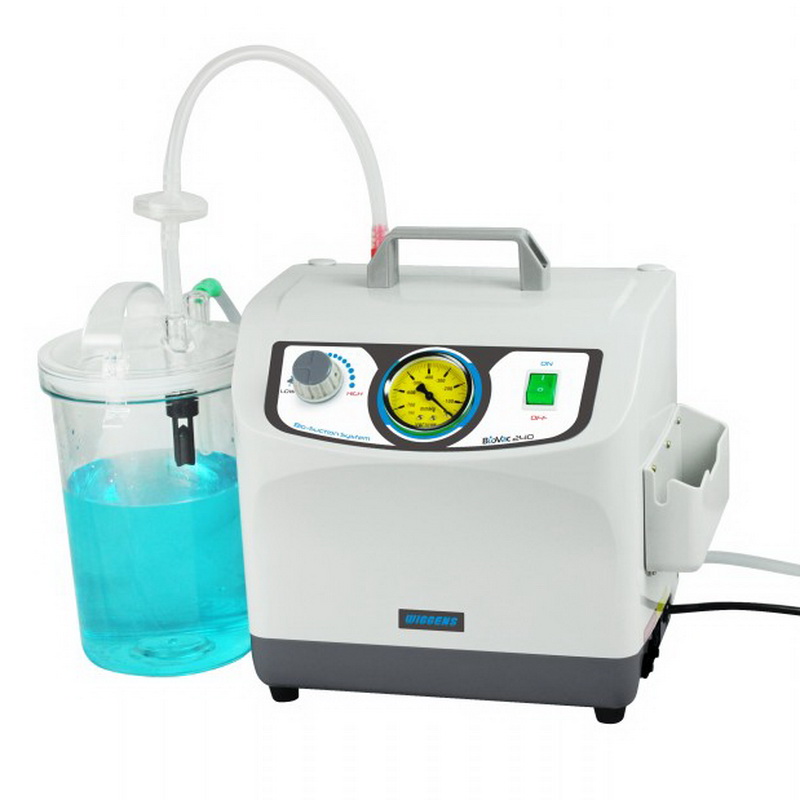

W1080240 | Portable aspirator pump with 3 L suction bottle for waste liquid removal, maximum flow rate 40 L/min (BioVac 240)








Key Features

  • Ideal for a wide range of industrial or laboratory waste liquid removal applications
  • Vacuum generation by a twin diaphragm low noise piston pump that is wear-resistant, non-polluting and maintenance-free
  • Maximum vacuum of 80 mbar and maximum flow rate of 40 L/min
  • Double overflow protection
  • ABS and aluminium construction
  • Autoclavable 3 L suction bottle and disc filter

Description

The BioVac 240 portable aspirator pump from Wiggens is ideal for a wide range of waste liquid removal applications in both industrial and laboratory environments. A maximum vacuum of 80 mbar is created by a twin diaphragm low noise piston pump that is wear-resistant, non-polluting and maintenance-free that can generate flow rates up to 40 L/min.

The BioVac 240 is double-protected by a built-in float switch and a 0.2 μm PTFE hydrophobic disc ­filter located between the suction bottle and the pump that prevents fluids and solid contaminants from entering the pump.

The aspirator pump is constructed of ABS and aluminium alloy for easy cleaning and the suction bottle and disc filter are autoclavable.

Purchasing Information

The BioVac 240 is supplied with a 1  x 3000 mL suction bottle and a single branch suction head.

Specifications

Manufacturer
Wiggens
Model
BioVac 240
Vacuum creation method
Piston pump
Power
200 W
Maximum vacuum
80 mbar
Maximum flow rate
40 L/min
Weight
12 Kg
Dimensions
540 mm x 260 mm x 350 mm
Suction bottle
1 x 3000 mL
