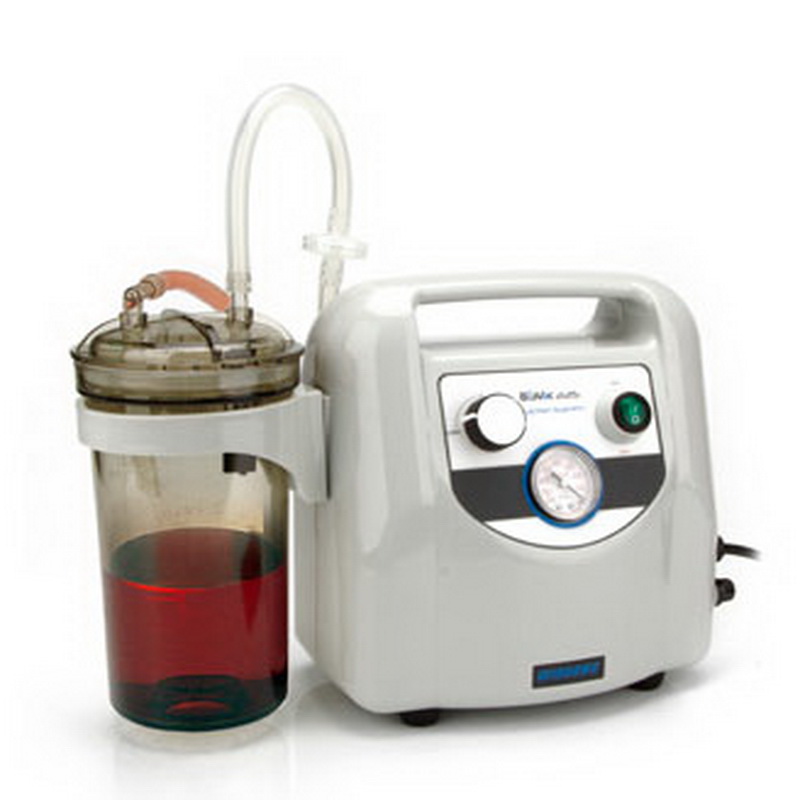

167225-22-P | BioVac 225 PLUS portable aspirator pump for waste liquid removal, maximum flow rate 25 L/min








Key Features

  • Ideal for a wide range of industrial or laboratory waste liquid removal applications
  • Vacuum generation by a twin diaphragm low noise piston pump that is wear-resistant, non-polluting and maintenance-free
  • Maximum vacuum of 100 mbar and maximum flow rate of 25 L/min
  • Double overflow protection
  • ABS and aluminium construction
  • Autoclavable suction bottle and disc filter
  • Supplied with suction accessories (please see below)

Description

The BioVac 225 PLUS portable aspirator pump from Wiggens is ideal for a wide range of waste liquid removal applications in both industrial and laboratory environments. A maximum vacuum of 100 mbar is created by a twin diaphragm low noise piston pump that is wear-resistant, non-polluting and maintenance-free that can generate flow rates up to 25 L/min.

The BioVac 225 PLUS is double-protected by a built-in float switch and a 0.2 μm PTFE hydrophobic disc ­filter located between the suction bottle and the pump that prevents fluids and solid contaminants from entering the pump.

The aspirator pump is constructed of ABS and aluminium alloy for easy cleaning and the suction bottle and disc filter are autoclavable.

Purchasing Information

The BioVac 225 PLUS is supplied with a 1000 mL suction bottle and the following suction items:

  • Single-branch suction head
  • Single-branch stainless steel suction head
  • 8-branch stainless steel suction head
  • Handheld controller

Specifications

Manufacturer
Wiggens
Model
BioVac 225 PLUS
Vacuum creation method
Piston pump
Power
25 W
Maximum vacuum
100 mbar
Maximum flow rate
25 L/min
Weight
4.3 Kg
Dimensions
370 mm x 150 mm x 250 mm
Suction bottle
1 x 1000 mL
