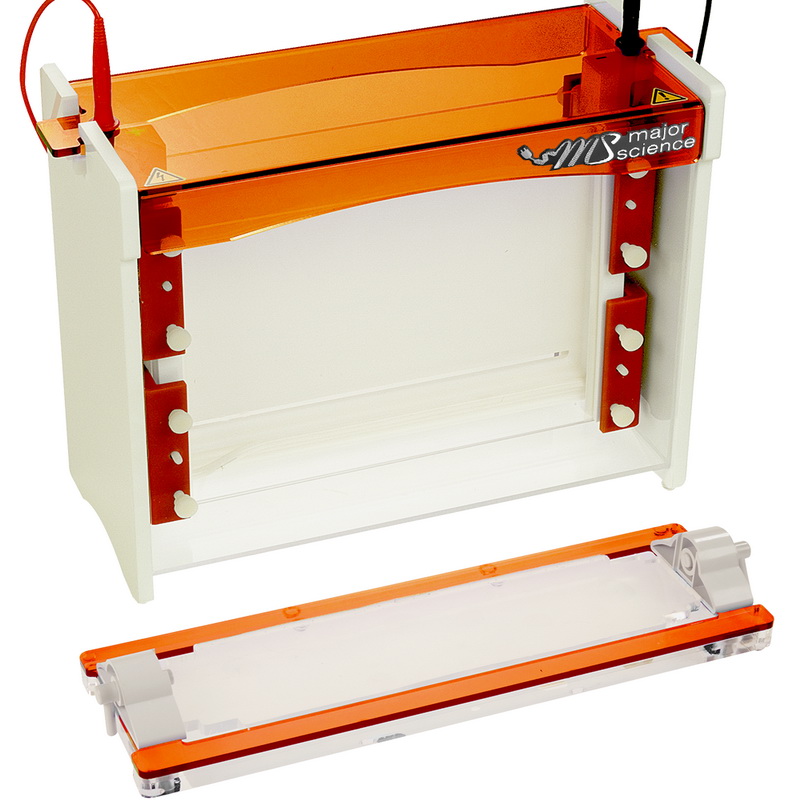

MV-30DSYS | Vertical gel electrophoresis system for up to four gels








Key Features

  • Ideal for second dimension electrophoresis
  • Compatible with 240 mm IPG strips
  • Rapid set-up cool packs enhance resolution particularly during extended runs

Description

The Maxi Plus Vertical Electrophoresis System (MV-30DSYS) from Major Science is a large format vertical unit developed for running large quantities of samples at once. It is also designed as a convenient, large format vertical unit for second-dimension PAGE following first-dimension isoelectric focusing using the MIEF system.

Ordering Information

Part NumberProduct Description
MV-30DSYSMaxi Plus Vertical Electrophoresis System with base unit
MV-30-1-1
Comb 1 Prep, 1 Marker, 1 mm thick, 2250 uL sample volume
MV-30-2-1
Comb 2 samples, 1 mm thick, 1125 uL sample volume
MV-30-4-1
Comb 4 samples, 1 mm thick, 550 uL sample volume
MV-30-28MC-1
Comb 28 samples, 1 mm thick, MC compatible, 80 uL sample volume
MV-30-56MC-1
Comb 56 samples, 1 mm thick, MC compatible, 40 uL sample volume
MV-30-75-1
Comb 75 samples, 1 mm thick, 25 uL sample volume
MV-30-1-1.5
Comb 1 Prep, 1 Marker, 1.5 mm thick, 3375 uL sample volume
MV-30-2-1.5
Comb 2 samples, 1.5 mm thick, 1680 uL sample volume
MV-30-4-1.5
Comb 4 samples, 1.5 mm thick, 825 uL sample volume
MV-30-28MC-1.5
Comb 28 samples, 1.5 mm thick, MC compatible, 120 uL sample volume
MV-30-56MC-1.5
Comb 56 samples, 1.5 mm thick, MC compatible, 60 uL sample volume
MV-30-75-1.5
Comb 75 samples, 1.5 mm thick, 37 uL sample volume


Specifications

Manufacturer
Major Science
Catalog numberMV-30DSYS
Dimensions (W x D x H)360 mm x 180 mm x 330 mm
Plate dimensions (W x D)
300 mm x 220 mm
Gel dimensions (W x D)280 mm x 200 mm
Maximum number of samples300 samples per run, 75 samples per gel
Buffer volume1800 mL - 8400 mL
Comb options

Number of teeth
1, 2, 4, 28 MC, 56 MC, 75
Thicknesses
0.75 mm, 1 mm, 1.5 mm, 2 mm
