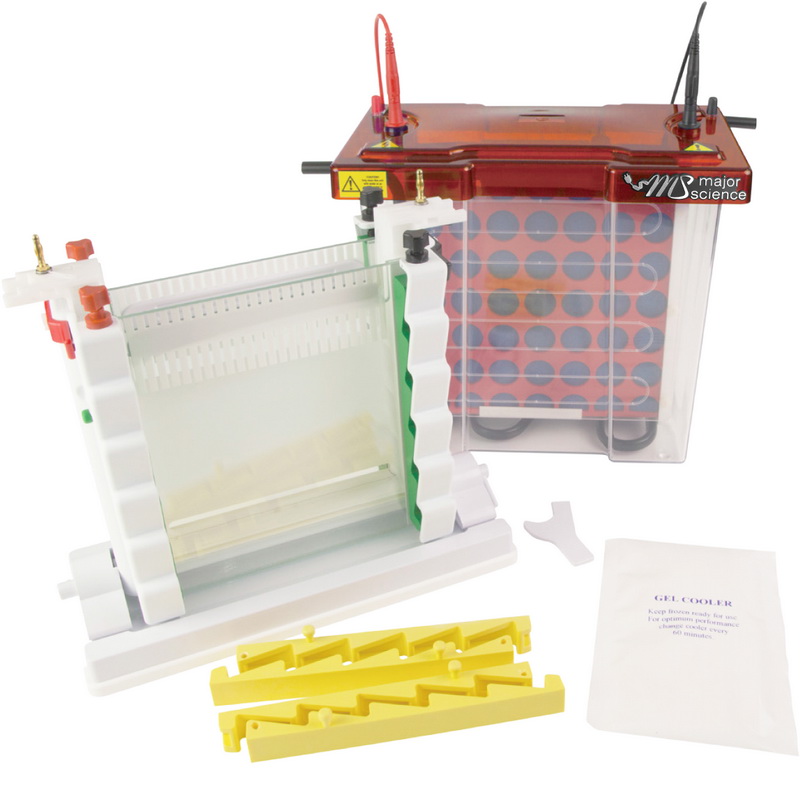

MV-20WAVESYS | Vertical gel electrophoresis system for up to four gels

Key Features

  • Run 2 to 4 gels simultaneously. Wide selection of combs allows separation of up to 192 samples.
  • Customise your system for second-dimension runs with 180 mm IPG strips and gels using the IEF conversion kit
  • Utilise the same universal tank and lid to extend the application of your standard WAVE unit to create a complete 2-D or blotting system by using modular inserts
  • Vertical screw clamps distribute pressure evenly along the height of the gel to prevent plate bowing and gel compression
  • Glass plates compress gently against a flat, level gasket to prevent current leakage from the inner buffer chamber during electrophoresis
  • Detachable inner cooling coil connects to the laboratory water supply or a recirculating chiller to provide uniform, smile-free electrophoresis while allowing runs to be performed at higher voltage
  • Deep gel tank with adequate clearance beneath the glass plates to allow a magnetic stirrer to maintain buffer recirculation and uniform pH
  • Dual purpose PAGE insert eliminates time-consuming transfer of glass plates between separate casting and running modules
  • Ground glass plates with bonded injection-moulded spacers consistent with comb thickness ensure "clean" well formation  as well as the correct alignment for leak-free casting. Also eliminates the need for spacer aligners.
  • Ultra-soft silicone mat within cam-caster compensates for glass plate misalignment to ensure leak-free casting
  • Asymmetric lid design and colour-coded screw pins in PAGE insert prevent polarity reversal


The Maxi WAVE vertical electrophoresis system from Major Science has been specifically developed for large format vertical gel electrophoresis. It is designed to perform a variety of separations including first and second dimension SDS-PAGE, native, preparative, gradient and high-resolution nucleic acid electrophoresis, plus capillary tube gel IEF and electroblotting.

The highly versatile MV-20WAVESYS features innovative vertical screw-clamp technology within the PAGE insert. This gives the MV-20WAVESYS  the advantage of a much shorter  set up time compared to other competitive products. In addition the system's vertical screw-clamp configuration distributes pressure evenly along the height of the gel rather than in the centre to eliminate plate bowing and gel compression while still maintaining a leak-proof seal during casting.

Ordering Information

Part NumberDescription
MV-20WAVESYSComplete Maxi WAVE Vertical Gel Electrophoresis Apparatus, Maxi WAVE 200x200mm Dual, sets of glass plates with 1mm thick bonded spacers, 2x24 sample, 1mm thick combs, cooling coil, dummy plate and casting base


Major Science
Catalog numberMV-20WAVESYS
Dimensions (W x D x H)300 mm x 180 mm x 270 mm
Plate dimensions (W x D)
200 mm x 200 mm x 4 mm
Gel dimensions (W x D)160 mm x 175 mm
Maximum number of samples192 samples, 48 samples per gel
Total buffer volume4800 mL - 5300 mL
Total volume (inner buffer chamber)
640 mL
Cooling method
Cooling coil
Dummy plate and casting base
Tank construction
Injection-moulded construction. Durable and leak-proof.
SafetyTank lid can only be fastened in one way on tank. Power disconnects from buffer chamber when lid removed.
