MV-10WCBS | Vertical gel electrophoresis and blotting system with three or four blot capacity

Key Features

• Interchangeable modules for slab gel and electroblotting using a single universal buffer tank
• Hinged cassettes
• High intensity electrodes
• 3 or 4 blot capacity
• Rapid set-up cooling

Description

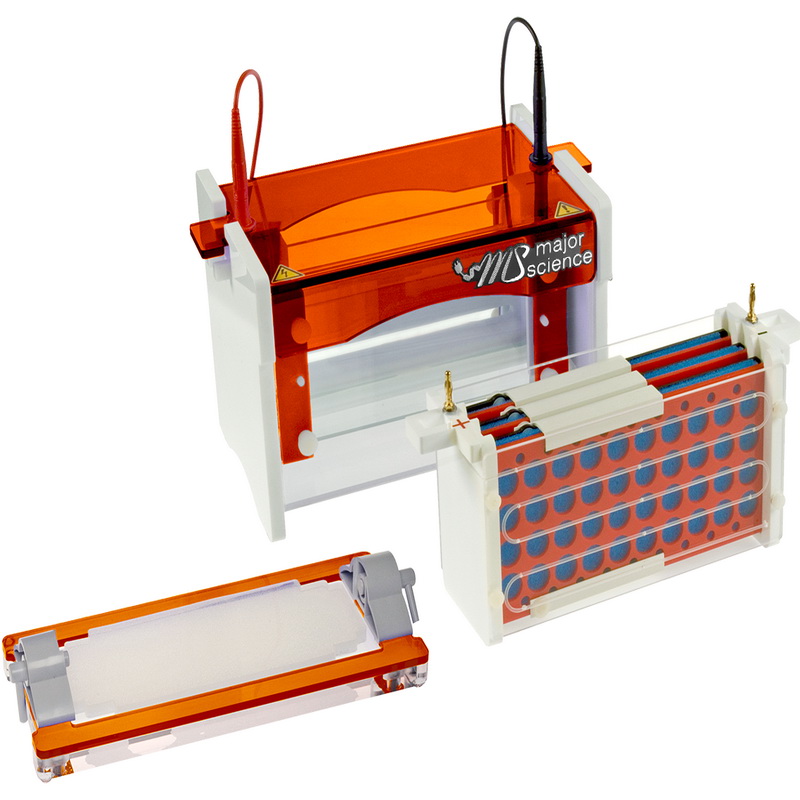

The MV-10WCBS from Major Science includes modules and accessories for a complete gel electrophoresis and electroblotting system.  The electroblotting module includes three inter-locking cassettes and six fibre pads and a high intensity current is generated by coiled platinum electrodes. These features, in conjunction with the advanced cooling system, allow for rapid electroblotting in as little as one hour.

More Information

The complete MV-10WCBS system for vertical electrophoresis and blotting comprises:

1 wide vertical electrophoresis unit including:

• 2 mm x 4 mm thick notched glass plates
• 2 mm x 4 mm thick plain plates with 1 mm thick bounded spacers
• 1 x dummy plate
• 2 x combs for 24 samples, 1mm thick
• 1 x casting base
• 1 x silicone mat
• 1 x cooling pack

1 electroblotting module including:

• 1 x internal electroblotting module
• 4 x Compression cassette for gel size up to 200 mm x 100 mm
• 16 x fibre pads
