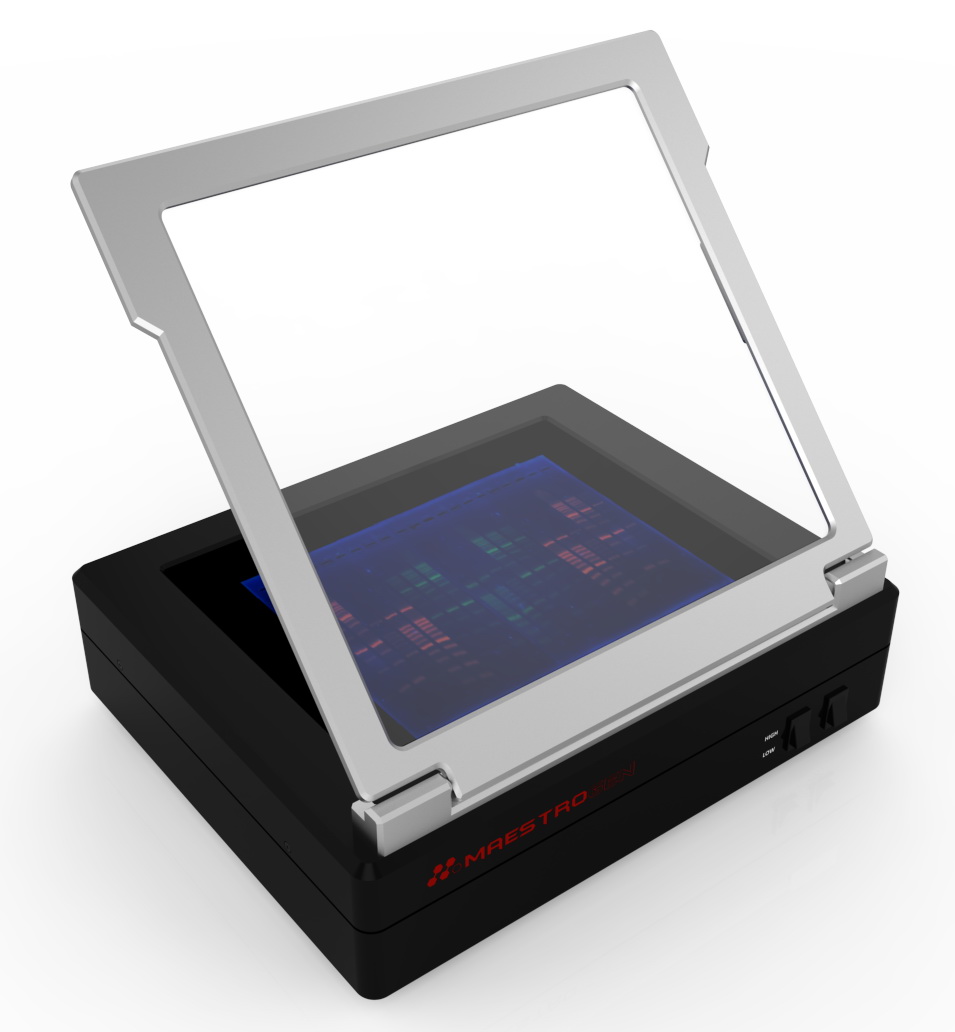

MB-21 | UltraBright UV transilluminator with protective cover for gel imaging and band cutting, 302 nm emission, 260 mm x 210 mm sample viewing area

Key Features

  • Uniform design with ultra-high contrast
  • UV blocking cover adjustable to different angles for easy access to transilluminator surface
  • Ultrasafe UV cover blocks 99.9% of the UV transmittance
  • Strong aluminium alloy frame and shield design prevents UV shield breakage
  • Adjustable intensity from 50% to 100%


This Maestrogen UV transilluminator is ideal for cutting gels stained with fluorescent dyes such as EtBr, SYBR® Safe, SYBR® Gold, SYBR® Green I & II, SYPRO® Ruby, SYPRO® Orange, Coomassie Fluor™ Orange stains, GelGreen, GelRed and Lumitein™ Protein Gel Stain.

The adjustable transilluminator cover blocks almost all UV light and is adjustable to provide optimal access to the transilluminator surface.

Gels illuminated with the UltraBright transilluminators are significantly brighter than those illuminated by conventional transilluminators.


Model number
EtBr: 0.4 ng | SYBR Safe: 0.4 ng |  GelGreen: 0.4 ng | Gel Red: 0.2 ng
Dimensions (W x D x H)
340 mm x 280 mm x 80 mm
Viewing area (W x D)
260 mm x 210 mm
UV tubes
6 x 8 W
302 nm
100 VAC - 240 VAC: 50/60 Hz
4.3 Kg
