V102001 | Ther-Mix programmable thermal mixer for microplates and microcentrifuge tubes

Key Features

• Allows end-users to create and store their own personalised multi-step programmes
• Innovative heated lid (on most thermal modules) provides direct consumable contact to reduce evaporation and improve heating
• Independent control of block and lid temperatures
• User-interchangeable thermal modules support a variety of microplates and microcentrifuge tubes (please see thermal module options below)
• Calibration and control data pre-programmed into each thermal module
• Intuitive touch screen user interface
• 1.5 mm mixing orbit
• Compact design

Description

The Ther-Mix from Vitl Life Science Solutions is a thermal mixer that has been designed for a variety of microplate, microcentrifuge tube and conical tube formats. The Ther-Mix utilises a range of user-interchangeable thermal modules (please see thermal module options below) that allow an end-user to accurately mix and heat samples and create their own single or multiple step mixing programmes. The Ther-Mix requires at least one thermal module for operation.

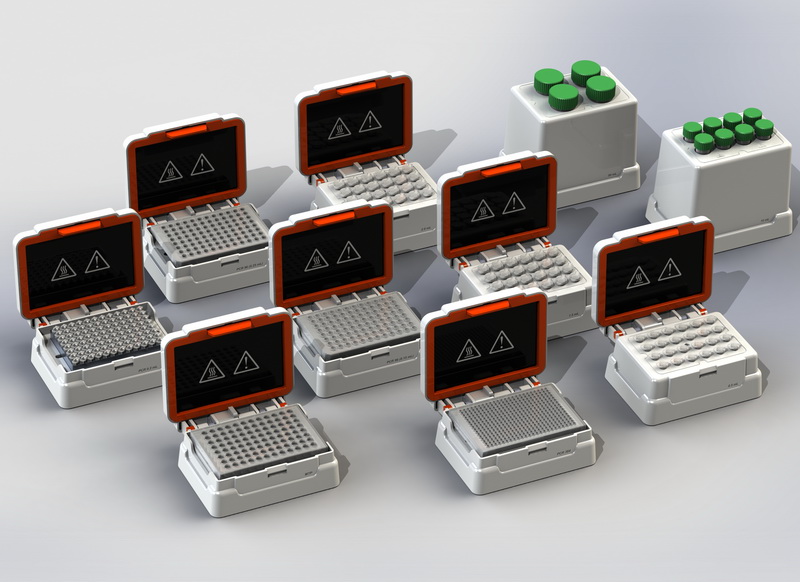

Thermal Modules

A range of advanced thermal modules has been developed for the Ther-Mix programmable thermal mixer. Each thermal module is pre-calibrated to ensure accurate temperature control with no need for thermometers or thermocouples.

These thermal modules feature independent control of sample and lid temperatures to reduce condensation and evaporation and are available for a wide range of consumable types such as microcentrifuge tubes, microplates and larger tubes.

Thermal Module Options

Part Number	Description
V104001	HM01 thermal module with heated lid for 24 x 0.5 mL microcentrifuge tubes
V104002	HM02 thermal module with heated lid for 24 x 1.5 mL microcentrifuge tubes
V104003	HM03 thermal module with heated lid for 24 x 2 mL microcentrifuge tubes
V104004	HM04 thermal module for 8 x 15 mL conical tubes
V104005	HM05 thermal module for 4 x 50 mL conical tubes
V104006	HM06 thermal module for 0.15 mL 96 well PCR plates
V104007	HM07 thermal module for 0.25 mL 96 well PCR plates
V104009	HM09 thermal module for 96 x 0.2 mL PCR tubes

Specifications

Temperature accuracy	±0.1oC
Weight	8 Kg
Speed range:
0 - 80 g load	200 – 3000 rpm
81 – 300 g load	200 – 2000 rpm
Timer range	5 seconds – 28 days
Block heater range	Ambient to 99.9oC (self-limited by some thermal modules)
Lid heater range (where fitted)	Ambient to 105oC
User defined programmes	Storage for up to 100 programmes
Power Supply	100-240 VAC nominal
Dimensions (mm: w x d x h)	190 x 350 x 170 (excluding heated module)
Weight	8 Kg
