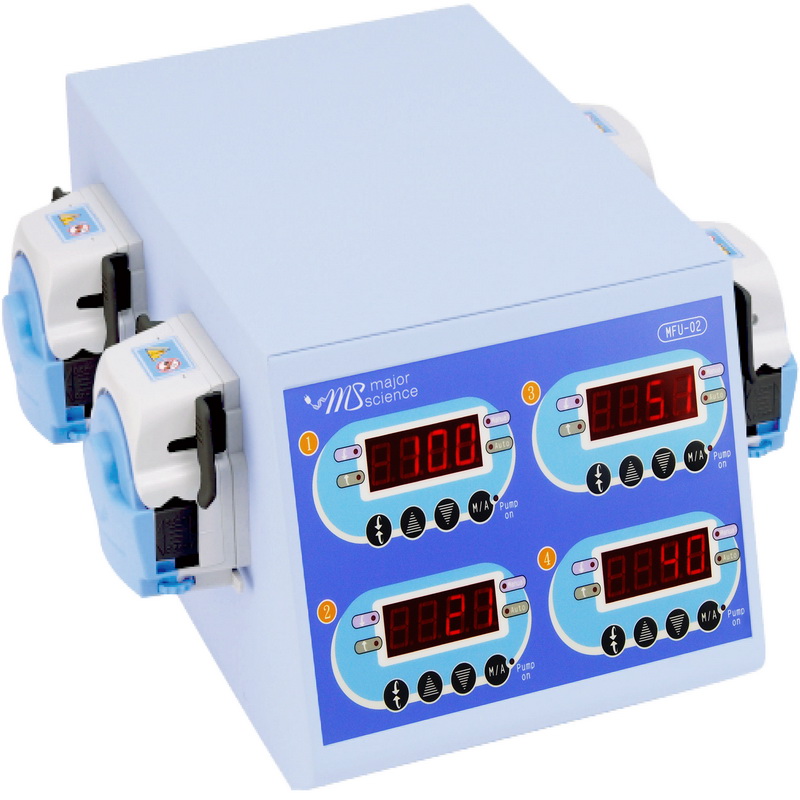

MFU-02 | Major Science tetrad head digital peristaltic pump, maximum flow rate 380 mL/min per pump head








Key Features

  • Four high quality Verderflex easy-load pump heads
  • Independent and precise digital control of each pump head
  • Individual timer with alarm function
  • Compact and portable
  • Reversible for purging purposes
  • Flow rate from 0.6mL - 380mL/min per pump head depending upon tubing diameter

Description

The MFU-02 peristaltic pump from Major Science is equipped with four pump heads that can be controlled separately. A digital microprocessor provides highly accurate control of pump speed and each pump is fitted with a timer with alarm function.

The MFU-02 can be used for a wide range of applications including filtration, circulation, sampling, chemical spraying, dispensing, transferring, feeding and filling. The easy-to-use pump design allows for several different silicon tubing sizes to be fitted onto the unit to provide a wide range of flow rates from which to choose. Pump direction is reversible for purging purposes.

Specifications

 ControllerDigital microprocessor
 MotorStepping motor
 Power100 W
 Pump speed range/ increment1 rpm - 100 rpm/ 1 rpm
 Maximum pump speed100 rpm
 Variable flow rate0.6 mL - 380 mL/min per pump head depending upon tubing diameter)
 Timer99 Hr:59 min:59 sec
 Number of rollers3
 Number of peristaltic pumps4
 Operating temperatureAmbient to 40ÂșC
 Dimensions (W x D x H)265 mm x 340 mm x 180 mm
 ConstructionPainted iron metal
 Weight5.7 Kg
 Voltage240 V
