100 549 | Ultrasonic cleaning bath, stainless steel, 90 L maximum tank capacity, with heating and drain (SW 90H)

Description

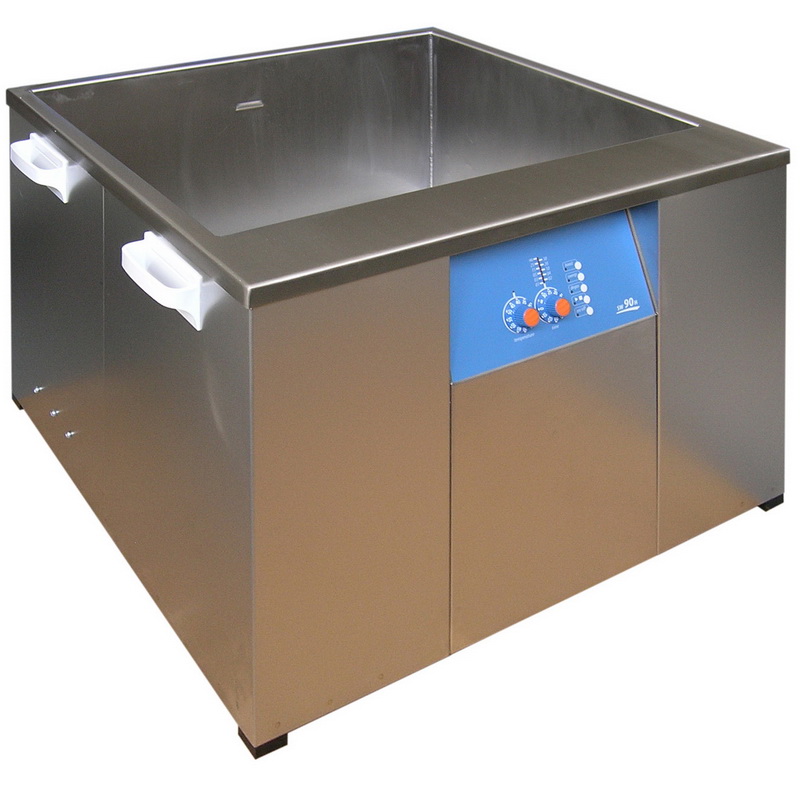

The SW 90H ultrasonic cleaning bath from SonoSwiss is made of the highest quality stainless steel and utilizes powerful piezo transducer systems and microprocessor-controlled generators to provide the ultimate in ultrasound cleaning capability.

Applications for the SW 90H cleaning bath include the cleaning of instruments and the removal of chemical residues, coking and soot from production parts and tools.

The units feature two novel functions that optimize the cleaning process. The first function is called Sweep. The Sweep function creates an even sound distribution to ensure that items are reliably cleaned no matter where they are placed in the bath. The second novel function is called Boost. Boost allows the ultrasound signal to be increased by up to 20% to ensure the removal of stubborn residues.

Optional Accessories

Part Number	Description
100 555	Stainless steel basket for SW 90H ultrasonic cleaning bath, 550 mm x 465 mm x 190 mm, 30 Kg loading capacity
100 553	Stainless steel cover for SW 90H ultrasonic cleaning bath

Specifications

Tank dimensions (internal)	600 mm x 500 mm x 320 mm (W x D x H)
Tank dimensions (external)	700 mm x 625 mm x 467 mm (W x D x H)
Housing material	Stainless steel (AISI 304)
Tank material	Stainless steel (AISI 316)
Tank thickness (mm)	2
Maximum tank capacity	90 L
Temperature range	30oC - 80oC variable in 5oC steps
Ultrasonic frequency	37 KHz
Power consumption (total)	2800 W
Ultrasonic power (effective)	800 W
Ultrasonic peak (maximum)	3200 W
Voltage	220-240 VAC
Heating power	2000 W
Ultrasonic intensity (W/cm²)	2.6
Timer	1 min -30 min and continuous
No. of transducers	16
No of handles	4
Drain diameter	½ inch diameter
Weight	42 Kg
Warranty	2 years
