100 333 | Sonoswiss ultrasonic cleaning bath, stainless steel, 5.75 L maximum tank capacity, with heating and drain (SW 6H)








Description

The SW 6H ultrasonic cleaning bath from Sonoswiss is manufactured from the highest quality stainless steel and utilizes powerful piezo transducer systems and microprocessor-controlled generators to provide the ultimate in ultrasound cleaning capability.

Applications for the SW 6H include the cleaning of instruments in medical and dental offices, the cleaning of jewelry and watch parts and the removal of chemical residues, coking and soot from precision parts. The units are also ideal for the degassing of solutions prior to use in HPLC applications.

The units feature two novel functions that optimize the cleaning process. The first function is called Sweep. The Sweep function creates an even sound distribution to ensure that items are reliably cleaned no matter where they are placed in the bath. The second novel function is called Boost. Boost allows the ultrasound signal to be increased by up to 20% to ensure the removal of stubborn residues.

Optional Accessories

Part Number
Description
100 401
Stainless steel basket for SW 6H ultrasonic cleaning bath, 246 mm x 106 mm x 75 mm, 5 Kg loading capacity
100 003
Plastic cover for SW 6H ultrasonic cleaning bath*

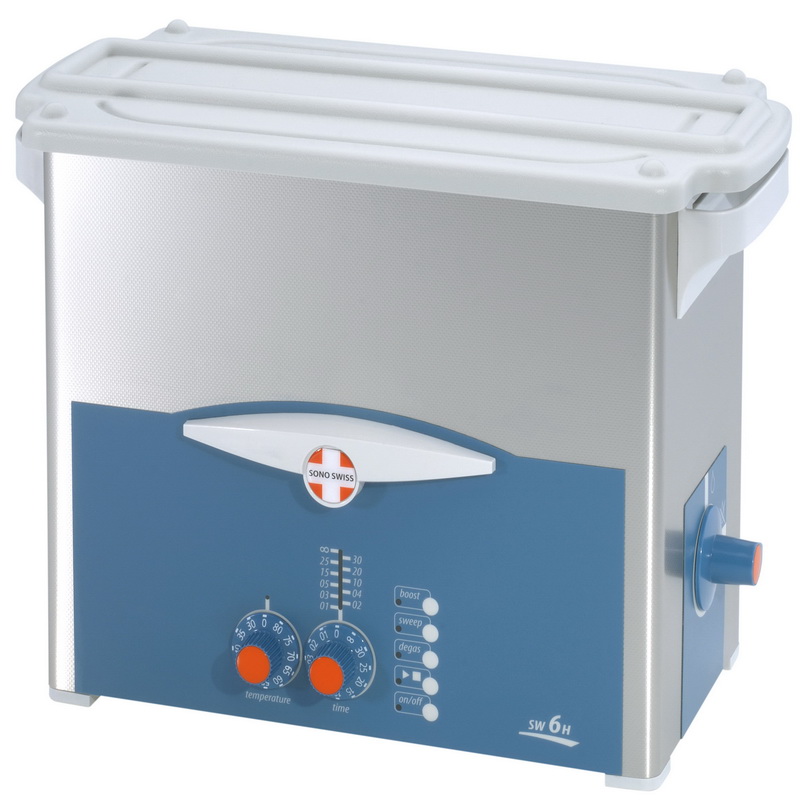

*The lid shown in the image above is sold separately.

Specifications

Tank dimensions (internal)
298 x 150 x 150 mm (W x D x H)
Tank dimensions (external)
380 x 184 x 265 mm (W x D x H)
Housing material
Stainless steel (AISI 304)
Tank material
Stainless steel (AISI 304)
Tank thickness (mm)
0.8
Maximum tank capacity
5.75 L
Temperature range
30oC - 80oC variable in 5oC steps
Ultrasonic frequency
37 kHz
Power consumption (total)
550 W
Ultrasonic Power (effective)
150 W
Ultrasonic Peak (maximum)
600 W
Voltage
220 - 240 VAC
Heating power
400 W
Ultrasonic intensity (W/cm²)
2.6
Timer
1 min - 30 min and continuous
No. of transducers
3
No of handles
2
Drain
3/8 inch diameter
Weight
5.1 Kg
Warranty
2 years
