100 372 | Ultrasonic cleaning bath, stainless steel, 28 L maximum tank capacity, with heating and drain

Description

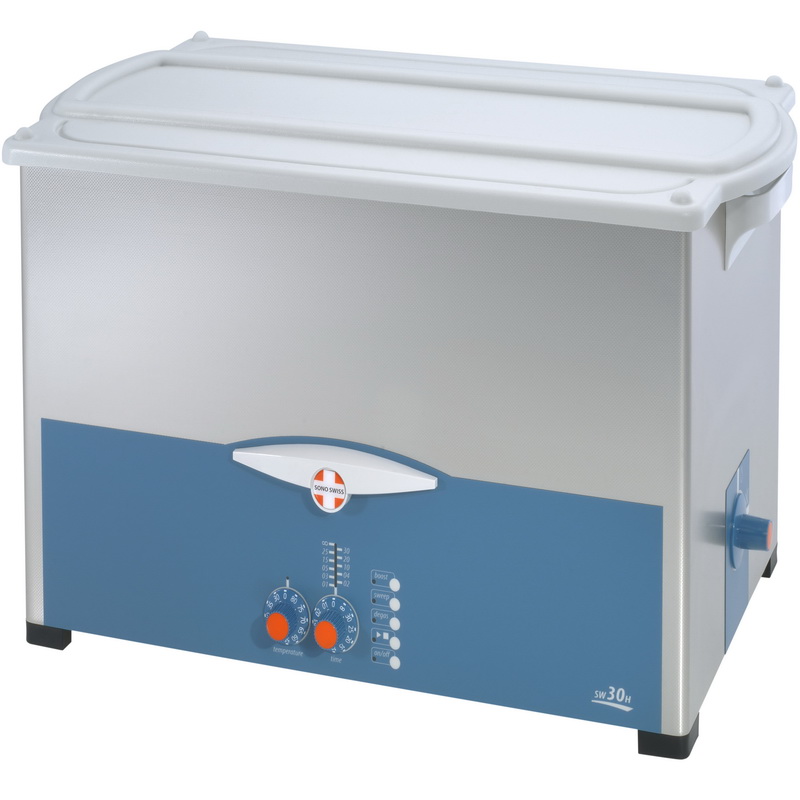

The SW 30H ultrasonic cleaning bath from Sonoswiss is made from the highest quality stainless steel and utilizes powerful piezo transducer systems and microprocessor-controlled generators to provide the ultimate in ultrasound cleaning capability.

Applications for the SW 30H include the cleaning of instruments and the removal of chemical residues, coking and soot from components and metal parts in industrial production processes.

The units feature two novel functions that optimize the cleaning process. The first function is called Sweep. The Sweep function creates an even sound distribution to ensure that items are reliably cleaned no matter where they are placed in the bath. The second novel function is called Boost. Boost allows the ultrasound signal to be increased by up to 20% to ensure the removal of stubborn residues.

Optional Accessories

Part Number	Description
100 403	Stainless steel basket for SW 30H ultrasonic cleaning bath, 443 mm x 238 mm x 120 mm, 10 Kg loading capacity
100 005	Plastic cover for SW 30H ultrasonic cleaning bath*

*The lid shown in the image above is sold separately.

Specifications

Tank dimensions (internal)	500 x 298 x 200 mm (W x D x H)
Tank dimensions (external)	570 x 330 x 320mm (W x D x H)
Housing material	Stainless steel (AISI) 304)
Tank material	Stainless steel (AISI 304)
Tank thickness (mm)	0.8
Maximum tank capacity	28 L
Temperature range	30oC - 80oC variable in 5oC steps
Ultrasonic frequency	37 KHz
Power consumption (total)	1500 W
Ultrasonic power (effective)	300 W
Ultrasonic peak (maximum)	1200 W
Ultrasonic intensity (W/cm²)	2.6
Voltage	220 - 240 VAC
Timer	1 min - 30 min and continuous
Heating	1200 W
No. of transducers	6
No of handles	2
Drain	3/8 inch diameter
Weight	11 Kg
Warranty	2 years
