100 307 | Ultrasonic cleaning bath, stainless steel, 800 mL maximum tank capacity, with heating

Description

The SW 1H ultrasonic cleaning bath from Sonoswiss is made of the highest quality stainless steel and utilizes powerful piezo transducer systems and microprocessor-controlled generators to provide the ultimate in ultrasound cleaning capability.

Applications for the SW 1H include the cleaning of instruments in medical, optical and dental offices, the cleaning of jewelry and watch parts and the removal of chemical residues, coking and soot from precision parts. The units are also ideal for the degassing of solutions prior to use in HPLC applications.

The SW 1H features two novel functions that optimize the cleaning process. The first function is called Sweep. The Sweep function creates an even sound distribution to ensure that items are reliably cleaned no matter where they are placed in the bath. The second novel function is called Boost. Boost allows the ultrasound signal to be increased by up to 20% to ensure the removal of stubborn residues.

Optional Accessories

Part Number	Description
100 399	Stainless steel basket for SW 1H ultrasonic cleaning bath, 172 mm x 66 mm x 30 mm, 1 Kg loading capacity
100 001	Plastic cover for SW 1H ultrasonic cleaning bath*

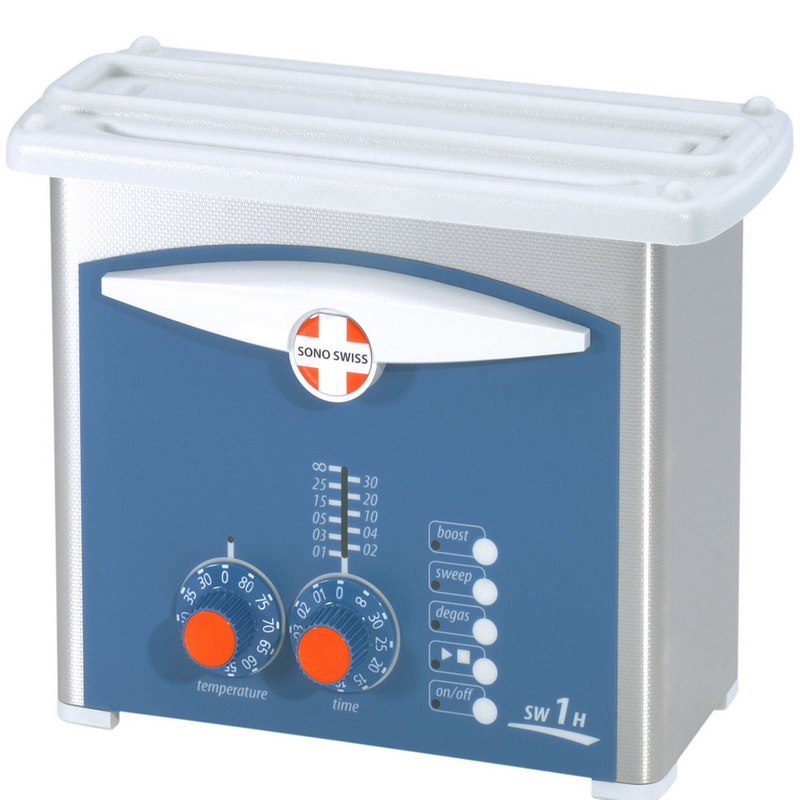

*The lid shown in the image above is sold separately.

Specifications

Tank dimensions (internal)	190 mm x 85 mm x 60 mm (W x D x H)
Tank dimensions (external)	206 mm x 118 mm x 178 mm (W x D x H)
Maximum tank capacity	800 mL
Housing material	Stainless steel (AISI 304)
Tank material	Stainless steel (AISI 304)
Tank thickness (mm)	0.6
Ultrasonic frequency	37 kHz
No. of transducers	1
Timer	1 min - 30 min and continuous
Power consumption (total)	30 W
Ultrasonic power (effective)	30 W
Ultrasonic peak (max)	240 W
Voltage	220 - 240 V
Heating	Yes
Drain	No
Handles	No
Weight	2 Kg
Warranty	2 years
