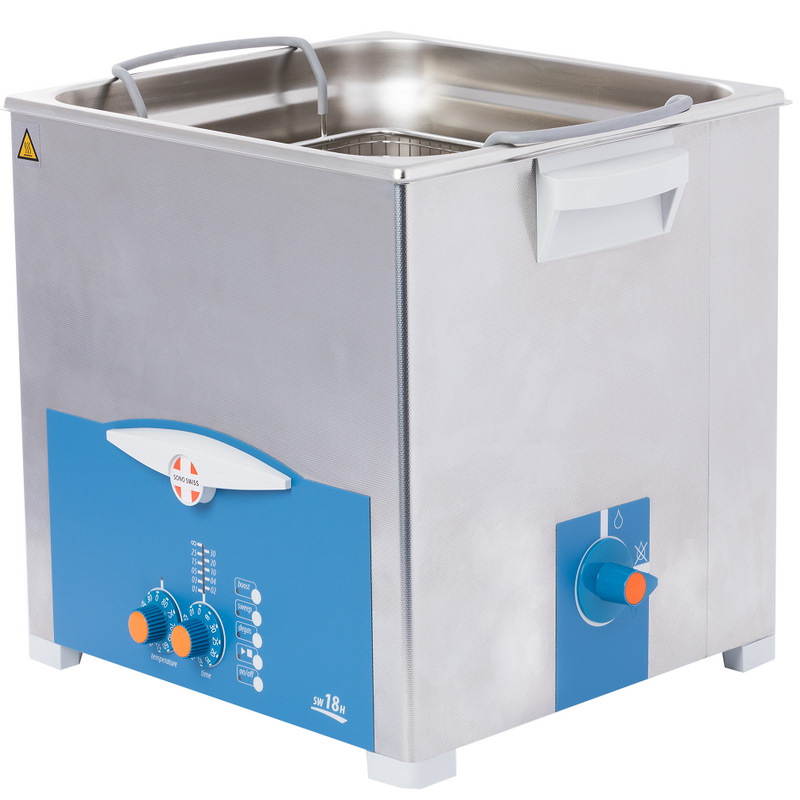

101 619 | Sonoswiss ultrasonic cleaning bath, stainless steel, 18 L maximum tank capacity, with heating and drain (SW 18H)








Description

This SW 18H ultrasonic cleaning bath from Sonoswiss is made of the highest quality stainless steel and utilizes powerful piezo transducer systems and microprocessor-controlled generators to provide the ultimate in ultrasound cleaning capability.

Applications for these cleaning baths include the cleaning of instruments in medical and dental offices and the removal of chemical residues, coking and soot from precision parts. The units are also ideal for the degassing of solutions prior to use in HPLC applications.

The SW 18H features two novel functions that optimize the cleaning process. The first function is called Sweep. The Sweep function creates an even ultrasound distribution to ensure that items are reliably cleaned no matter where they are placed in the bath. The second novel function is called Boost. Boost allows the ultrasound signal to be increased by up to 20% to ensure the removal of stubborn residues.

Optional Accessories

Part Number            Description
101 621            Stainless steel basket for SW 18H ultrasonic cleaning bath, 267 mm x 241 mm x 120 mm, 8 Kg loading capacity
101 620Plastic cover for SW 18H ultrasonic cleaning bath*


*The lid shown in the image above is sold separately.

Specifications

Tank material
Stainless steel (0.8 mm)
Housing material
Stainless steel
Tank dimensions (internal)
330 x 300 x 200 mm (W x D x H)
Tank dimensions (external)
390 x 340 x 321 mm (W x D x H)
Maximum tank capacity
18 L
Ultrasonic frequency
38 kHz
Power consumption (total)
1000 W
Ultrasonic power (effective)
200 W
Ultrasonic peak (maximum)
800 W
Voltage
230 V
Heating power
800 W
Timer
1 min - 30 min or continuous
Temperature range
30ºC - 80ºC variable in 5ºC steps
Drain
Yes
Weight
8.5 Kg
Warranty
2 years
