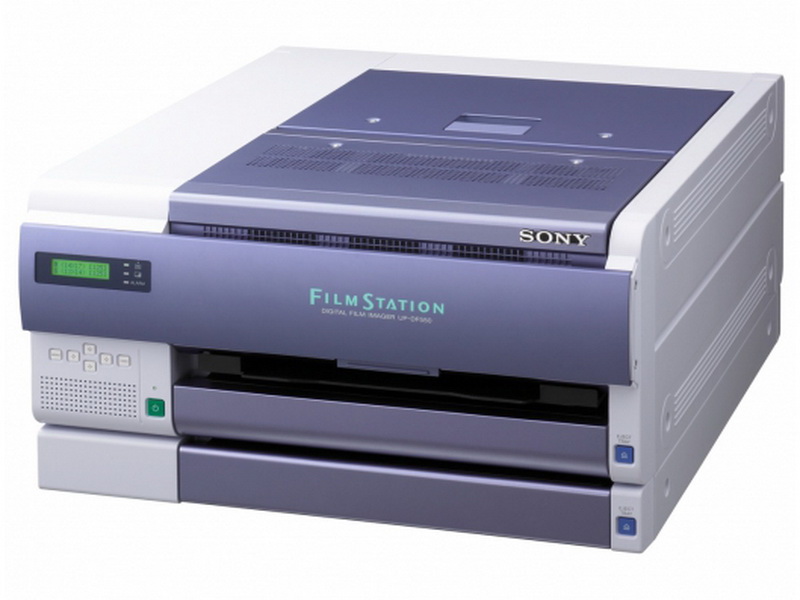

UP-DF550 | SONY UP-DF550 multi-format diagnostic DICOM film imager for CT, MRI and X-ray








Key Features

  • Ideal for various radiology modalities such as CT, MRI, digital radiography, computed radiography and X-Ray
  • Compact design with vertical installation option for easy integration where space is limited
  • Compatible with a range of  high quality diagnostic blue thermal film sizes (please click here for details). Two trays accommodate multiple film sizes: 8" x 10", 10" x 12", 11" x 14" and 14" x 17"
  • High speed throughput of up to 70 films per hour
  • Automatic film calibration delivers consistent image quality
  • Built-in DICOM 3.0 Interface enables the printer to be connected to a hospital or other imaging network
  • Intelligent memory capability: printer settings including IP address can be saved on a removable media
  • Second output tray

Description

The UP-DF550 dual tray Film Imager is an ideal choice for many modalities such as CT, MRI, Digital Radiography, Computed Radiography and X-Ray. The UP-DF550 can be mounted horizontally or vertically which is a major advantage over other large centralized film imagers.

The SONY UP-DF550 is compatible with a range of high quality diagnostic blue thermal film sizes (please click here for details) and has two trays to accommodate multiple film sizes. The second output tray accommodates 8" x 10", 10" x 12" and 11" x 14" film sizes for a variety of modalities as well as low-cost copies that are ideal for patient referrals.

Specifications

Printing system
Thermal printing
Digital Interface
Network port x 1 (RJ-45 modular jack) conforming to 100 BASE-TX standard
Resolution
320 dots per inch
Effective Pixels
4360 x 5232
Gradation
4096 pixels
Print Size
401.8 x 335.4 mm (when using UP-T517BL)
Print Speed
UP-T517BL: 70 films per hour
UP-T514BL: 75 films per hour
UP-T512BL: 80 films per hour
UP-T510BL: 86 films per hour
Power Requirements
240 VAC:50 Hz
Dimensions (W x H x D)
600 mm x 316 mm x 686 mm
Weight
63 Kg
