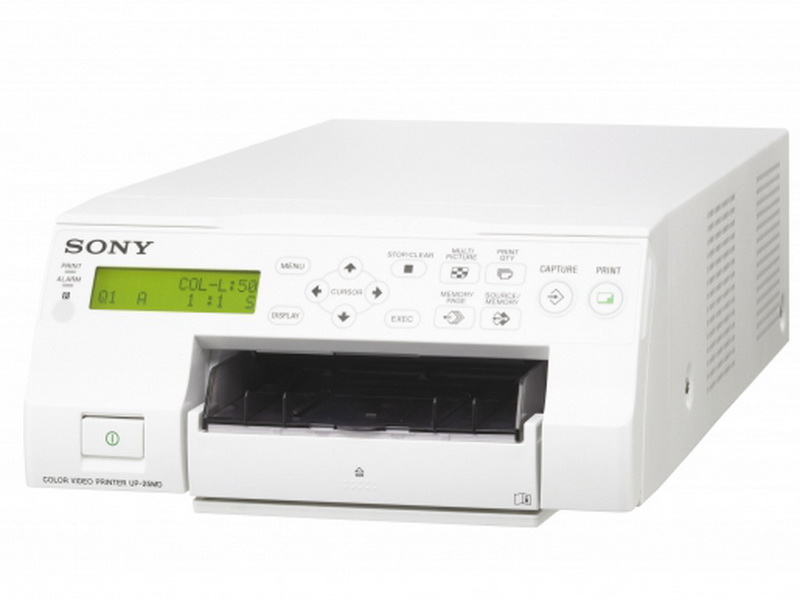

UP-25MD | SONY UP-25MD A6 analogue colour printer for endoscopy and other medical applications

Features

• Dye sublimation printing process generates durable and long-lasting images
• Analogue inputs for standard and high definition signal acquisition
• Choice of self-laminating and standard media
• Colour adjustment capability
• User friendly controls and front loading paper tray
• Designed to fit on endoscopic trolleys
• Predictable print costs using readily available print media (please click here for details)

Description

The SONY UP-25MD is a high quality printer designed for medical applications. It features a variety of analogue video inputs for standard definition as well as high definition signals and is compatible with a wide range of medical imaging devices.

The printer’s photo-quality dye sublimation technology ensures that prints are durable and long-lasting. It is compatible with both traditional and self-laminating media. The self-laminating media seals and protects printed images against environmental hazards. Colours can be adjusted using RGB or HSV colour spaces to match monitor output and to optimise colour reproduction accuracy. This printer uses a range of readily available print media (please click here for details).

Specifications

Printing method	Dye sublimation thermal printing
Compatible A6 film	UPC-21L: UPC-21S
Resolution	423 dpi
Gradations	8 bits (256 levels) processing each for yellow, magenta and cyan
Effective print pixels	21L: 2100 x 1600 dots: 21S : 1600 x 1200 dots
Print size	21L: 126 mm x 96 mm | 21S : 96 mm x 72 mm
Printing time	21L: ~29 sec | 21S: ~19 sec
Interface	USB
Paper tray capacity	L size: max. 50 sheets | S size: max. 80 sheets
Power requirements	240 VAC: 50 Hz
Dimensions (W x D x H)	212 mm x 98 mm x 398 mm
Weight	5.5 Kg
