W3080122 | Shaking ultrasonic cleaning bath with 20 L capacity (WUS22) | with heating and drain

Key Features

• Combines the functions of an ultrasonic cleaner and a shaking water bath
• 20 L capacity
• Temperature range from 20°C to 80°C
• Timing range of 1 min to 199 min
• Standard shaking stroke of 20 mm with 30 mm and 40 mm options also available.

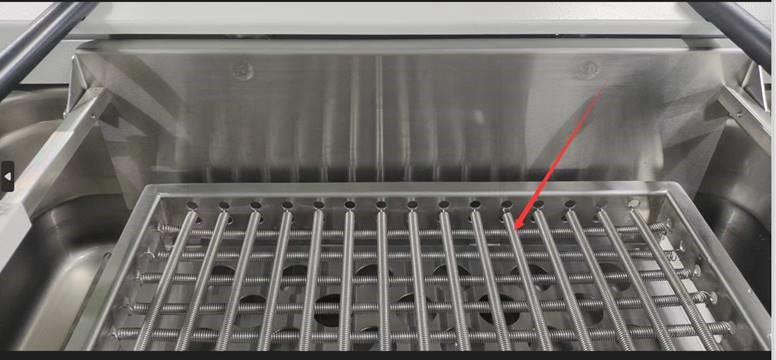

• Easy to remove rack
• Drainage outlet
• With lid to reduce evaporation

Product Description

The WUS22 ultrasonic shaker combines the functions of an ultrasonic cleaner and a shaking water bath. Both procedures can be carried out simultaneously or separately. This allows a sample to be pre-homogenised at a specified shaking frequency and the final homogenisation to be carried out by ultrasound.

The WUS22 has a 20 L capacity, a drainage outlet, an easy to remove rack for holding glassware, and a lid to reduce evaporation. The unit has a temperature range from 20°C to 80°C, a timing range from 1 min to 199 min, and a standard shaking stroke of 20 mm. Options of 30 mm and 40 mm shaking strokes are also available.

Maximum Flask Load

• 6 x 250 mL
• 6 x 300 mL
• 2 x 500 mL
• 2 x 1 L
• 1 x 2 L

Optional Accessories

The accessories listed below are suitable for use with the WUS22. Please contact Advance Scientific for pricing.

Part No.	Description
U10003	Stainless steel lid
U10203	Stainless steel trays
U10103	Stainless steel basket
U10403	Positioning lids
5660	Stabilising ring for Erlenmeyer flasks (Type S: Red) | PVC-covered steel | External diameter: 70 mm : Internal diameter: 27 mm | Weight: 0.3 Kg

Specifications

Model number	WUS22
Temperature range	20°C to 80°C
Frequency	37 Khz
Working power (maximum)	400 W | 40% - 100% adjustable
Heater power	550 W
Timer	1 min to 199 min
Drainage outlet	Yes
Capacity	20 L
Shaking stroke (mm)	20 mm
