70119005 | Hain Lifescience Q-Sat 96 thermal cycler for computer-controlled or integrated multi-unit operation

Key Features

• High performance thermal cycler with a choice of 96- or 384-well user-interchangeable blocks. Blocks are sold separately from the thermal cycler.
• Controlled from an external PC running Hain thermal cycler software (software included with thermal cycler) or integrated into a network of up to three satellite thermal cyclers and controlled through the Q-Cycler 96 thermal cycler (please see below).
• Internal auto validation prior to each program start and thermal engine validation function
• User file protection for programs and reports
• File organization using Windows Explorer format
• Intuitive user interface for rapid programming and runs
• Intelligent wizard protocol generation software
• Automatic heated lid
• Barcode documentation via handheld bar code scanner option

Description

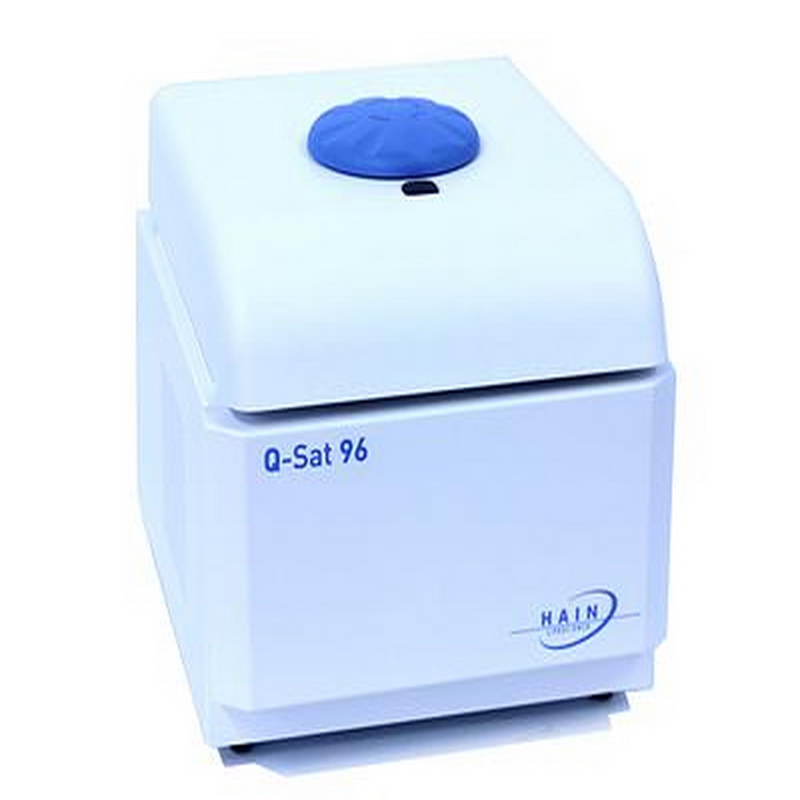

The Q-Sat 96 is a high performance, modular thermal cycler. The unit is driven by the latest Peltier-based thermal engine and can be controlled by a PC (control software supplied with the instrument) or as part of a simple USB plug and play network of up to three satellite thermal cyclers, in any combination of 24, 48 or 96 well blocks, controlled by the Q-Cycler 96 thermal cycler (please see below). Blocks for the Q-Sat 96 are manufactured from anodized aluminium or gold-coated silver and include four sensors.

The Q-Sat 96 is fully compatible with a range of high performance user-interchangeable blocks that can be interchanged in seconds without tools. Lid pressure can be adjusted to give high or low pressure depending upon whether microplates or tubes are being used.

Specifications

Manufacturer	Hain Lifescience
Temperature range of block	4°C to 99°C with simulated volume-dependent control algorithm
Sample volume range	5 uL - 100 uL
Sample homogeneity	±0.4°C
Sample accuracy	±0.4°C (20 - 99°C) and ±1°C (4 - 20°C)
Operating temp. range	10°C - 30°C
Relative humidity	0% to 95%
Max. heating rate	Up to 2.5°C/sec
Max. cooling rate	Up to 2°C/sec
Sample overshoot	<1°C
Block traceability	Calibration using UKAS traceable standards
Communication interfaces	1 USB
Lid temperature	112°C
Lid pressure	Manually adjustable for tubes and microplates
Program storage	99 with internal memory. No limit with PC.
Power supply	85-275 VAC/ 48-62 Hz
Dimensions (W x D x H)	40 cm x 40 cm x 25 cm
Weight	~12 Kg
Warranty	2 years
