101644 | Ultrasonic cleaning bath with protocol recall, stainless steel, 28 L maximum tank capacity, with heating and drain

Key Features

• Constructed of high quality textured stainless steel that is easy to clean and chemically-resistant
• Newly-developed ultrasonic generators
• LED display shows both actual and target for ultrasonic duration and temperature
• "PreSet" function allows recall of a frequently used cleaning protocol. Stores time, temperature and ultrasound mode parameters.
• Novel ultrasonic mode for degassing liquids prior to use in HPLC
• Boost mode to increase the ultrasonic signal strength to remove stubborn residues
• Sweep mode to ensure proper cleaning regardless of item position in bath
• Safety shutdown feature after eight hours if no operator intervention
• Over temperature shutdown feature

Description

The SW 30HP ultrasonic cleaning bath from Sonoswiss is made from the highest quality stainless steel and utilizes powerful piezo transducer systems and microprocessor-controlled generators to provide the ultimate in ultrasound cleaning capability.

Applications for the SW 30HP include the cleaning of instruments and the removal of chemical residues, coking and soot from components and metal parts in industrial production processes.

The SW 30HP features two novel functions that optimize the cleaning process. The first function is called Sweep. The Sweep function creates an even sound distribution to ensure that items are reliably cleaned no matter where they are placed in the bath. The second novel function is called Boost. Boost allows the ultrasound signal to be increased by up to 20% to ensure the removal of stubborn residues.

The SW 30HP also features a "PreSet" function that allows the recall of a frequently used cleaning protocol. Time, temperature and ultrasound mode parameters are stored under this function.

Optional Accessories

Part Number	Description
100 403	Stainless steel basket for SW 30HP ultrasonic cleaning bath, 443 mm x 238 mm x 120 mm, 10 Kg loading capacity
100 005	Plastic cover for SW 30HP ultrasonic cleaning bath*

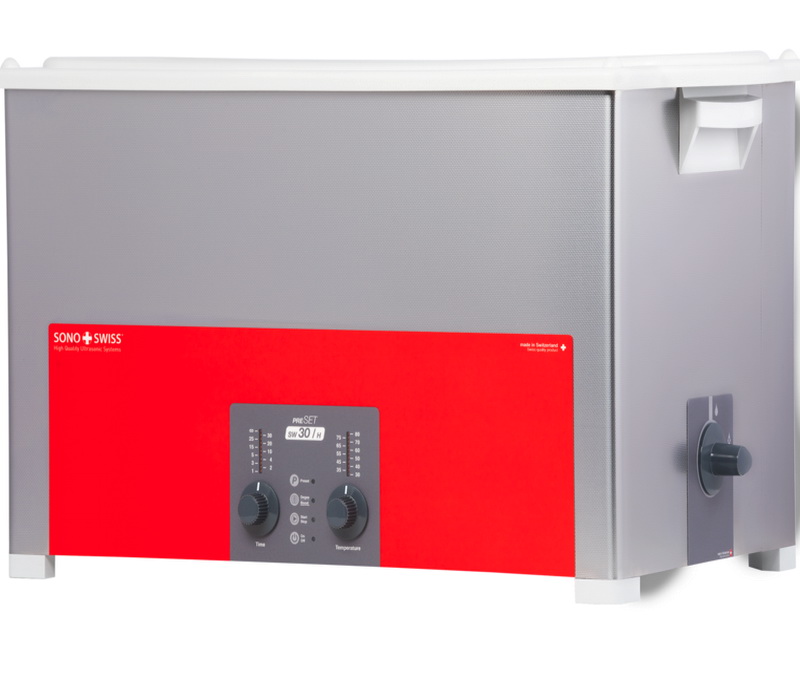

*The lid shown in the image above is sold separately.

Specifications

Manufacturer	Sonoswiss
Model number	SW 30HP
Tank dimensions (internal)	500 mm x 298 mm x 200 mm (W x D x H)
Tank dimensions (external)	570 mm x 330 mm x 320 mm (W x D x H)
Housing material	Stainless steel (AISI 304)
Tank material	Stainless steel (AISI 304)
Tank thickness (mm)	0.8
Maximum tank capacity	28 L
Temperature range/increments	30oC - 80oC/  5oC steps
Ultrasonic frequency	37 KHz
Power consumption (total)	1500 W
Ultrasonic power (effective)	300 W
Ultrasonic peak (maximum)	1200 W
Heating power	1200 W
Ultrasonic intensity (W/cm²)	2.6
Voltage	220 - 240 VAC
Timer	1 minute - 30 minutes and continuous
No. of transducers	6
No of handles	2
Drain	3/8 inch diameter
Weight	11 Kg
Warranty	2 years
