Preset SW 12H | Ultrasonic cleaning bath with protocol recall | stainless steel | 12.75 L maximum tank capacity | with heating and drain
- Constructed of high quality textured stainless steel that is easy to clean and chemically-resistant
- Newly-developed ultrasonic generators
- LED display shows both actual and target for ultrasonic duration and temperature
- PreSet function allows recall of a frequently used cleaning protocol that stores time, temperature and ultrasound mode parameters
- Novel ultrasonic mode for degassing liquids prior to use in HPLC
- Boost mode to increase the ultrasonic signal strength to remove stubborn residues
- Sweep mode to ensure proper cleaning regardless of item position in bath
- Safety shutdown feature after eight hours if no operator intervention
- Over temperature shutdown feature
- Fan shutdown delay
The SW 12H ultrasonic cleaning bath from SonoSwiss is made from the highest quality stainless steel and utilizes powerful piezo transducer systems and microprocessor-controlled generators to provide the ultimate in ultrasound cleaning capability.
Applications for the SW 12H include the cleaning of instruments in medical and dental offices, the cleaning of jewellery and watch parts and the removal of chemical residues, coking and soot from precision parts. This bath is also ideal for the degassing of solutions prior to use in HPLC applications.
The SW 12H features two novel functions that optimize the cleaning process. The first function is called Sweep. The Sweep function creates an even sound distribution to ensure that items are reliably cleaned no matter where they are placed in the bath. The second novel function is called Boost. Boost allows the ultrasound signal to be increased by up to 20% to ensure the removal of stubborn residues.
The SW 12H also features a PreSet function that allows the recall of a frequently used cleaning protocol. Time, temperature and ultrasound mode parameters are stored under this function.
The SW 12H has a number of safety features incorporated into the unit. These include an over-temperature shutdown feature and a fan shutdown delay. The shutdown delay keeps the instrument's fan running when the bath is switched off until the bath temperature reaches 45°C.
|101640||Ultrasonic cleaning bath with protocol recall, stainless steel, 12.75 L maximum tank capacity, with heating and drain|
|102109||Ultrasonic cleaning bath with protocol recall, stainless steel, 12.75 L maximum tank capacity, with heating and stainless steel drain|
|100 402||Stainless steel basket for SW 12H ultrasonic cleaning bath, 240 mm x 181 mm x 120 mm, 7 Kg loading capacity|
|100 004||Plastic cover for SW 12H ultrasonic cleaning bath*|

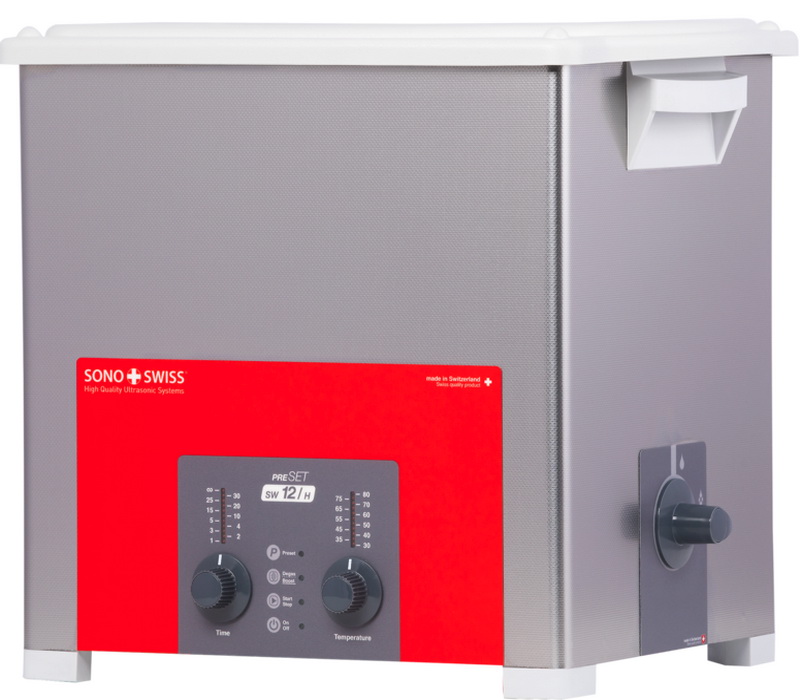

*The lid shown in the image above is sold separately.
|Model number||SW 12H|
|Tank dimensions (internal) ||297 mm x 238 mm x 200 mm (W x D x H) |
|Tank dimensions (external) ||355 mm x 290 mm x 320 mm (W x D x H) |
|Maximum tank volume||12.75 L |
|Housing material ||Stainless steel (AISI 304)|
|Tank material ||Stainless steel (AISI 304)|
|Tank thickness ||0.8 mm|
|Ultrasonic frequency||37 KHz|
|No. of transducers ||4 |
|Timer ||1 minute - 30 minutes and continuous|
|Power consumption (total)||1000 W|
|Ultrasonic power (effective)||200 W|
|Ultrasonic peak (max) ||800 W |
|Heating power||800 W|
|Voltage ||220 - 240 VAC |
|Temperature range/ increments||30ºC - 80ºC/ 5ºC steps |
|Ultrasonic intensity (W/cm²) ||2.6 |
|Weight ||7.3 Kg |
|Handles ||2 |
|Warranty ||2 years|
