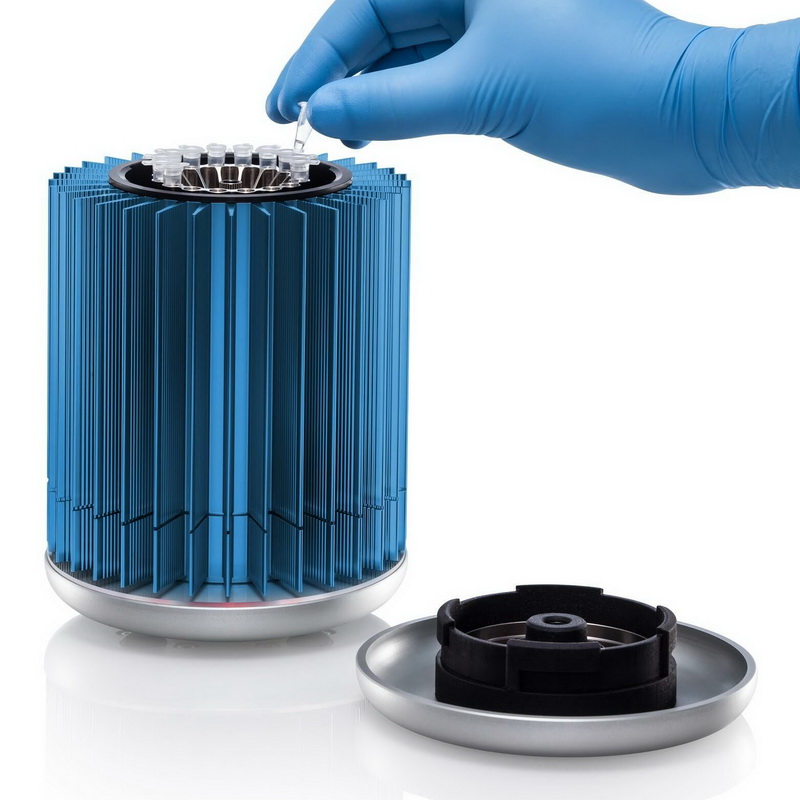

R16-Z-MYGO MINI S (BLUE) | MyGo Mini S real-time qPCR system, blue, 16 reaction wells

Key Features

• Solid state system with no moving parts
• Reduced hold times enable run times of <30 minutes
• 16 reaction wells
• Superior intra-run and inter-run analytical precision in DNA quantification and melting point analysis
• Silent operation
• Portable power supply for remote operation (input voltage: 11 VDC to 16 VDC | input power: 100 W)
• Easy to use software and high performance algorithms to provide accurate results from complex data
• Software can be installed on computers running Mac OS X, Windows and Linux operating systems
• Uses standard 0.1 mL low profile tubes
• Also available in red, green, pink and gold/orange

Description

The MyGo Mini S from IT-IS Life Science is the world’s first completely solid-state real-time qPCR machine with no moving parts. The result is a silent, compact and highly reliable instrument with the option of a 5 year extended warranty.

The MyGo Mini S demonstrates superior intra-run and inter-run analytical precision in DNA quantification and melting point analysis. Users can now address biological phenomena with subtle effects on gene expression or pathogen levels since the MyGo Mini S can discriminate down to a 10% difference in transcript concentration. For users performing HRM-based analysis of genetic variants the combination of thermal control, optical data quality and HRM data analysis of the MyGo Mini S system provide compelling functionality. The system can discriminate all classes of SNP including Class 4 SNPs via HRM.

The MyGo Mini S system comes with easy-to-use software and robust high performance algorithms which can provide accurate results from complex data. Automated analysis of complex HRM data makes this powerful technique more accessible to non-experts and minimises operator-dependent variability in data analysis. Automated report generation makes life easier for service providers and users operating within GLP quality systems.

The MyGo Mini S software can be installed on computers running Mac OS X, Windows and Linux operating systems. The MyGo Mini S is compatible with standard 0.1 mL low-profile tubes which are convenient and cost-effective.

Unlike some competitive instruments the MyGo Mini S software does not require a dedicated computer so users do not need to find the space or money for an additional computer to run the system. In addition the MyGo Mini S software enables the user to control up to 400 MyGo Mini S instruments whilst simultaneously analysing run data on one computer.

Optional Accessories

Part Number	Product Description
8265	Remote power supply system for MyGo Mini

Specifications

Manufacturer	IT-IS Life Science
Model number	MyGo Mini S
Dimensions (W x D x H)	120 mm x 120 mm  x 160 mm
Weight	2.5 Kg
Operating noise	Silent
Voltage	100 - 240V AC ±10%
Frequency	47 - 63 Hz
Power	90 W
Block capacity	16 microtubes
Format	0.1 mL microtubes
Reaction volume	10 - 100 µL
Temperature control method	Peltier
Temperature range	37oC - 99oC
Speed	3oC/s heating: 1.5oC/s cooling
Run time	<60 minutes
Temperature resolution	0.01oC
Temperature uniformity	0.05oC (SD)
Temperature accuracy	±0.25oC
Fluorescence excitation	500 nm (blue LED)
Fluorescence detection	500 nm - 650 nm (CMOS array)
Multiplex level	Duplex
Sensitivity	Single copy detection
Dynamic range	9-log
Precision	1.1 fold discrimination
Factory calibrated dyes	SYBR Green 1, Resolight, FAM, VIC, HEX, CAL540, CAL560, LC Green, ROX, SYTO9 and ATTO 490LS
User-selected custom dyes	Yes
Supported assay formats	TaqMan, intercalators and HRM
Connection options	LAN (up to 400 instruments, direct communication to computer (RJ45) or stand-alone  (USB stick)
