3A226C | Multi-function shaker for flasks and culture bottles (WS-50DR)

Key Features

• Reciprocal shaking function
• Adjustable shaking speed and range
• Timer function for maximum flexibility
• Corrosion-resistant stainless steel housing
• Easy to clean and maintain
• Large mounting surface
• Ideal for vessels with more than 250 ml capacity such as round flasks, Erlenmeyer flasks, culture flasks or culture bottles (up to 20 Kg)
• Suitable for multiple applications including bacterial culture, fermentation, hybridisation, biochemical and enzyme reactions, and tissue research
• Wide range of labware platforms available (platform and flask clamps shown in image not included with the purchase of the platform shaker)

Description

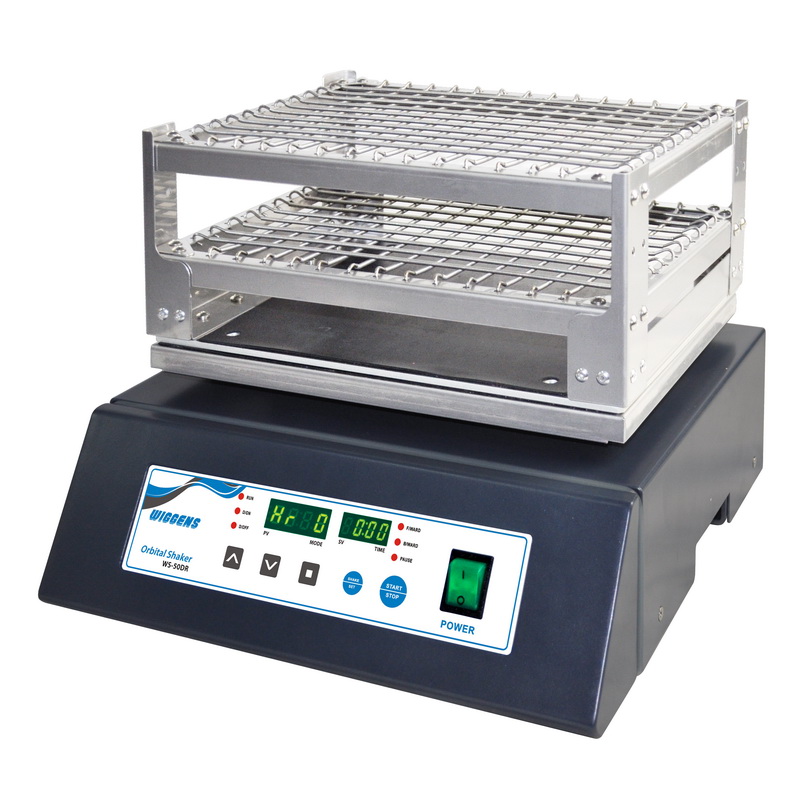

The WS-50DR multi-function shaker utilises a reciprocal shaking action to provide shaking capability for a wide range of culture flasks and other vessels at weights up to 20 Kg. The shaker features a large surface for mounting a wide range of plates, trays and baskets.

The WS-50DR is incorporated into a corrosion-resistant stainless steel housing that is easy to clean and maintain.

A number of platforms, plates, trays and other accessories are available so that the WS-50DR can be used to shake an extensive range of labware.

Platforms, Plates, Trays and Other Accessories

The following accessories are available for the WS-50DR:

Part Number	Description
3A901	Sticky plate for any labware with a smooth base or for microtitre plates | Dimensions: 320 mm x 260 mm

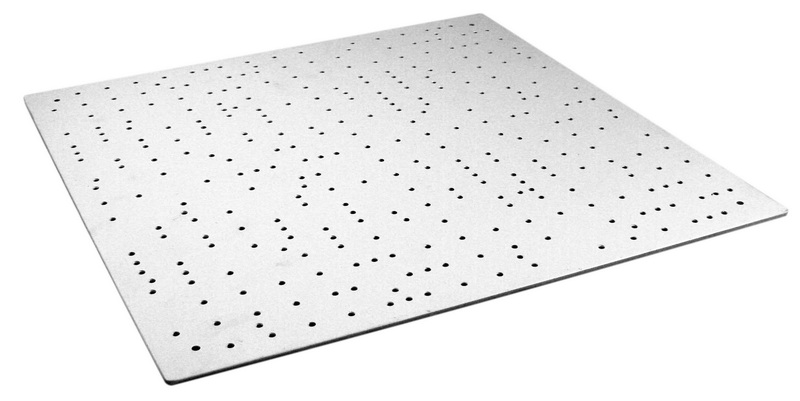

3A501	Universal tray with a drilled grid for mounting Erlenmeyer flask holders. Please see below the ordering information for the different sizes of flask holders | Dimensions: 320 mm x 260 mm   Flask Size Maximum No. of Flask Holders 50 mL 20 100 mL 9 250 mL 9 300 mL 6 500 mL 4 1 L 2 2 L 1

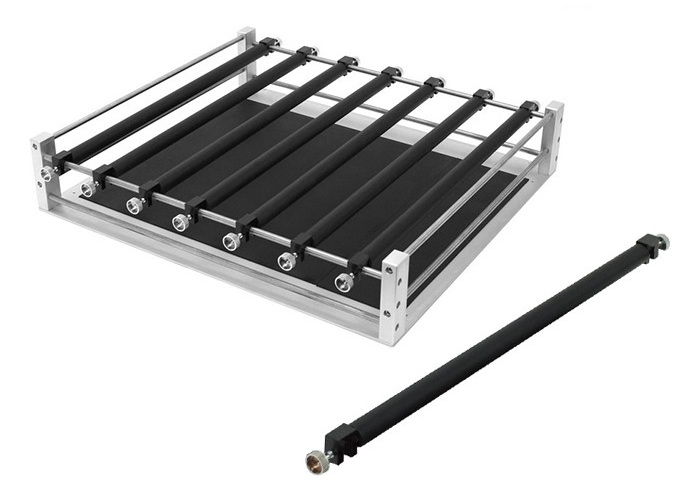

3A511	Adjustable bar tray. Adjustable bars sold separately (Part Number 3A511-05) | Dimensions: 320 mm x 260 mm x 97 mm

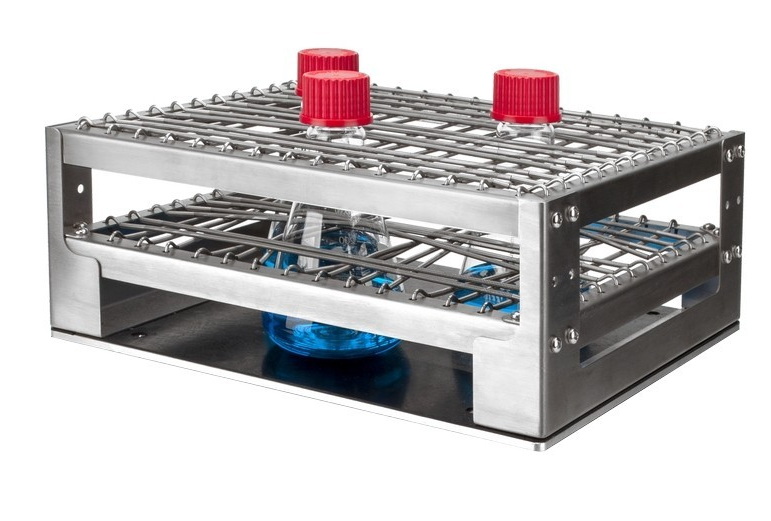

3A521	Multi-purpose spring tray | Dimensions: 320 mm x 260 mm x 120 mm
3A531	Rubber mats allow quick addition or removal of flasks, plates or tubes | Dimensions: 350 mm x 290 mm x 23 mm

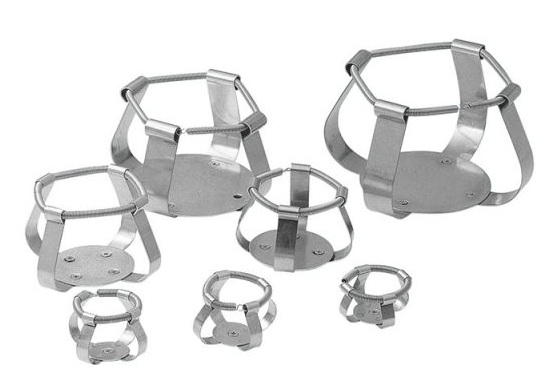

	Erlenmeyer flask holders Flask Size Part Number 50 mL 23550 100 mL 23551 250 mL 23552 300 mL 23556 500 mL 23553 1000 mL 23554 2000 mL 23555

Specifications

Manufacturer	Wiggens
Model Number	WS-50DR
Display and control	LED and digital
Vibration style	Reciprocating
Vibration frequency (rpm)	10 - 250
Vibration amplitude (mm)	20
Speed adjustment steps (rpm)	±2
Timer range	0 - 999 hours and 59 minutes
Maximum load (including clamps)	15 Kg
Weight	20 Kg
Platform dimensions (W x D)	320 mm x 260 mm
Instrument dimensions (W x D x H)	355 mm x 375 mm x 140 mm
