LB-17 | UltraBright LED transilluminator, triple wavelength, 470 nm (blue), 530 nm (green) and 630 nm (red), 200 mm x 160 mm viewing area

Key Features

  • Intense triple LED transillumination at 470 nm (blue), 530 nm (green) and 630 nm (red) in the same unit
  • Suitable replacement for UV
  • Ideal as an excitation source for multi-plexed gels
  • Delta matrix LED arrangement
  • High light uniformity across viewing area
  • Compatible with a wide range of commercially available gel imaging systems

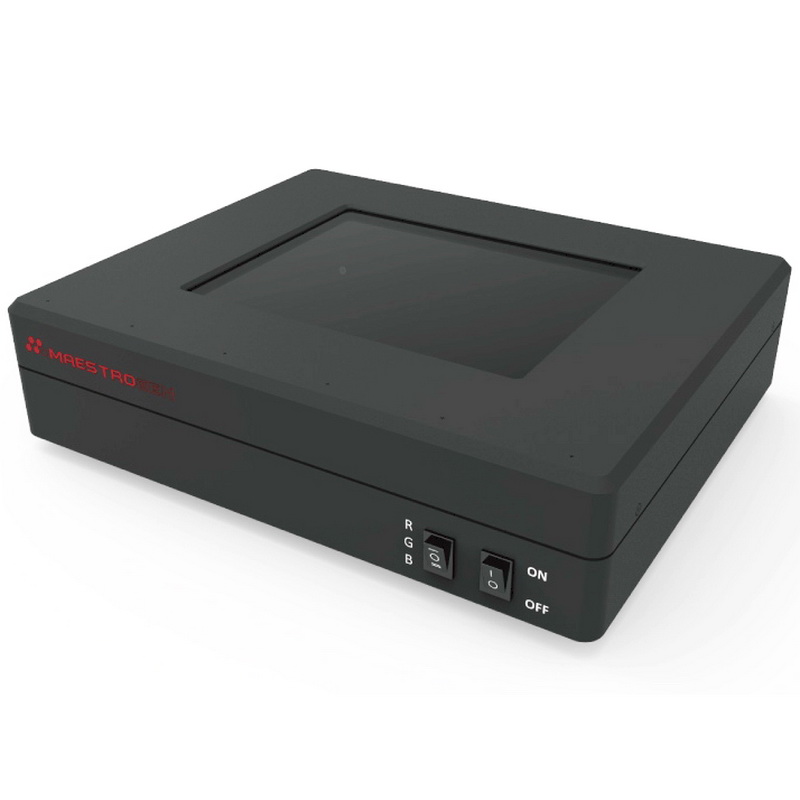

This triple wavelength UltraBright LED transilluminator from Maestrogen has three excitation sources at 470 nm (blue), 530 nm (green) and 630 nm (red). This makes it an excellent excitation source for multiplexed blots and gels and provides an ideal replacement for UV excitation. The unit emits highly uniform excitation signals across the entire 200 mm x 160 mm viewing area.


Model number
Viewing surface200 mm x 160 mm
LED wavelengths470 nm (blue), 530 nm (green) and 630 nm (red)
LED lifetime~50,000 hours
Dimensions (W x D x H)
340 mm x 280 mm x 80 mm
Power24 VDC, 1.25 A power adapter
Weight3.6 Kg
