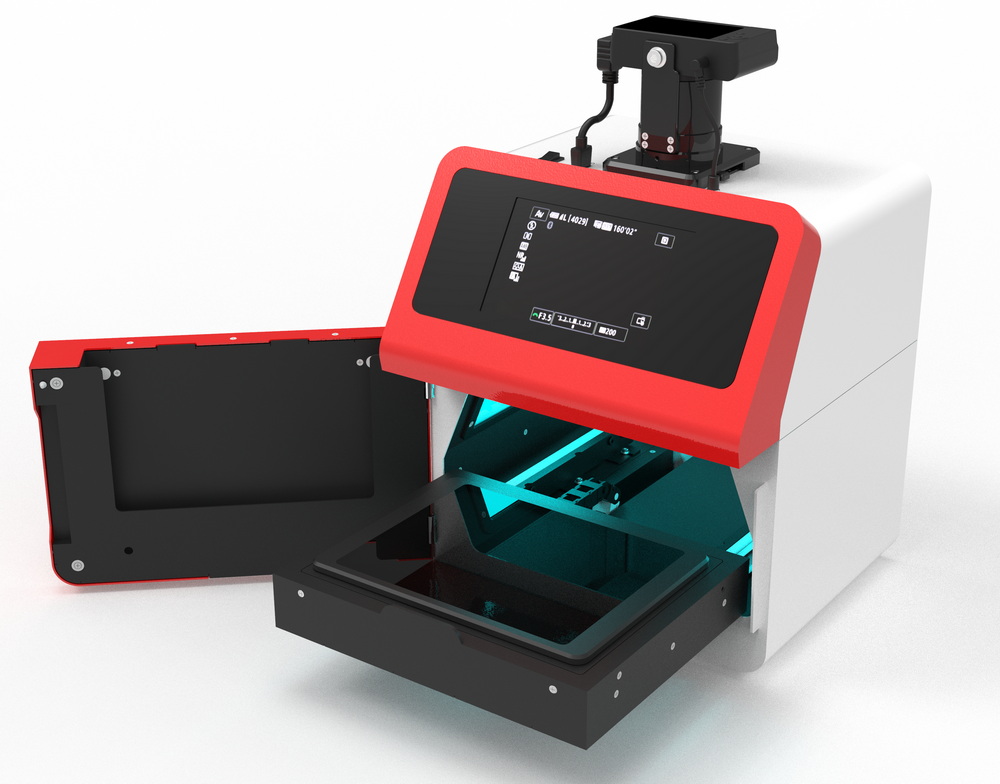

MI-02 | Gel imaging system with 24.7 megapixel digital camera and 505 nm LED blue/green light and white light sources

Key Features

• 24.7 megapixel Canon M-series digital camera
• Embedded LED blue/green light (505 nm) and white light sources
• Switchable amber filter and transparent filter
• 178 mm TFT colour LCD
• Wi-Fi and USB (2.0) interface for data transfer as well as SD/SDHC memory card
• JPEG image format
• Camera control software (included with the imager)

Description

The MI-02 gel imaging system from Maestrogen features an embedded light source that emits blue/green light at 505 nm to generate a stronger signal from SYBR dyes and other dyes that are excited at this wavelength. The MI-02 also includes a built-in white light panel for imaging protein gels.

The imaging system incorporates a 24.7 megapixel Canon M-series digital camera for superb quality images. It also includes a switchable filter that holds an amber filter for use with blue/green LED light and a transparent filter for use with white light.

Captured images can be stored on the camera's SD/SDHC memory card in JPEG or RAW format or sent by USB (2.0) or Wi-Fi to a suitable device.

Specifications

Manufacturer	Maestrogen
Model number	MI-02
Light sources	LED blue/green light (505 nm) and white light
Filters	Amber filter and transparent filter (used with white light source)
Viewing area (W x D)	200 mm x 160 mm
Display	178 mm TFT colour LCD
Dimensions (W x D x H)	310 mm x 300 mm x 450 mm
Weight (darkroom & camera)	14.2 Kg
Power	100 VAC - 240 VAC | 50/60 Hz
Camera
Camera make	Canon EOS M-series
Resolution	24.2 effective megapixels
Lens	15 ~ 45 mm | F1.8 (wide): F11.0 (telephoto)
Camera modes	Manual, program, aperture priority and shutter priority
ISO	Auto : 100: 200 ~ 51200 (ISO 800 recommended for operation)
Shutter speed (s)	1/4000~30 seconds
Interface	Wi-Fi transfer or USB (2.0)
Storage media	SD/SDHC memory card
Storage format	JPEG (Exif version 2.3) | Raw Image Format
Video output	NTSC / PAL selectable (HDMI)
