088.M1501.00C | Maelstrom 4810 automated nucleic acid extraction system with 48 sample capacity








Key Features

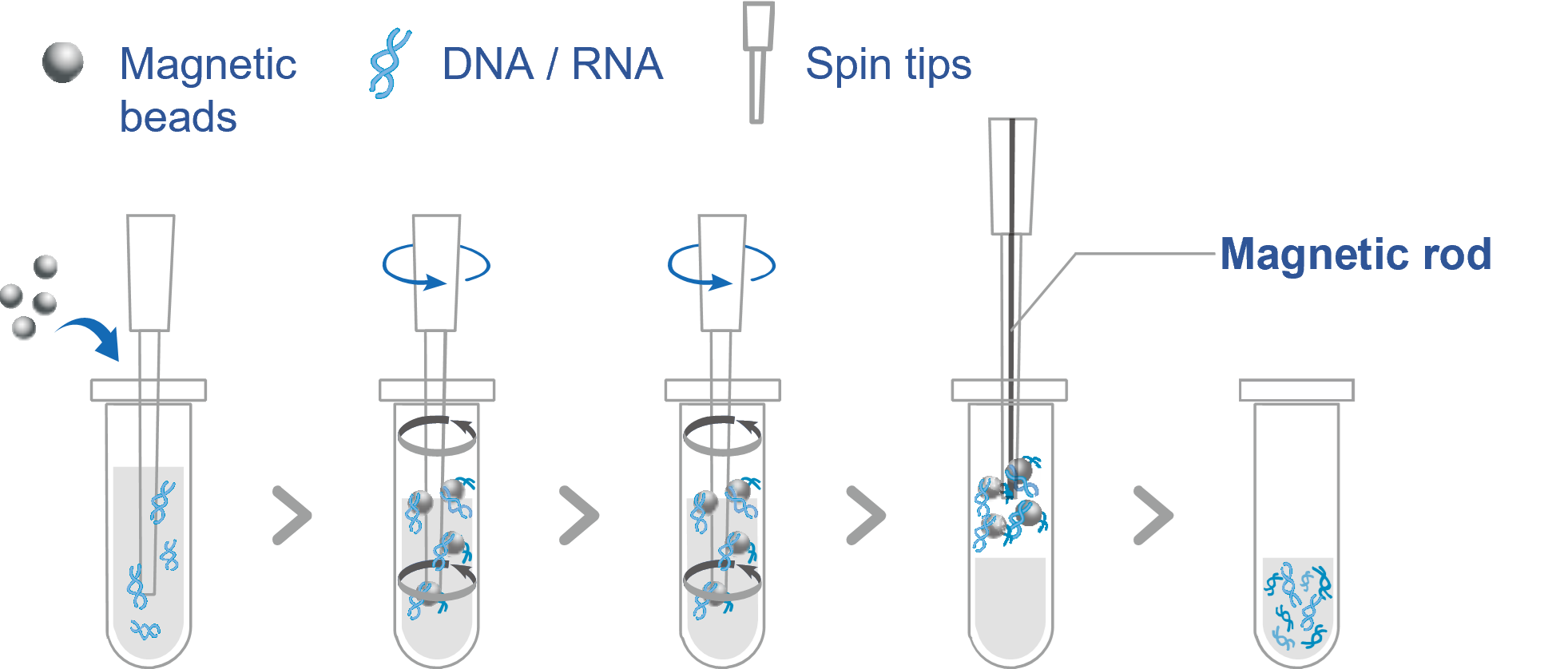

  • Utilises patented whirl stirring mixing technology which significantly reduces cross-contamination of adjacent wells compared to other mixing technologies
  • Fully automated to avoid human error and to ensure consistent quality
  • Can process up to 48 samples simultaneously
  • Ideal for applications in molecular diagnostics and life sciences
  • Extensive range of compatible magnetic bead-based reagent kits available (please see More Information below for details)
  • CV of nucleic acid extraction concentration is <5%
  • Processing volume of up to 1600 µL
  • Spin tips stir magnetic beads at speeds up to 3000 rpm and magnetic induction of >3900 Gauss

Description

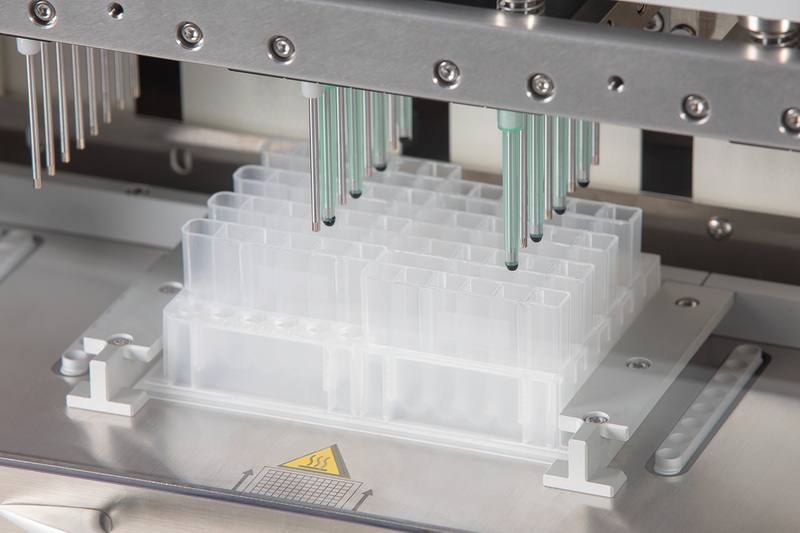

The Maelstrom™ 4810 is a powerful high throughput nucleic acid extraction system designed to process up to 48 samples simultaneously. The instrument utilises specialised spin tips and rods with a magnetic induction of >3900 Gauss to efficiently mix and collect magnetic beads to extract nucleic acid from an extensive range of sample types.

The Maelstrom™ 4810 features a novel spin methodology rather than the vertical mixing technology used in other extraction systems. This approach significantly reduces the risk of cross-contamination between adjacent wells.



The Maelstrom™ 4810 can process samples ranging from 50 µL to 1600 µL and features 12 independent heating blocks. Simple menu navigation and an intuitive user interface allows for easy end-user parameter selection.



More Information

Please click here to download a brochure describing the TANBead Maelstrom™ 4810 fully automated nucleic acid extraction system. A brochure listing our range of compatible pathogen extraction kits and consumables can be downloaded here. Please click here to view a video of the Maelstrom 4810 in operation.

Maelstrom products are FDA and CE approved.

Specifications

Manufacturer
Taiwan Advance Nanotech Inc. (TANBead)
Model number
Maelstrom™ 4810
Samples per run
Up to 48
Processing volume
50 µL to 1600 µL
Magnetic rod
>3900 Gauss
Spin speed
Up to 3000 rpm
Display
180 mm touchscreen
UV
UV-C type:  8 W
Heater
12 independent heating blocks
Weight
45 Kg
Dimensions (W x D x H)
580 mm x 430 mm x 470 mm
Power requirements
220 VAC: 50 Hz
