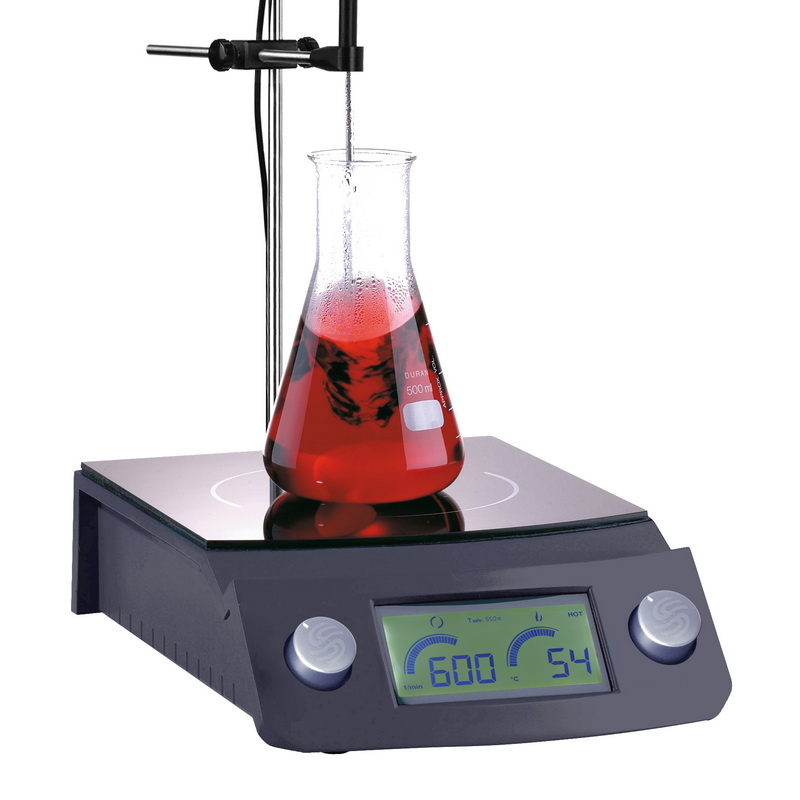

285416398.01 | Infrared hot plate with glass ceramic plate and PT100 temperature sensor connection (SLK2-T)

Key Features

• Smooth and corrosion-resistant glass ceramic top plate
• Hermetically-sealed instrument casing made of non-flammable Duroplastic
• High efficiency transmission of infrared light
• Maximum hot plate temperature of 550ºC
• 24-step temperature regulator
• Rapid heating and excellent temperature stability
• Large LCD screen displays the set and actual temperature
• Timer function
• High-temperature indicator to prevent end-user burns
• External PT100 temperature sensor connection for direct and precise control of the actual temperature (PT100 sensor included with purchase)

Description

The Wiggens SLK2-T hot plate uses advanced infrared heating technology to rapidly and accurately heat solutions with volumes up to 25 litres (water). The instrument can heat 1 litre of water to boiling point in 7 minutes and has a connection for an external PT100 temperature sensor for increased temperature accuracy.

The SLK2-T has a corrosion-resistant casing made of Duroplastic that can resist a thermal shock up to 700ºC and is hermetically-sealed to prevent fluid leakage into the electronics compartment.

The unit features a corrosion-resistant, easy-to-clean glass ceramic hot plate that can be heated to 550ºC via a 24-step temperature regulator. It also has an LCD screen, a timer function and a high temperature indicator to provide operator safety while in use.

More Information

The following items are included with the purchase of the SLK2-T:

Part Number	Product Description
285416398	SLK2-T infrared hot plate
PT100-01	PT100 temperature sensor (Type 1) Length: 170 mm Diameter: 4 mm Material: Stainless steel Operating range: -30 to +300°C
PT100-05	Holder and clamp for PT100 temperature sensor

Optional Accessories

Part Number	Product Description
PT100-02	PT100 temperature sensor, Type II Length: 300 mm Material: Stainless steel Operating range: -30 to ~+300°C
PT100-03	PT100 temperature sensor, Type III Length: 170 mm Material: Stainless steel, PTFE-coated Operating range: -30 to ~+250°C
PT100-04	PT100 temperature sensor, Type IV Length: 300 mm Material: Stainless steel, PTFE coated Operating range: -30 to ~+250°C
PT100-06	PT100 temperature Sensor, Type VI Length: 250 mm Diameter: 4 mm Material: Glass Temperature range: -30ºC ~+300°C

Specifications

Manufacturer	Wiggens
Model No	SLK2-T
Display mode	LCD
Heating power	1.8 kW
Maximum hot plate temperature	550ºC
Top plate area (W x L)	285 mm x 285 mm
Heating zone (∅)	155 mm
Top plate material	Glass ceramic
Dimensions (L x W x H)	395 mm x 295 mm x 110 mm
Maximum stirring capacity (water)	25 litres
Operating range	10ºC - 40ºC
Maximum humidity	85%
Power	220 V: 50 Hz
Weight	3.6 Kg
